Bankruptcy Auction - Former Schulte & Schmidt: Aluminium Die Casting, Foundry & High-Speed CNC Machining Centres

Tool magazine: Yes, 14 tools capacity, 25 kg load; KG: 1800; Table: 800 x 300 mm; X axis: 700 mm; Y axis: 360 mm; Z axis: 270 mm; Table load: 150 kg; Spindle taper: MAS-BT30; Retention knob: MAS-P30T-2 (30 degrees); Spindle speed: 10,000 rpm; Spindle motor: 7.0 kVA; Tool change time: 1.8 sec (chip to chip); Maximum tool diameter: 80 mm; Rapid traverse: 36 m/min (1417 ipm) in X and Y, and 50 m/min (1968 ipm) in Z; Approximate floor space: 2700 x 2000 mm; Limitation of tool balance: 100 grams at 14 tools with a 25 kg weight; Limitation of spindle rotation speed: 10,000 min⁻¹; Controller: Brother A-00; one axis is not working; Control panel indicated hours, read on 11/09/2026: Running time 39,679 hrs, Power-on time 83,594 hrs. (Machine internal clock not synchronised — shows 10/10/2024.)

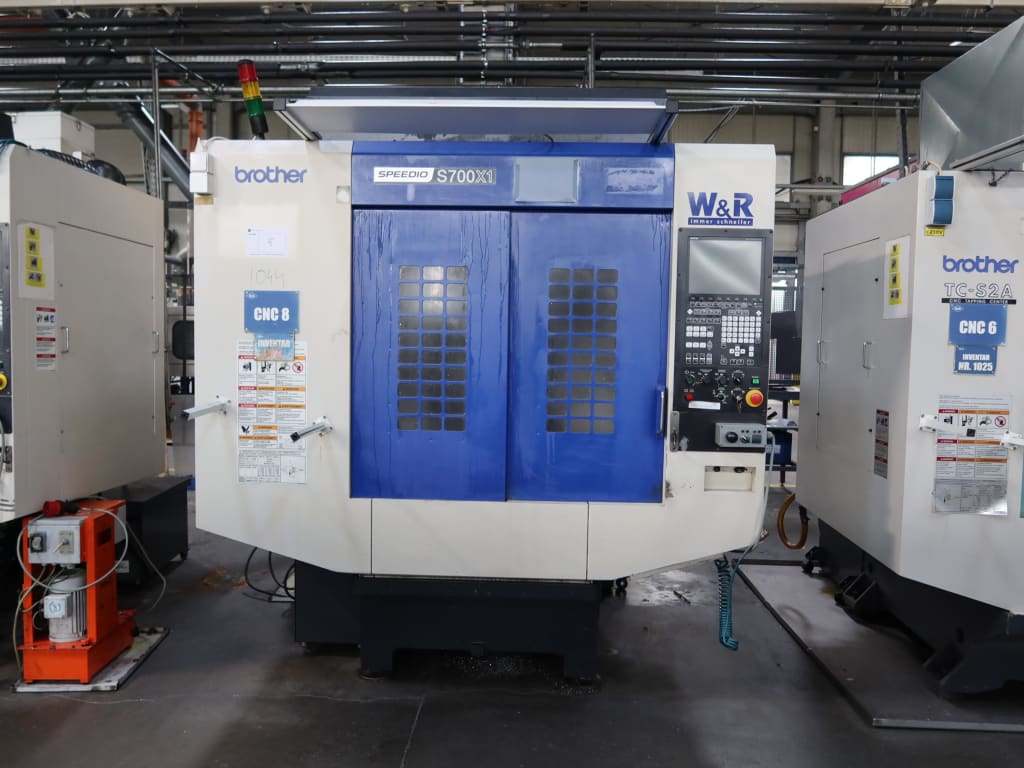

X axis: 700 mm; Y axis: 400 mm; Z axis: 300 mm; Spindle speed: 10,000 rpm; Spindle taper: 7/24 No. 30; Tool shank: MAS-BT30; Retention knob: MAS-P30T-2 (30 degrees); Tool magazine: 21-tool carousel with a total capacity of 35 kg; Spindle motor: 6.7 kW; Tool change time: 1.4 seconds (cut-to-cut); Rapid traverse (X, Y, Z): 50 m/min (1,969 IPM); Table size: 800 x 400 mm; Maximum table load: 250 kg; CNC: B00; lot includes emulsion mist separator SARA UC 1SD; inclined filtering chip conveyor LNS Turbo MS 500; the fixing device seen in the picture; the lot does NOT include the external hydraulic unit marked as inventory number 2049; Machine control indicated readings (09/06/2026): Total operation time 33,570 hrs, Power-on time 59,505 hrs.

X axis: 700 mm; Y axis: 400 mm; Z axis: 300 mm; Spindle speed: 10,000 rpm; Spindle taper: 7/24 No. 30; Tool shank: MAS-BT30; Retention knob: MAS-P30T-2 (30 degrees); Tool magazine: 21-tool carousel with a total load of 35 kg; Spindle motor: 6.7 kW; Tool change time: 1.4 seconds (cut-to-cut); Rapid traverse (X, Y, Z): 50 m/min (1,969 IPM); Table size: 800 x 400 mm; Maximum table load: 250 kg; CNC: B00; included in the lot are the inclined filtering chip conveyor LNS Turbo MS250; UPS Nomura Trading type ADSG 5,0; special hydraulic fixing table as seen in the picture; external hydraulic unit AMF

X axis: 700 mm; Y axis: 400 mm; Z axis: 300 mm; Spindle speed: 10,000 rpm; Spindle taper: 7/24 No. 30; Tool shank: MAS-BT30; Retention knob: MAS-P30T-2 (30 degrees); Tool magazine: 14-tool carousel with a total capacity of 25 kg; Spindle motor: 6.7 kW; Tool change time: 1.4 seconds (cut-to-cut); Rapid traverse (X, Y, Z): 50 m/min (1,969 IPM); Table size: 800 x 400 mm; Maximum table load: 250 kg; CNC: B00; included in the lot are the inclined filtering chip conveyor LNS Turbo MS500; the emulsion mist separator SARA UC 1SD; the UPS Nomura Trading type ADSG 5,0; the hydraulic fixing table; external hydraulic unit; Machine control indicated readings, recorded 09/06/2026: Total operation time 31,770 hrs, Power-on time 66,191 hrs. Spindle taper: 7/24 No. 30 (BT30).

X axis: 700 mm; Y axis: 400 mm; Z axis: 300 mm; Table size: 800 x 400 mm; Table load capacity: 250 kg; Tool change time: 0.8 sec (tool-to-tool); Spindle taper: 7/24 No. 30; Tool shank: MAS-BT; Retention knob: MAS-P30T-2 (30 degrees); Tool changer: 21-tool carousel with a total load capacity of 35 kg; Limitation of tool balance: 50 g; Limitation of spindle rotation speed: 16,000 rpm; Spindle motor: 4.9 kW; Rapid traverse rates: X = 50 m/min, Y = 50 m/min, Z = 56 m/min; CNC control: CNC-C00; included are the external hydraulic unit AMF; Machine control indicated readings, recorded 09/06/2026: Total operation time 32,210 hrs, Power-on time 57,114 hrs. Spindle taper: 7/24 No. 30 (BT30). (Machine internal clock not synchronised — displays 2002/01/01.)

X axis: 700 mm; Y axis: 400 mm; Z axis: 300 mm; Table size: 1150 x 400 mm; Table load capacity: 250 kg; Tool change time: 0.8 sec (tool-to-tool); Spindle taper: 7/24 No. 30; Tool shank: MAS-BT; Retention knob: MAS-P30T-2 (30 degrees); Tool changer: 21-tool carousel with a total load capacity of 35 kg; Limitation of tool balance: 100 g; Limitation of spindle rotation speed: 10,000 rpm; Spindle motor: 4.9 kW; Rapid traverse rates: X = 50 m/min, Y = 50 m/min, Z = 56 m/min; CNC control: CNC-C00; the lot includes the inclined filtering chip conveyor LNS Turbo MS 500; the external hydraulic unit AMF; one UPS Nomura Trading type ADSG 5,0; the hydraulic fixing table; broken tool detector Renishaw; emulsion mist separator SARA UC 1 SD;

X axis: 700 mm; Y axis: 400 mm; Z axis: 300 mm; Table size: 800 x 400 mm; Table load capacity: 250 kg; Tool change time: 0.8 sec (tool-to-tool); Spindle taper: 7/24 No. 30; Tool shank: MAS-BT; Retention knob: MAS-P30T-2 (30 degrees); Tool changer: 21-tool carousel with a total load capacity of 35 kg; Limitation of tool balance: 50 g; Limitation of spindle rotation speed: 16,000 rpm; Spindle motor: 4.9 kW; Rapid traverse rates: X = 50 m/min, Y = 50 m/min, Z = 56 m/min; CNC control: CNC-C00; the machine is equipped wit a Renishaw broken tool detector

Max spindle speed: 10,000 RPM; Max torque: 92 Nm (compared to 40 Nm on the standard 10k RPM spindle); Max output power: 26.2 kW; Spindle motor: 8.8 kW; Spindle taper: 7/24 No. 30; Tool shank: MAS-BT; Retention knob: MAS-P30T-2 (30 degrees); Tool magazine: 22-tool carousel with a capacity of 40 kg; X axis: 650 mm; Y axis: 400 mm; Z axis: 305 mm; Maximum table load: 200 kg per pallet; Rapid traverse rate (X, Y, Z): 50 × 50 × 50 m/min (1,969 IPM); Chip-to-chip time: 1.3 to 1.7 seconds (depending on magazine configuration); Pallet change time: approx. 3.4 sec; Controller: CNC-C00; inclined filtering chip conveyor LNS Turbo MS500; UPS Nomura Trading type ADSG 5,0; hydraulic fixing tables; external hydraulic unit; Renishaw optical probe receiver and broken-tool / tool-setting detection unit fitted inside enclosure; Machine control indicated readings, recorded 09/06/2026: Total operation time 18,772 hrs, Power-on time 40,144 hrs. Twin-pallet machine (Pallet 1 / Pallet 2). Spindle taper: 7/24 No. 30 (BT30). (Machine internal clock not synchronised — displays 2011/04/01.)

X axis: 700 mm; Y axis: 400 mm; Z axis: 300 mm; Table size: 800 x 400 mm; Table load capacity: 250 kg; Tool change time: 0.8 sec (tool-to-tool); Spindle taper: 7/24 No. 30; Tool shank: MAS-BT; Retention knob: MAS-P30T-2 (30 degrees); Tool changer: 21-tool carousel with a total load capacity of 35 kg; Limitation of tool balance: 50 g; Limitation of spindle rotation speed: 16,000 rpm; Spindle motor: 4.9 kW; Rapid traverse rates: X = 50 m/min, Y = 50 m/min, Z = 56 m/min; CNC control: CNC-C00; inclined filtering chip conveyor LNS Turbo MS 500; emulsion mist separator SARA UC 1 SD; hydraulic fixing table; external hydraulic unit

X axis: 700 mm; Y axis: 400 mm; Z axis: 300 mm; Table size: 1150 x 400 mm; Table load capacity: 250 kg; Tool change time: 0.8 sec (tool-to-tool); Spindle taper: 7/24 No. 30 (Big-Plus) Dual Contact; Tool shank: MAS-BT / BBT30; Retention knob: MAS-P30T-2 (30 degrees); Tool changer: 21-tool carousel with a total load capacity of 35 kg; Limitation of tool balance: 50 g; Limitation of spindle rotation speed: 16,000 rpm; Spindle motor: 4.9 kW; Rapid traverse rates: X = 50 m/min, Y = 50 m/min, Z = 56 m/min; CNC control: CNC-C00; included hydraulic fixing table; Renishaw broken tool detector, UPS, HAKUSAN chip conveyor, emulsion mist separator SARA UC 1 SD; Machine control indicated readings, recorded 09/06/2026: Total operation time 17,822 hrs, Power-on time 33,212 hrs. Spindle taper: 7/24 No. 30 (BT30). (Machine internal clock not synchronised — displays 2011/04/01); NOT included os the external hydraulic unit

Travel X-Axis: 550 mm; Y-Axis: 400 mm; Z-Axis: 400 mm; Maximum speed: 42.000 RPM; Spindle Taper: HSK-E40; Spindle Power: 15 kW; Rotary/Tilt Table: Integrated B-axis (tilting from -120° to +60°) and C-axis (360°); Table size: 650 mm x 500 mm; Maximum table load: 500 kg (with pallet); Tool Magazine: 32-position ATC (automatic tool changer); Tool Taper: HSK-E40

X-Axis: 600 mm; Y-Axis: 400 mm; Z-Axis: 310; Maximum Workpiece Dimensions 1050 x 820 x 305 mm; Maximum Workpiece Weight: 1500 kg; Wire Diameter: 0.1 to 0.3 mm; Maximum Taper Angle: ± 15°; Wire Spool Capacity: 20 kg; Air Source: 0.5 MPa, 75 l/min; Table dimensions: 840 mm x 640 mm; Table type: U-shaped hardened table; Dielectric fluid reservoir tank capacity: 860 l; Water purifier (ion exchange resin): 10 L;

X axis: 480 mm; Y axis: 360 mm; Z axis: 270 mm; Table size: 600 x 300 mm; Maximum table load: 150 kg; Machine approximate weight: 1800–1850 kg; Spindle: MAS-BT30; Retention knob: MAS-P30T-2 (30 degrees); Tool magazine: 14 tools carousel; Maximum spindle rotation: 10,000 rpm; Spindle taper: 7/24 No. 30; Total capacity in magazine: 14 tools at 25 kg load; Limitation of tool balance: 100 g; Limitation of spindle rotation speed: 10,000 rpm; Spindle motor: 7.3 kW; Tool change time: ultra-fast, between 1.8 sec chip to chip and 1.1 sec tool to tool; Rapid traverse (X/Y/Z): 36 × 36 × 50 m/min; Controller: Brother A-00; Machine control indicated readings, recorded 09/06/2026: Operation time 7,246 hrs (Power-on and Running time not legible — display degraded). Spindle taper: 7/24 No. 30 (BT30). (Machine internal clock not synchronised — displays 2025/02/08.)

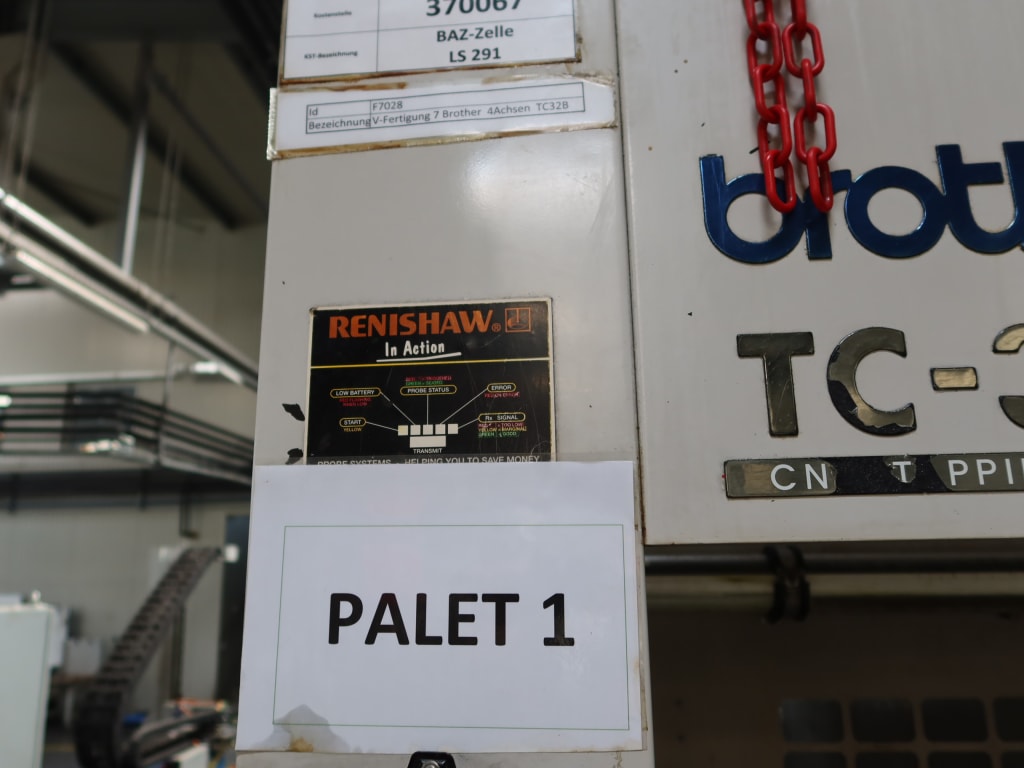

Equipped with twin pallet system; Inv. Nr: 1084; Serial number: 121352; X axis: 550 mm; Y axis: 400 mm; Z axis: 415 mm; Table size: 600 x 425 mm (twin-pallet); Number of pallets: 2 (180-degree rotation index); Maximum pallet weight: 200 kg; Spindle speed: 16,000 rpm; Tool magazine: 26-tool carousel with a maximum load of 55 kg; Spindle taper: 7/24 No. 30; Tool shank: MAS-BT30; Retention knob: MAS-P30T-2 (30 degrees); Limitation of tool balance: 50 g; Limitation spindle rotation speed: 16,000 rpm; Tool-to-tool change time: 0.9 sec; Chip-to-chip time: 2.1 sec; Rapid traverse rate: 70 m/min (2,755 IPM) across X, Y, Z axes; Control unit: CNC B00; Spindle Motor: 7.3 kW

Equipped with dual-pallet changer; Inv. Nr: 1085; Serial number: 111725; X axis: 550 mm; Y axis: 400 mm; Z axis: 415 mm; Spindle speed: 12,000 rpm; Tool magazine: 26-tool carousel with a maximum load of 55 kg; Spindle taper: 1/10; Tool shank: HSK-A40; Rapid traverse rate: 70 m/min (2,756 IPM) on all axes; Tool change time: 0.9 sec (tool-to-tool); Table size / pallets: 600 x 425 mm (dual pallet change, 180 degrees, rotary); Maximum workpiece weight: 200 kg per pallet; CNC controller: B00; Spindle Motor: 6.0 kW; Spindle Speed: 12.000 RPM; Maximum Cutting Feed Rate: 20/min (787 IPM)

Serial number: TS2510341; Load capacity: 3.500 kg; Empty Weight: 4.580 kg; Max. Speed: up to 19 KM/H; Fuel: Diesel; Fuel tank capacity: 70 L; Lifting height: 3000 mm; Fork size: 1070 mm x 125 mm x 50 mm; Load Center: 500 mm; Lifting Speed (Loaded / Unloaded): 400/420 mm/s; Engine power: 35.4 kW; indicated hours 2914

Serial number: H2X391J02229; Rated Capacity: 1800 Kg; Load Center: 500 mm; Maximum Lift height: 5.220 mm; Travel Speed: up to 20 KM/H; Rated Drive Power: 28 kW; Displacement: 1.98 l; No. of Cylinders: 4; External gas tank is NOT included

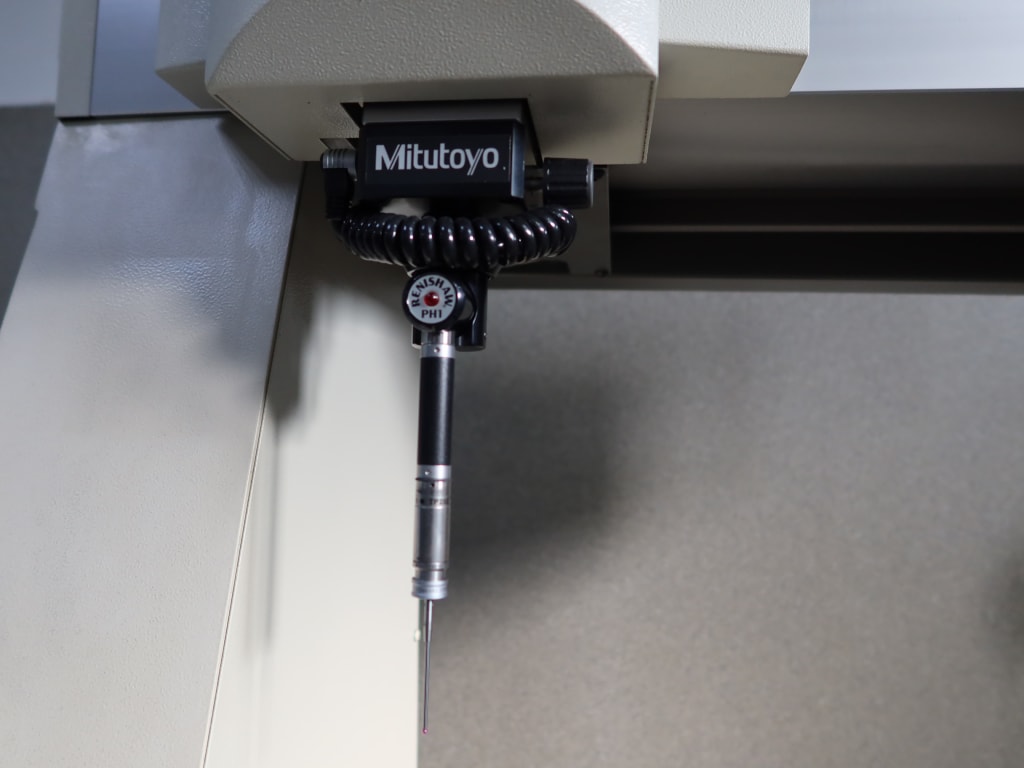

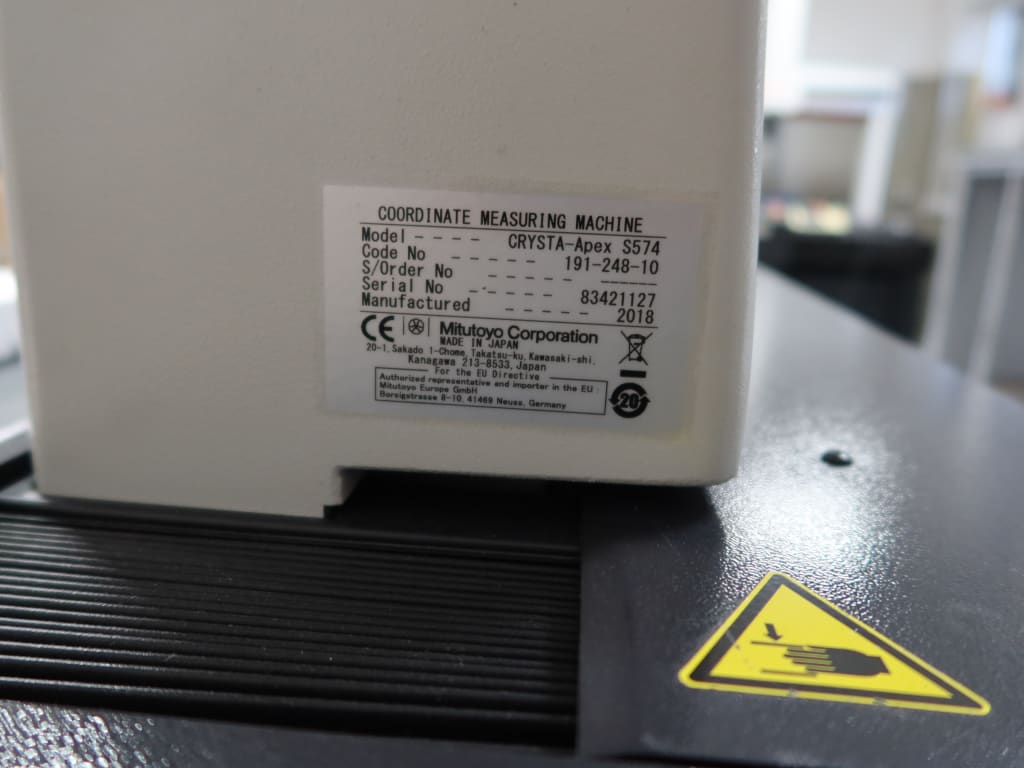

Serial Number: 83421127; Measuring Range: 500 mm x 700 mm x 400 mm (X, Y, Z); Maximum Workpiece Height: 545 mm; Maximum Workpiece Weight: 180 kg; Maximum Drive Speed: Up to 519 mm/s; Maximum Acceleration: Up to 2.309 mm/s2 (combined axes); Resolution: 0.0001 mm (0.1 µm); Guideway Method: Precision air bearings on all axes; Maximum Drive Speed: 519 mm/s; Maximum Measuring Speed: 8 mm/s; Maximum Permissible error (ISO 10360-2): E0, M PE = (1.7 +3L/1000) µm; Table Material: High-rigidity granite; all needed documents will be provided in order to restart the machine

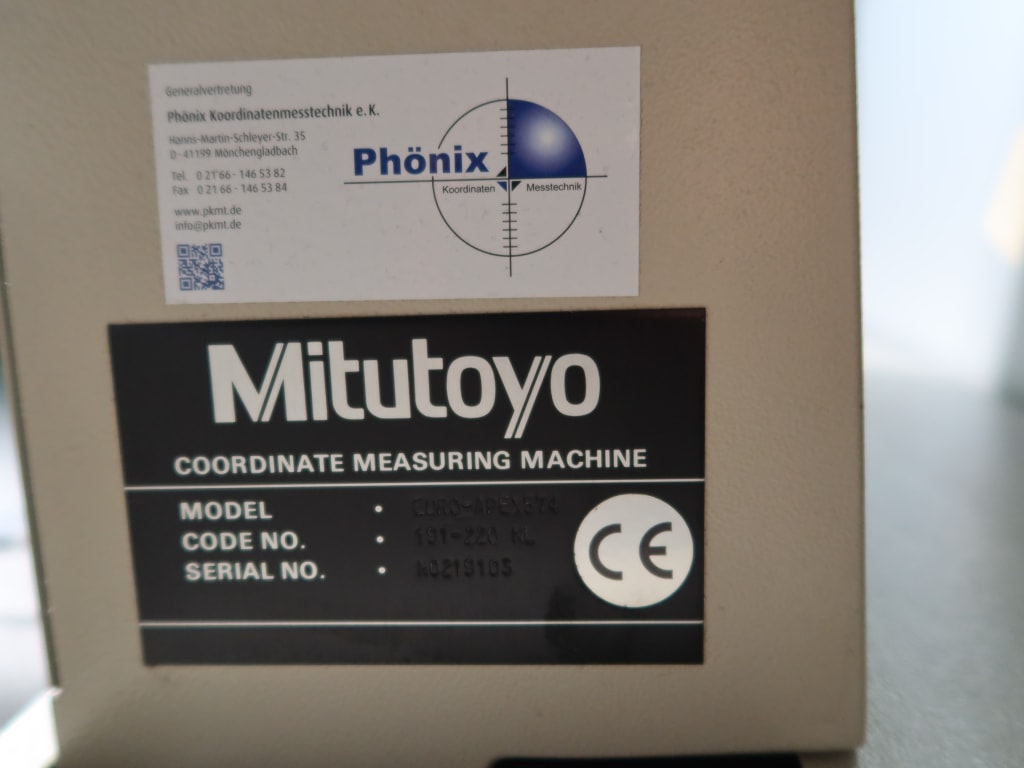

Serial number: N0219105; Measuring Range: 500 mm x 700 mm x 400 mm (X x Y x Z); Maximum Workpiece Height: ~ 545 mm; Maximum Workpiece Weight: 180 kg; Maximum Drive/Measuring Speed: Up to 519 mm/s (3D); Resolution: 0.0001 mm (0.1 μm); all needed documents will be provided in order to restart the machine

Serial number: 80461121; Measuring range (X x Y x Z): 500 mm x 700 mm x 400 mm; Table size: 1160 mm L x 638 mm W; Maximum Workpiece Height: 180 kg; Maximum Workpiece Height: 545 mm; Drive Speed: Up to 520 mm/s; Acceleration: 0.17 G (1,667 mm/s²); Linear Encoder Resolution: 0.1 μm (0.0001 mm); Accuracy: MPE (Maximum Permissible Error) typically ranges from E₀ = (1.7 + 3L/1000) μm; all needed documents will be provided in order to restart the machine

Measuring Range (X x Y x Z): 500 mm x 700 mm x 400 mm; Resolution: 0.0005 mm (0.00002 inches); Accuracy formula: E=(3.5+4l/1000)um; Table Material: High-rigidity Granite; Table size: 1175 mm x 764 mm; Maximum Workpiece Height: 590 mm; all needed documents will be provided in order to restart the machine

Measuring Range (X x Y x Z): 500 mm x 700 mm x 400 mm; Maximum Workpiece Height: 545 mm; Maximum Table Load: 180 kg; Volumetric Accuracy (E0,MPE): From (1.7 + 0.3L / 100) μm (where L is the measured length in mm); Max. Drive Speed: 519 mm/s (all 3 axes combined); Max. Acceleration: 2,309 mm/s² (all 3 axes combined); Measuring Speed: Up to 120 mm/s; all needed documents will be provided in order to restart the machine

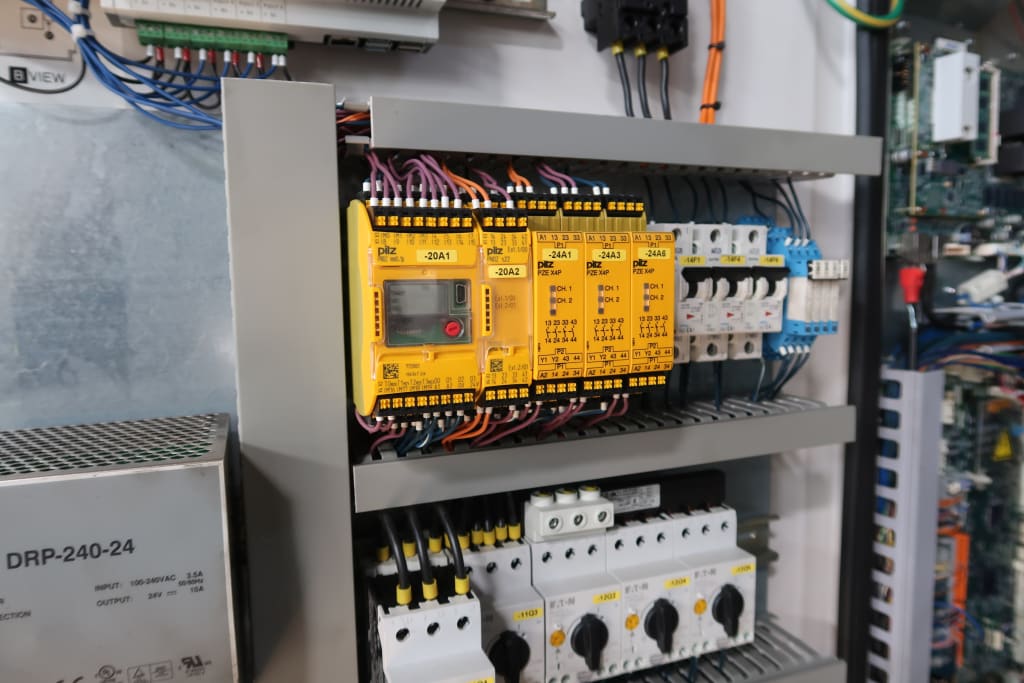

Serial number: 111625; Max spindle speed: 10,000 RPM High Torque; Max torque: 92 Nm (compared to 40 Nm on the standard 10k RPM spindle); Max output power: 26.2 kW; Spindle motor: 8.8 kW; Spindle taper: 7/24 No. 30 (BIG-PLUS); Tool shank: MAS-BT / BBT30; Retention knob: MAS-P30T-2 (30 degrees); Tool magazine: 22-tool carousel with a capacity of 40 kg; X axis: 650 mm; Y axis: 400 mm; Z axis: 305 mm; Maximum table load: 200 kg per pallet; Rapid traverse rate (X, Y, Z): 50 × 50 × 50 m/min (1,969 IPM); Chip-to-chip time: 1.3 to 1.7 seconds (depending on magazine configuration); Pallet change time: approx. 3.4 sec; Controller: CNC-C00; included are the UPS, the hydraulic fixing tables; the Renishaw broken tool detector, chip conveyor LEHMANN type KF84; NOT included is the external hydraulic unit; Machine control indicated readings, recorded 09/06/2026: Total operation time 15,021 hrs, Power-on time 34,210 hrs. Twin-pallet machine (Pallet 1 / Pallet 2). Spindle taper: 7/24 No. 30 (BT30). (Machine internal clock not synchronised — displays 2011/04/01.)

Max spindle speed: 10,000 RPM; Max torque: 92 Nm (compared to 40 Nm on the standard 10k RPM spindle); Max output power: 26.2 kW; Spindle motor: 8.8 kW; Spindle taper: 7/24 No. 30 (BIG-PLUS) BT Dual Contact; Tool shank: MAS-BT / BBT30; Retention knob: MAS-P30T-2 (30 degrees); Tool magazine: 22-tool carousel with a capacity of 40 kg; X axis: 650 mm; Y axis: 400 mm; Z axis: 305 mm; Maximum table load: 200 kg per pallet; Rapid traverse rate (X, Y, Z): 50 × 50 × 50 m/min (1,969 IPM); Chip-to-chip time: 1.3 to 1.7 seconds (depending on magazine configuration); Pallet change time: approx. 3.4 sec; Controller: CNC-C00; includes inclined filtering chip conveyor LNS type Turbo MS500; UPS Nomura Trading type ADSG 5,0; hydraulic fixing tables; Renishaw optical probe receiver and broken-tool / tool-setting detection unit; the external hydraulic unit is NOT included; Machine control indicated readings, recorded 09/06/2026: Total operation time 15,021 hrs, Power-on time 34,210 hrs. Twin-pallet machine (Pallet 1 / Pallet 2). Spindle taper: 7/24 No. 30 (BT30). (Machine internal clock not synchronised — displays 2011/04/01.)

X axis: 700 mm; Y axis: 400 mm; Z axis: 300 mm; Table size: 1150 x 400 mm; Table load capacity: 250 kg ???; Tool change time: 0.8 sec (tool-to-tool); Spindle taper: 7/24 No. 30; Tool shank: MAS-BT; Retention knob: MAS-P30T-2 (30 degrees); Tool changer: 21-tool carousel with a total load capacity of 35 kg; Limitation of tool balance: 50 g; Limitation of spindle rotation speed: 16,000 rpm; Spindle motor: 4.9 kW; Rapid traverse rates: X = 50 m/min, Y = 50 m/min, Z = 56 m/min; CNC control: CNC-C00; emulsion mist separator SARA UC 1 SD; UPS Nomura Trading, hydraulic fixing tables; Renishaw optical probe receiver and broken-tool / tool-setting detection unit; the external hydraulic unit marked with inventory number 2089 is NOT included; Machine control indicated readings, recorded 09/06/2026: Total operation time 16,565 hrs, Power-on time 39,505 hrs. Twin-pallet machine (Pallet 1 / Pallet 2). Spindle taper: 7/24 No. 30 (BT30). (Machine internal clock not synchronised — displays 2011/04/01.)

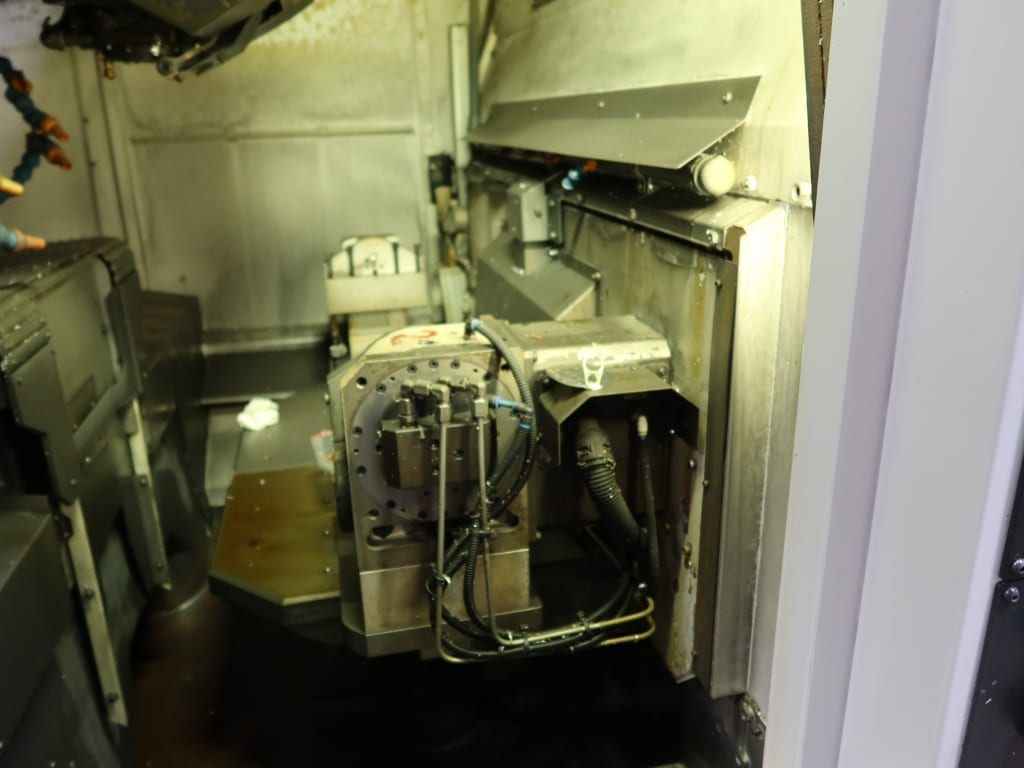

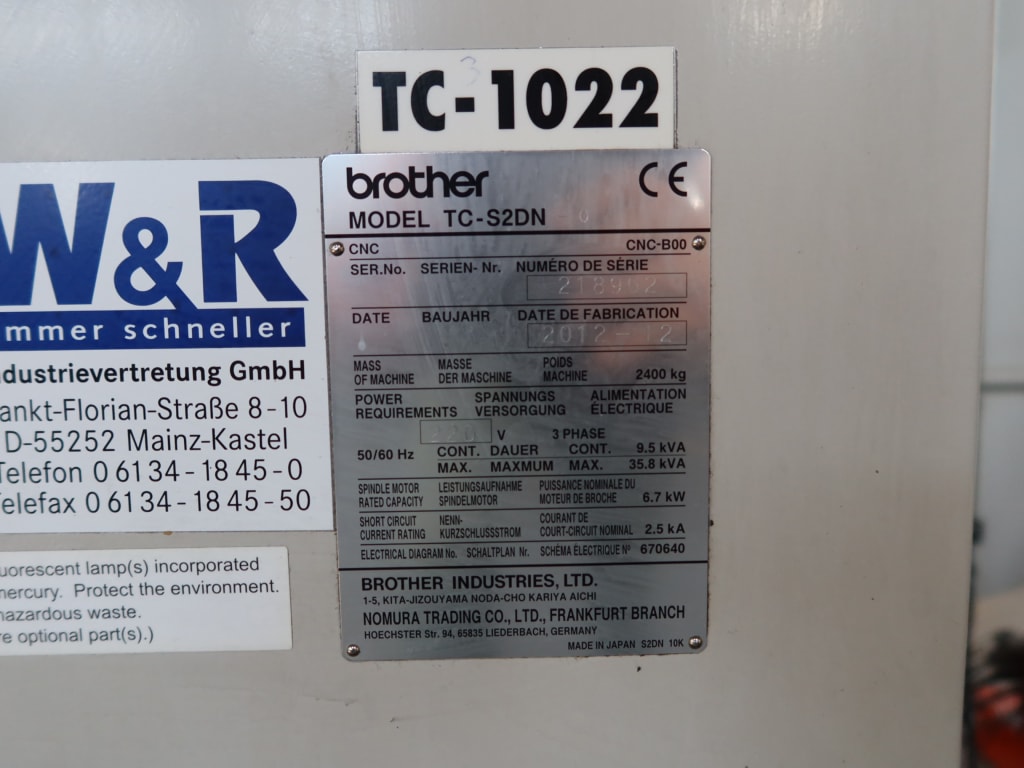

X axis: 500 mm; Y axis: 400 mm; Z axis: 300 mm; CNC type: B00; Table: 600 x 400 mm with modifications – to be clarified; Maximum load: 250 kg; Spindle taper: 7/24 No. 30; Tool shank: MAS-BT30; Retention knob: MAS-P30T-2 (30 degrees); Spindle standard speed: 10,000 rpm; Spindle motor: 4.9 kW; Rapid traverse rate (X/Y/Z): 50 m/min (1,969 IPM); Tool magazine: 21-tool carousel; Tool change time (tool-to-tool): 0.8 sec; Tool change time (chip-to-chip): 1.4 sec; UPS Brother 9.5 KVA; Renishaw broken tool detector;

Max spindle speed: 10,000 RPM High Torque; Max torque: 92 Nm (compared to 40 Nm on the standard 10k RPM spindle); Max output power: 26.2 kW; Spindle motor: 8.8 kW; Spindle taper: 7/24 No. 30 (BIG-PLUS) BT Dual Contact; Tool shank: MAS-BT / BBT30; Retention knob: MAS-P30T-2 (30 degrees); Tool magazine: 22-tool carousel with a capacity of 40 kg; X axis: 650 mm; Y axis: 400 mm; Z axis: 305 mm; Maximum table load: 200 kg per pallet; Rapid traverse rate (X, Y, Z): 50 × 50 × 50 m/min (1,969 IPM); Chip-to-chip time: 1.3 to 1.7 seconds (depending on magazine configuration); Pallet change time: approx. 3.4 sec; Controller: CNC-C00; the external hydraulic unit is NOT included; included are the hydraulic fixing tables, HAKUSAN chip conveyor, UPS,

X axis: 700 mm; Y axis: 400 mm; Z axis: 300 mm; Table size: 800 x 400 mm; Table load capacity: 250 kg; Tool change time: 0.8 sec (tool-to-tool); Spindle taper: 7/24 No. 30; Tool shank: MAS-BT; Retention knob: MAS-P30T-2 (30 degrees); Tool changer: 21-tool carousel with a total load capacity of 35 kg; Limitation of tool balance: 100 g; Limitation of spindle rotation speed: 10,000 rpm; Spindle motor: 4.9 kW; Rapid traverse rates: X = 50 m/min, Y = 50 m/min, Z = 56 m/min; CNC control: CNC-C00; lot includes emulsion mist separator SARA UC 1 SD; external hydraulic unit AMF, Hydraulic fixing table, Renishaw broken tool detector,

Briquette diameter aproximative 70mm;

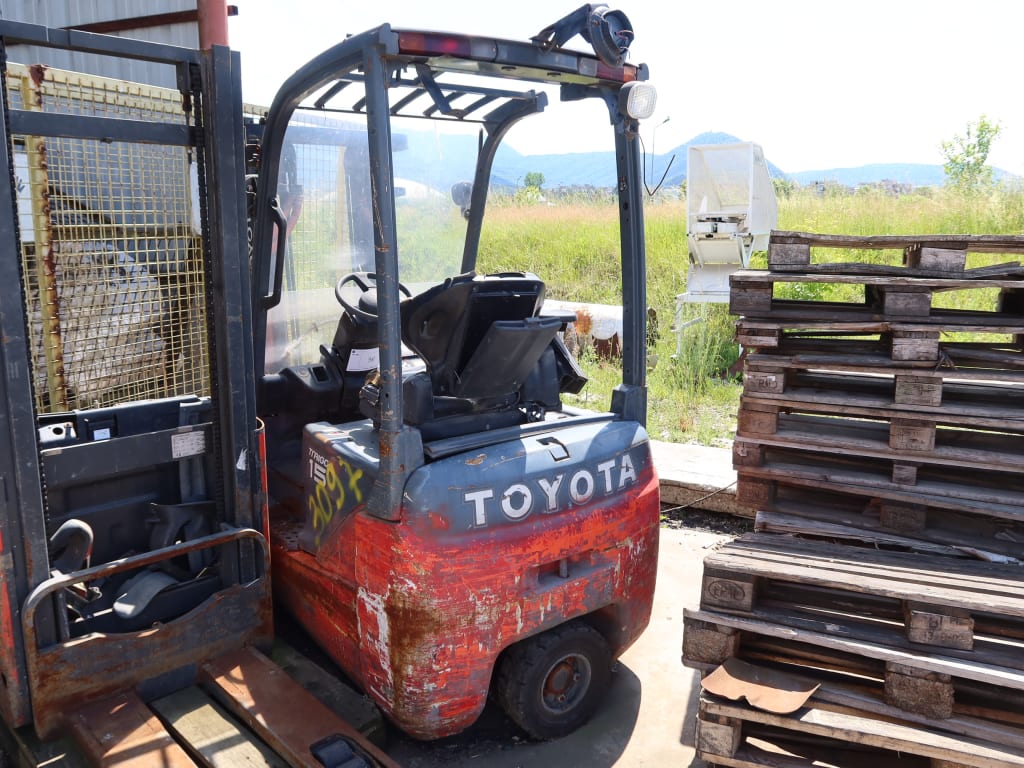

Load Capacity: 1500 kg; Maximum Lift Height: up to 7500 mm (depends on mast choice); battery: 48 volt; Does not function; For scrap;

The tent is composed of tarpaulin and metallic frames. No content is sold with the tent. Approximate footprint 33000 L x 10000 W mm; height of roof top 7400mm; it has 11 metallic frames

This lot consists of: Die Casting Machine Colosio PFO 750, Year 2018; Hydraulic Press ABK-CP35; Melting Oven: Hindenlang SWLE-750, Year 2013; Spraying Robot AED DAG 1000; Industrial Robot Kuka KR 60; Spraying Robot: AED DAG 1000, Hydraulic Press; Die Casting Machine Colosio PFO 560 GL; Command pannel PDC 11; Industrial Robot Kuka;

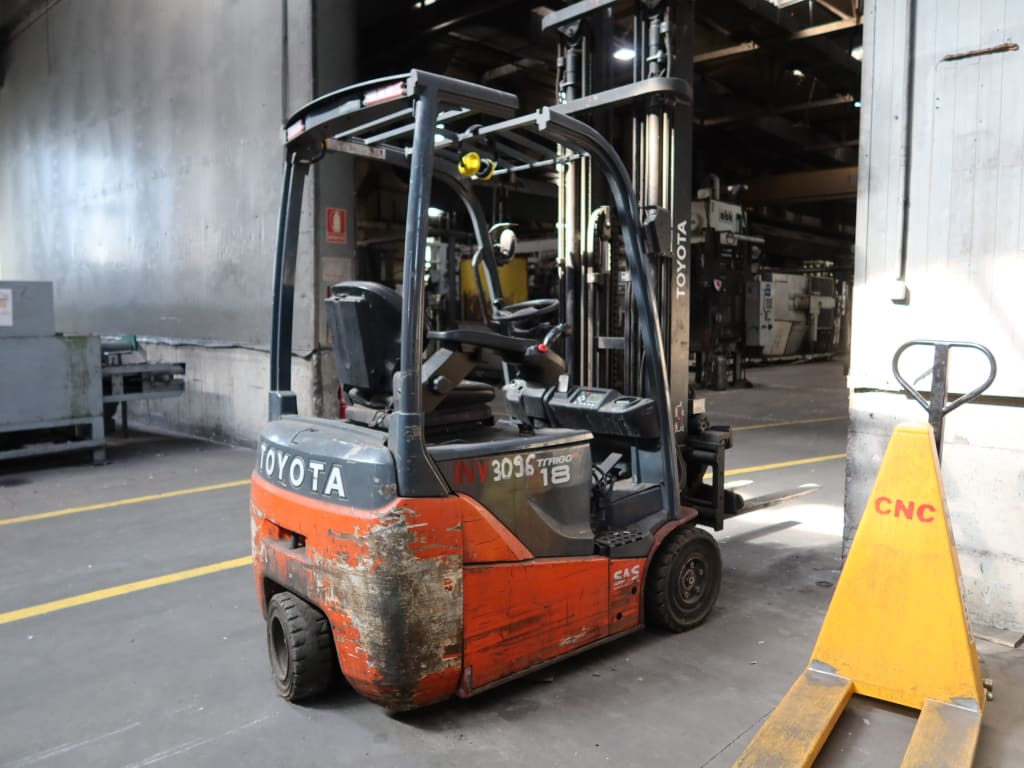

Load Capacity: 1800 kg; Load Center: 500 mm; Maximum Lift Height: Up to 7500 mm; Battery Voltage: 48 V; Length to fork face: 1772 mm up to 1880 mm (depending on the configuration); Does not function.

Power: 75 kW; Pressure: 10 bar

Flow Rate: 2.700 nominal volume in cubic meters per hour; Maximum pressure: 1.0 MPa / 10 bar; Air system circulation: Ts = -10....+60 degrees celsius; Ps = 10 bar; Refrigerant System Circuit: Ts = -10....+125 degrees celsius; Ps = 35 bar HP, Ps = 22 bar LP; Cooling Gas Used: R407 A / 17 kg

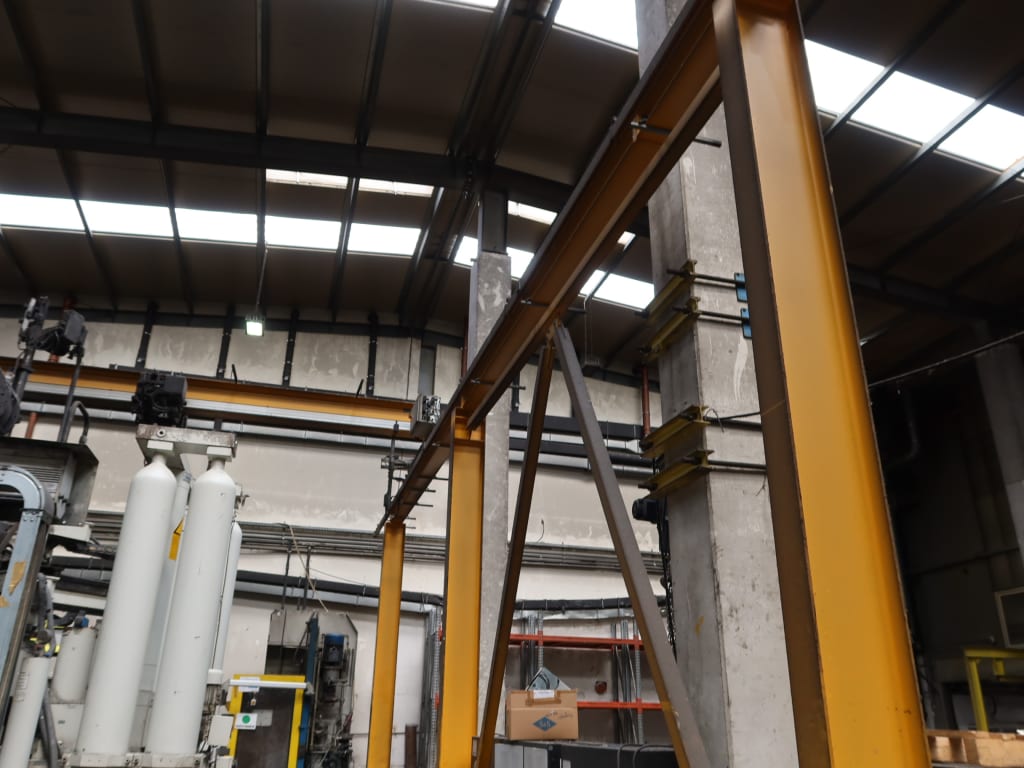

Overhead travelling crane, runway length 19m; span 10500mm; H=5400mm; The crane runway is supported by 5 pairs of I-shaped columns (365x170mm with g=11mm); max load 5 tons

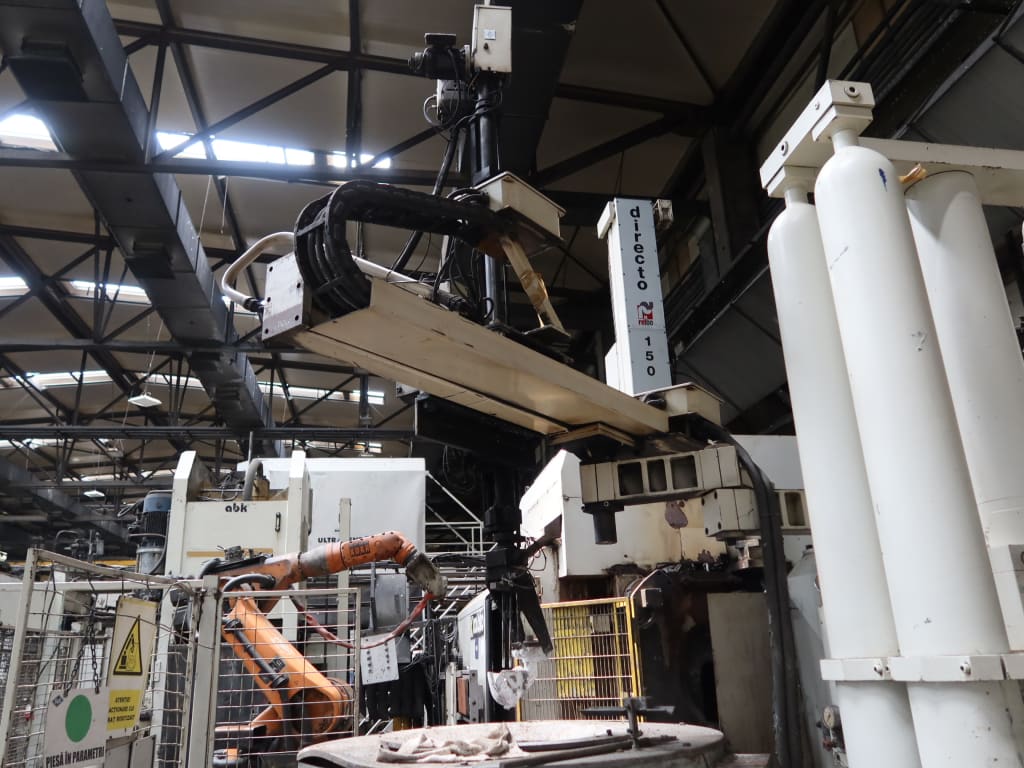

Line consisting of: A) Colosio PFO 560 GL; B) Kuka KR60- 3F Robot; C) ABK-CP35 Hydraulic Press; D) Ieci Cooling Tank; E) AED DAG 1000 Spray Robot; Does not contain: Hindenlang SWLE-750 Melting Furnace Inv. Nr: 4017; Does not contain: Granule Piston Inv Nr. 5001; A) Locking force: 580 ton; Opening force: 14.58 ton; Maximum injection force: 55.7 ton; Minimum injection force: 15.8 ton; Central ejection force: 27.1 ton; Backward central ejection force: 16.1 ton; Maximum movable platen stroke: 720 mm; Minimum movable platen stroke: 360 mm; Injection stroke: 500 mm; Central ejection stroke: 170 mm; Maximum die height: 850 mm; Minimum die height: 350 mm; Distance between tie bars: 715 mm; External platen dimensions: 1120 x 1148 mm; Tie bar diameter: 145 mm; Maximum projected area (400 kg/cm²): 1450 cm²; Maximum empty cycles: 8 cycles/min; Work pressure: 140 bar; Tank capacity: 1600 l; Number of injection positions / difference: 3 / -30, -80, -120, -150, -190, -240 mm; Maximum casting weight (Al): 9.2 kg; Minimum die dimensions: 470 x 470 mm; Machine dimensions (W x L x H): 2390 x 7614 x 3135 mm; Total machine weight (machine only): 24,600 kg; Nitrogen accumulator pre-charge pressure: 120 bar; Multiplier nitrogen accumulator pre-charge pressure: 130 bar; B) Payload: 60 kg; Maximum reach: 2033 mm; Number of axes: 6; Repeatability: ± 0.06 mm; Robot weight: approx. 665 kg; Mounting position: Floor; Controller: CR C4 with serial number 11038316 and command console; Axis 1 (J1): Motion range ± 185°, speed 128°/s; Axis 2 (J2): Motion range +35° / -135°, speed 102°/s; Axis 3 (J3): Motion range +158° / -120°, speed 128°/s; Axis 4 (J4): Motion range ± 350°, speed 260°/s; Axis 5 (J5): Motion range ± 119°, speed 245°/s; Axis 6 (J6): Motion range ± 350°, speed 322°/s; Controller type: KUKA KR C4. C) Pressing Force: 343 kN (nominal capacity of 35 metric tons); Controller Siemens; Overall height: 3400 mm; Base length: 1290 mm; Lower frame height: 950 mm; Tool center Height from Floor: Approx. 900 mm; Upper Opening Height Indicated: 600 mm; Overall Width: 1900 mm; Internal Opening Width: 1200 mm; Height to lower working level: 1150 mm; Upper Tool centering diameter: Ø50 mm D) Capacity: 1000 L; E) Machine type: 2-axis die spraying equipment (horizontal/vertical); Press Size Compatibility: 500 to 2000 Tons locking force; Vertical Stroke Range: 1200 mm to 2000 mm; Horizontal Stroke Range: 1000 mm to 2000 mm; Lubricant Control: Up to 2 proportional valves for varying mixtures; Operating Purpose: Cyclical treatment of die surfaces to cool, lubricate, and clean molds;

Sigma Profile Airend: A special screw-shaped part that squeezes air. It uses twisted screws to squeeze air using less power that normal; Motor power: 90 kW; Capacity (flow rate): 257 to 707 cmf (depending on the pressure variant); Working pressure: 80 to 217 psig; Controller: Sigma Control 2;

Line consisting of: A) Colosio PFO 600 REV; B) Kuka KR60- 3F Robot; C) ABK-CP35 Hydraulic Press; D) Ieci Cooling Tank; E) AED DAG 1000 Spray Robot; Does not contain: Hindenlang SWLE-750 Melting Furnace A) Nominal force: 675 T; Clamping force: 620 T; Press force: 60.7 T; Minimum injection force: 21.5 T; Central ejection force: 33 T; Maximum adjustment of moving mold plate: 700 mm; Minimum adjustment of moving mold plate: 450 mm; Stroke: 625 mm; Maximum mold height: 850 mm; Minimum mold height: 350 mm; Distance between columns: 720 x 720 mm; External dimensions of mold plates: 1120 x 1120 mm; Column diameter: 150 mm; Maximum pressure area (400 kg/cm²): 1150 cm²; Number of cycles at idle: 6 cycles/min; Pump motor power: 37 kW; Operating pressure: 140 bar; Tank capacity: 1500 l; Maximum piece weight (Al): 10.5 kg; Minimum mold dimensions: 520 x 520 mm; Total weight: 29.000 kg. B) Payload: 60 kg; Maximum reach: 2033 mm; Number of axes: 6; Repeatability: ± 0.06 mm; Robot weight: approx. 665 kg; Mounting position: Floor; Controller: CR C4 with serial number 11038316 and command console; Axis 1 (J1): Motion range ± 185°, speed 128°/s; Axis 2 (J2): Motion range +35° / -135°, speed 102°/s; Axis 3 (J3): Motion range +158° / -120°, speed 128°/s; Axis 4 (J4): Motion range ± 350°, speed 260°/s; Axis 5 (J5): Motion range ± 119°, speed 245°/s; Axis 6 (J6): Motion range ± 350°, speed 322°/s; Controller type: KUKA KR C4. C) Pressing Force: 343 kN (nominal capacity of 35 metric tons); Controller Siemens; D) Capacity: 1000 L E)

Composed of: A) Colosio PFO; B) Kuka Robot; C) Melting Furnace; D) ABK-CP35 Hydraulic Press; E) Quenching tank;

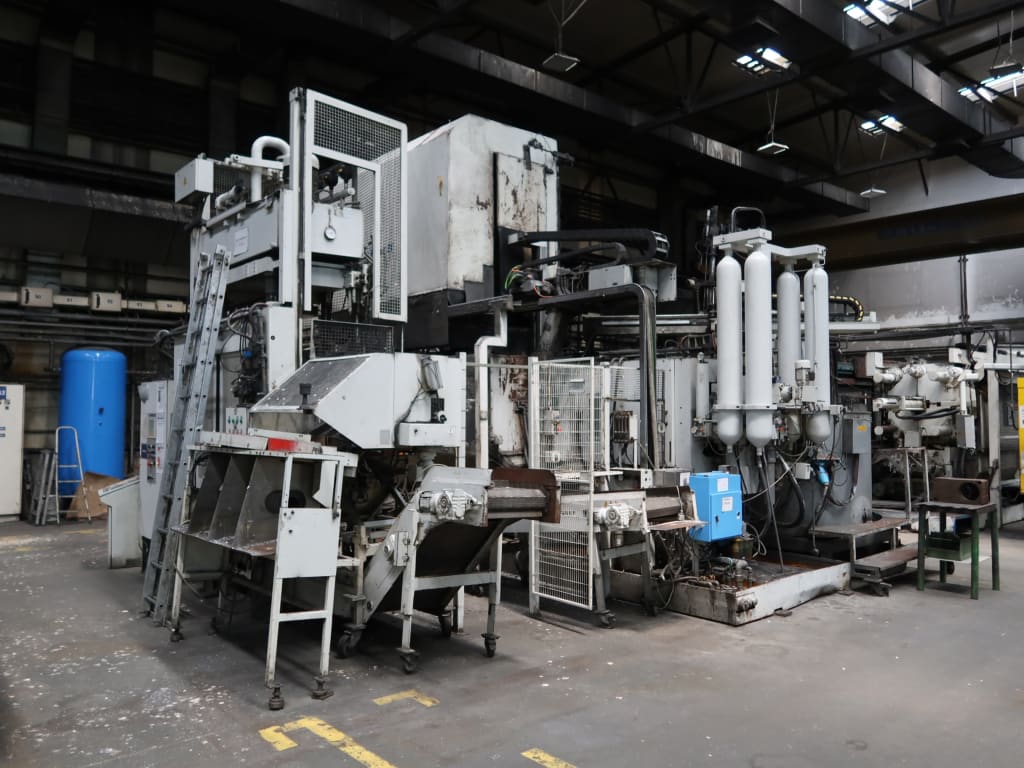

A) Colosio PFO 560; B) KMA Ultravent 2 Electrostatic Filter; C) Hindenlang SWLE 750 Melting Furnace; D) Kuka 6 - Axis Robot; E) Quenching Tank; F) Reis SEP 10-30 D III Trimming Press A) Locking force: 580 ton; Opening force: 14.58 ton; Maximum injection force: 55.7 ton; Minimum injection force: 15.8 ton; Central ejection force: 27.1 ton; Backward central ejection force: 16.1 ton; Maximum movable platen stroke: 720 mm; Minimum movable platen stroke: 360 mm; Injection stroke: 500 mm; Central ejection stroke: 170 mm; Maximum die height: 850 mm; Minimum die height: 350 mm; Distance between tie bars: 715 mm; External platen dimensions: 1120 x 1148 mm; Tie bar diameter: 145 mm; Maximum projected area (400 kg/cm²): 1450 cm²; Maximum empty cycles: 8 cycles/min; Work pressure: 140 bar; Tank capacity: 1600 l; Number of injection positions / difference: 3 / -30, -80, -120, -150, -190, -240 mm; Maximum casting weight (Al): 9.2 kg; Minimum die dimensions: 470 x 470 mm; Machine dimensions (W x L x H): 2390 x 7614 x 3135 mm; Total machine weight (machine only): 24,600 kg; Nitrogen accumulator pre-charge pressure: 120 bar; Multiplier nitrogen accumulator pre-charge pressure: 130 bar; B) 2 - Stage filtration system: Demister and Electrostatic Precipitator (ESP); Automatic Clean-in-Place (CIP) washing system; C) Maximum Temperature: 760 Degrees Celsius; Power: 49.5 kW; Capacity: 750 kg D) 6 Axis E) 1000 L F) Pressing force: 300 kN; Design: 3 bars; Platen size: 1320 x 1085 mm; Table highness: 900 mm; distance between tie bars: 1320 x 705 mm; Ram stroke: 500 mm

Electric resistance-heated holding furnace for molten light-metal (aluminium) alloys, manufacturer Hindenlang Gießereitechnik (Lobbach, Germany), type SWLE-750, ID no. 10290, year of manufacture 04/2011. Holding capacity 750 kg, max. temperature 760 °C. Power 49.5 kW, 400 V / 50 Hz, 71.5 A, circuit 1×Y. Crucible-type furnace, mounted on steel base frame with access platform. Complete with control system

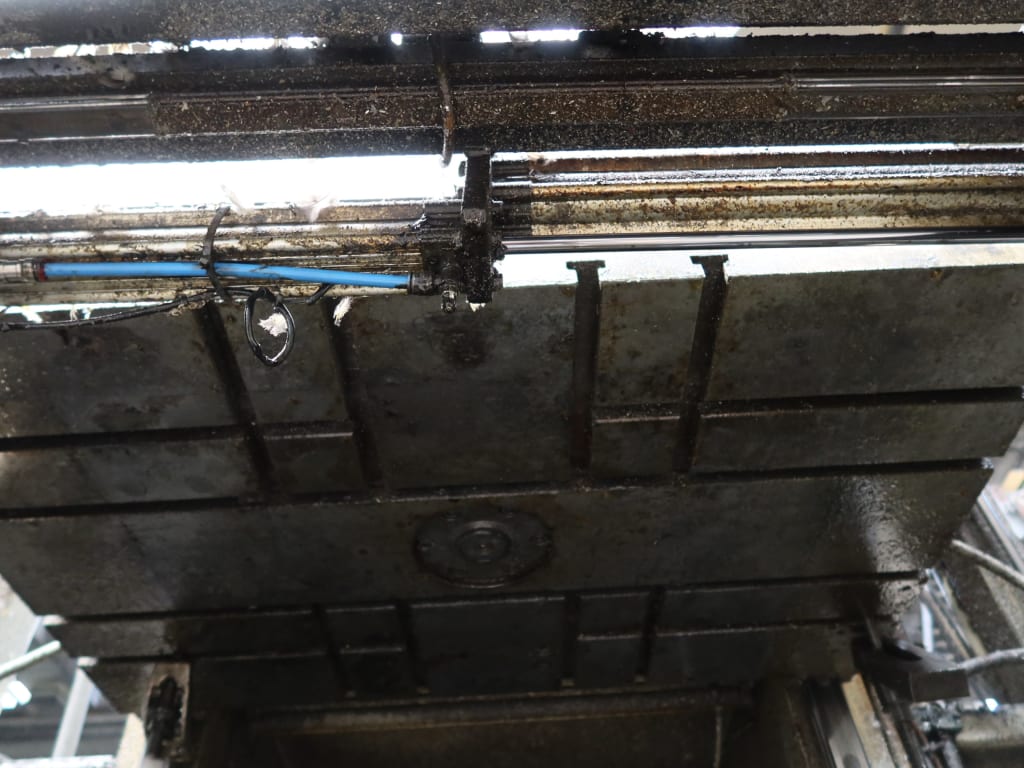

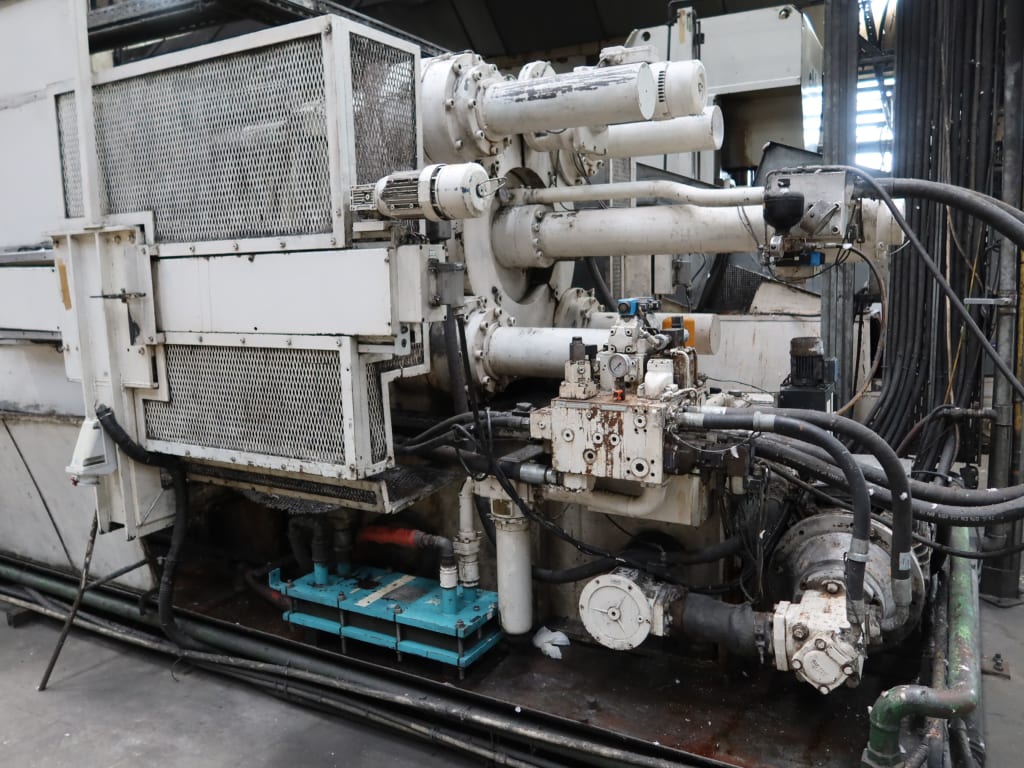

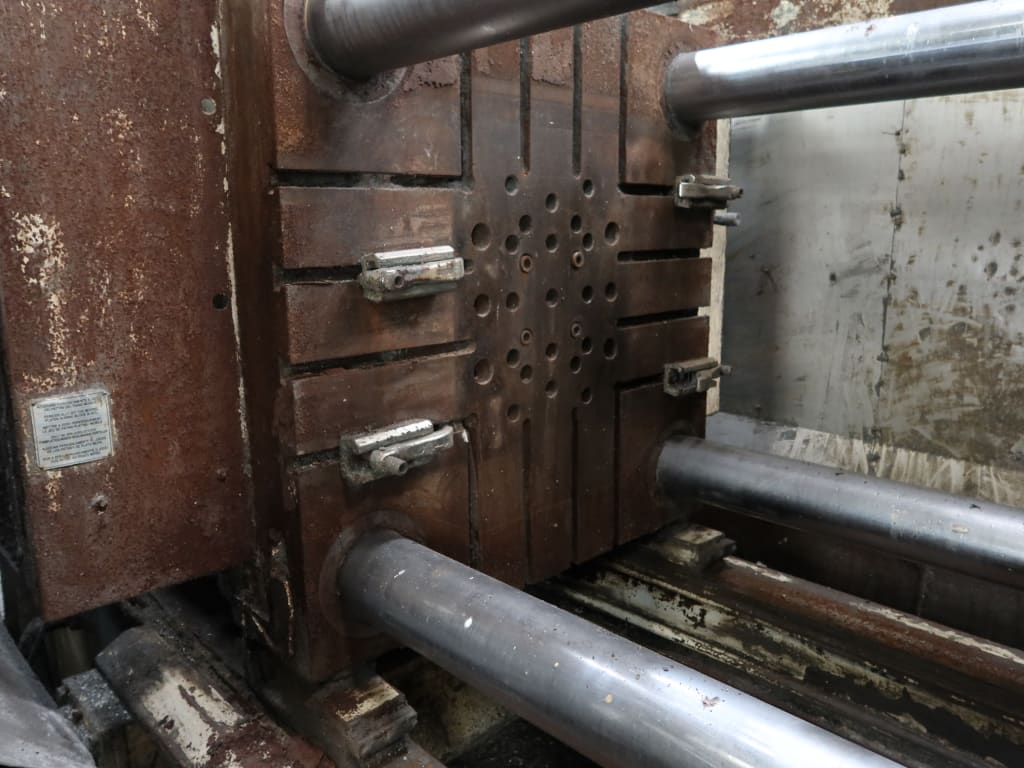

Clamping force: 12,115 kN (1235 T); Platen dimensions: 1540 x 1540 mm; Clearance between tie bars: 775 x 775 mm to 800 x 800 mm; Tie bar diameter: 205 mm; Die height (max/min): 1100 mm / 450 mm; Moving platen stroke: 1000 mm; Maximum injection force: 828 to 850 kN; Injection stroke: 730 mm; Ejection force: 563 kN; Ejection stroke: 220 mm; Distance between tie bars: 995 mm; Tie bar diameter: 205 mm; Maximum shot weight: 17.3 kg; Maximum projected area (400 kg/cm²): 3087.5 cm²; Casting cycles (empty): 5 cycles/min; Maximum shot weight (aluminum): approx. 20 kg; Own weight: 58,300 kg; Width: approx. 3700 mm; Length: 10,981 mm; Height: 3878 mm.

Locking force: 580 ton; Opening force: 14.58 ton; Maximum injection force: 55.7 ton; Minimum injection force: 15.8 ton; Central ejection force: 27.1 ton; Backward central ejection force: 16.1 ton; Maximum movable platen stroke: 720 mm; Minimum movable platen stroke: 360 mm; Injection stroke: 500 mm; Central ejection stroke: 170 mm; Maximum die height: 850 mm; Minimum die height: 350 mm; Distance between tie bars: 715 mm; External platen dimensions: 1120 x 1148 mm; Tie bar diameter: 145 mm; Maximum projected area (400 kg/cm²): 1450 cm²; Maximum empty cycles: 8 cycles/min; Work pressure: 140 bar; Tank capacity: 1600 l; Number of injection positions / difference: 3 / -30, -80, -120, -150, -190, -240 mm; Maximum casting weight (Al): 9.2 kg; Minimum die dimensions: 470 x 470 mm; Nitrogen accumulator pre-charge pressure: 120 bar; Multiplier nitrogen accumulator pre-charge pressure: 130 bar;

Locking force: 580 ton; Opening force: 14.58 ton; Maximum injection force: 55.7 ton; Minimum injection force: 15.8 ton; Central ejection force: 27.1 ton; Backward central ejection force: 16.1 ton; Maximum movable platen stroke: 720 mm; Minimum movable platen stroke: 360 mm; Injection stroke: 500 mm; Central ejection stroke: 170 mm; Maximum die height: 850 mm; Minimum die height: 350 mm; Distance between tie bars: 715 mm; External platen dimensions: 1120 x 1148 mm; Tie bar diameter: 145 mm; Maximum projected area (400 kg/cm²): 1450 cm²; Maximum empty cycles: 8 cycles/min; Work pressure: 140 bar; Tank capacity: 1600 l; Number of injection positions / difference: 3 / -30, -80, -120, -150, -190, -240 mm; Maximum casting weight (Al): 9.2 kg; Minimum die dimensions: 470 x 470 mm; Machine dimensions (W x L x H): 2390 x 7614 x 3135 mm; Total machine weight (machine only): 24,600 kg; Nitrogen accumulator pre-charge pressure: 120 bar; Multiplier nitrogen accumulator pre-charge pressure: 130 bar;

Nominal capacity: 25 Tons

Electric resistance-heated holding furnace for molten light-metal (aluminium) alloys, manufacturer Hindenlang Gießereitechnik (Lobbach, Germany), type SWLE-750, ID no. 10533, year of manufacture 10/2013. Holding capacity 750 kg, max. temperature 760 °C. Power 49.5 kW, 400 V / 50 Hz, 71.5 A, circuit 1×Y. Complete with control system. Crucible-type furnace, mounted on steel base frame with access platform.

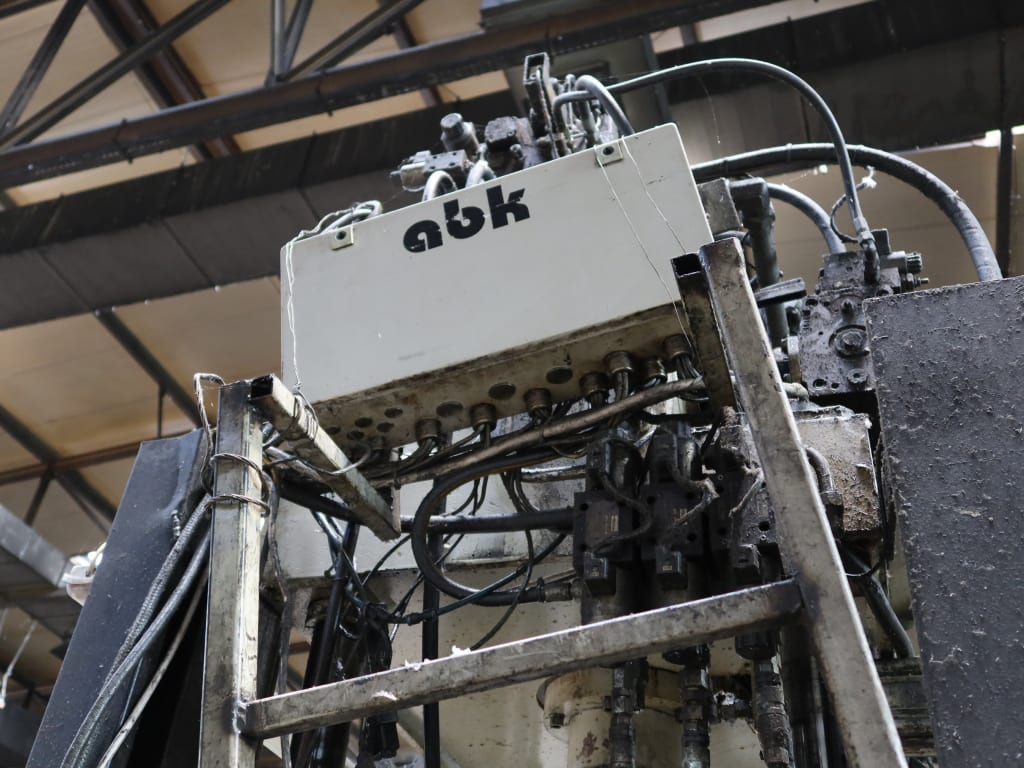

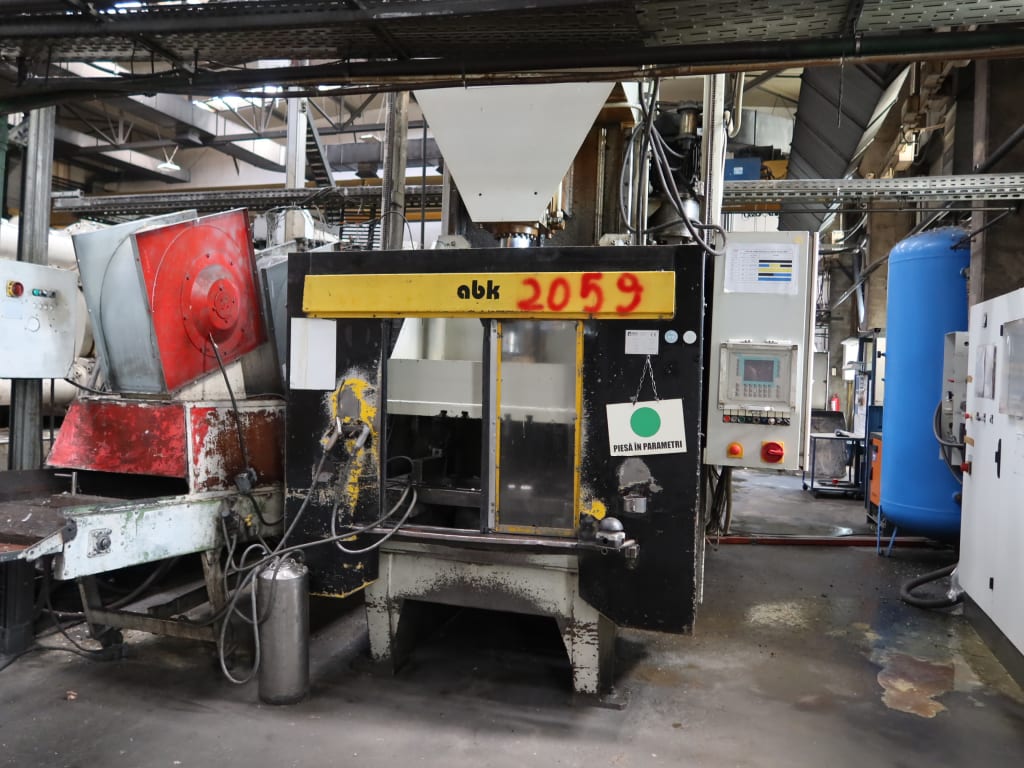

Pressing Force: 343 kN (nominal capacity of 35 metric tons); Controller Siemens; Overall height: 3400 mm; Base length: 1290 mm; Lower frame height: 950 mm; Tool center Height from Floor: Approx. 900 mm; Upper Opening Height Indicated: 600 mm; Overall Width: 1900 mm; Internal Opening Width: 1200 mm; Height to lower working level: 1150 mm; Upper Tool centering diameter: Ø50 mm

Industrial compressor, manufacturer Renner Kompressoren GmbH (Gügglingen, Germany). Delivery rate approx. 1,960 l/min; 15KW; maybe not functional

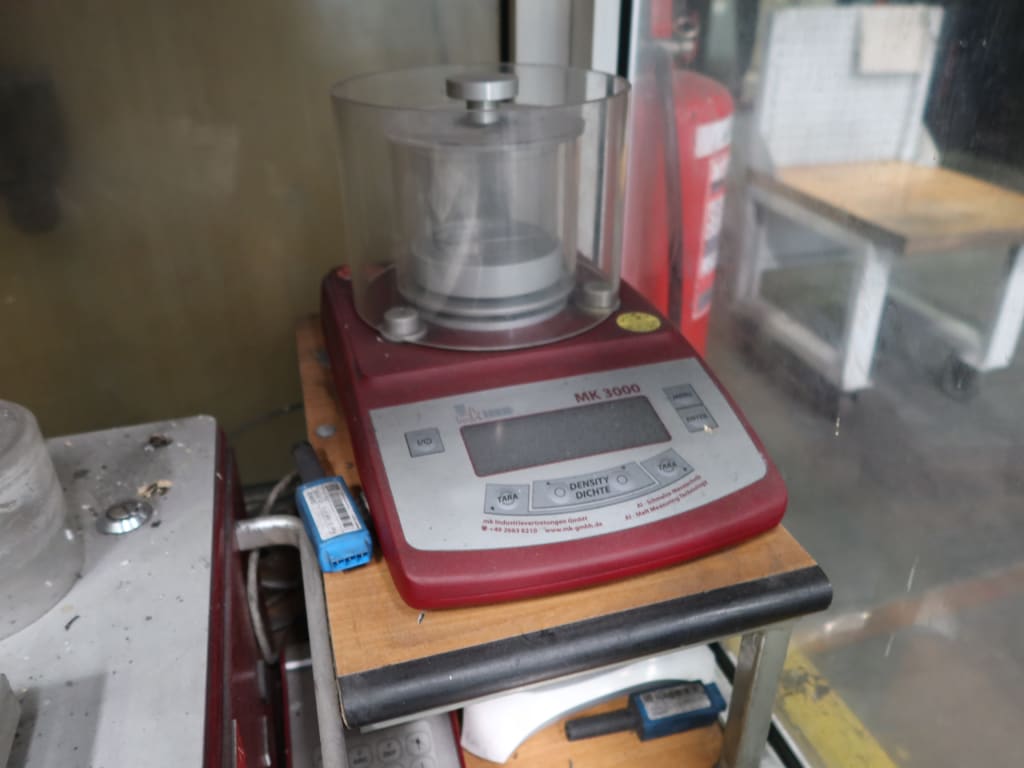

Vacuum density tester (Unterdruckdichte-Gerät / reduced-pressure test unit) for measuring gas/hydrogen content and density index of molten aluminium, manufacturer MK Industrievertretungen GmbH (Stahlhofen, Germany), type 3VT plus, no. 0317-514. Supplied with MK 3000 density index balance (no. 100082), MK memory box (no. 047) and user manual. 230 V / 50-60 Hz, 1400 VA.

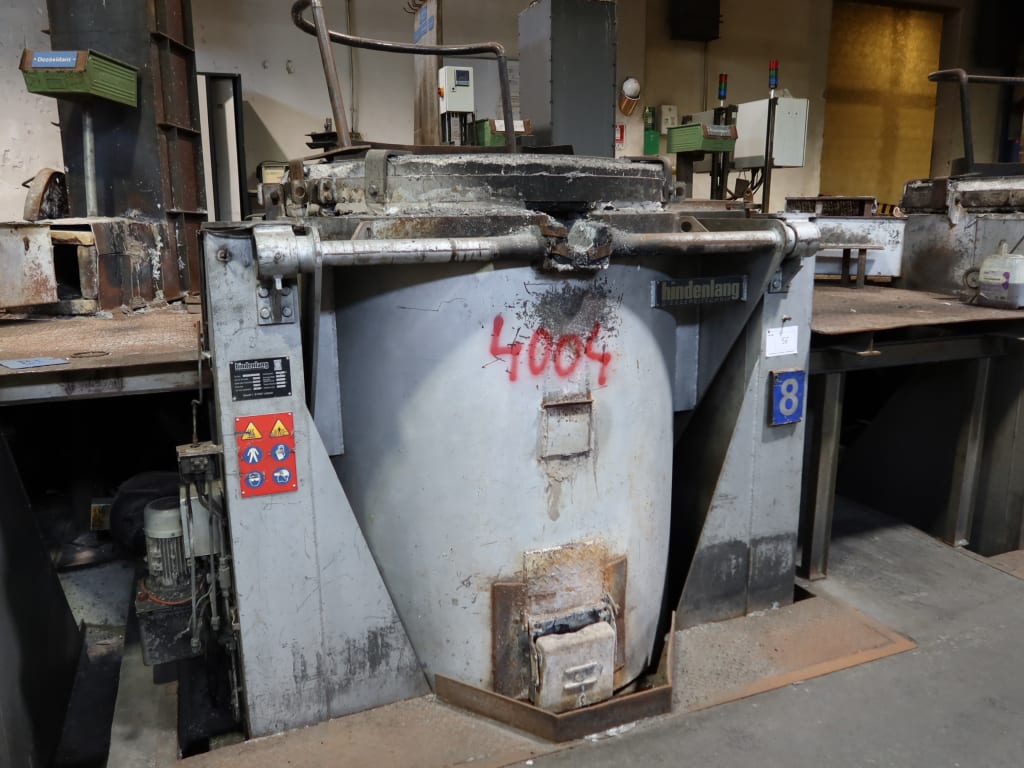

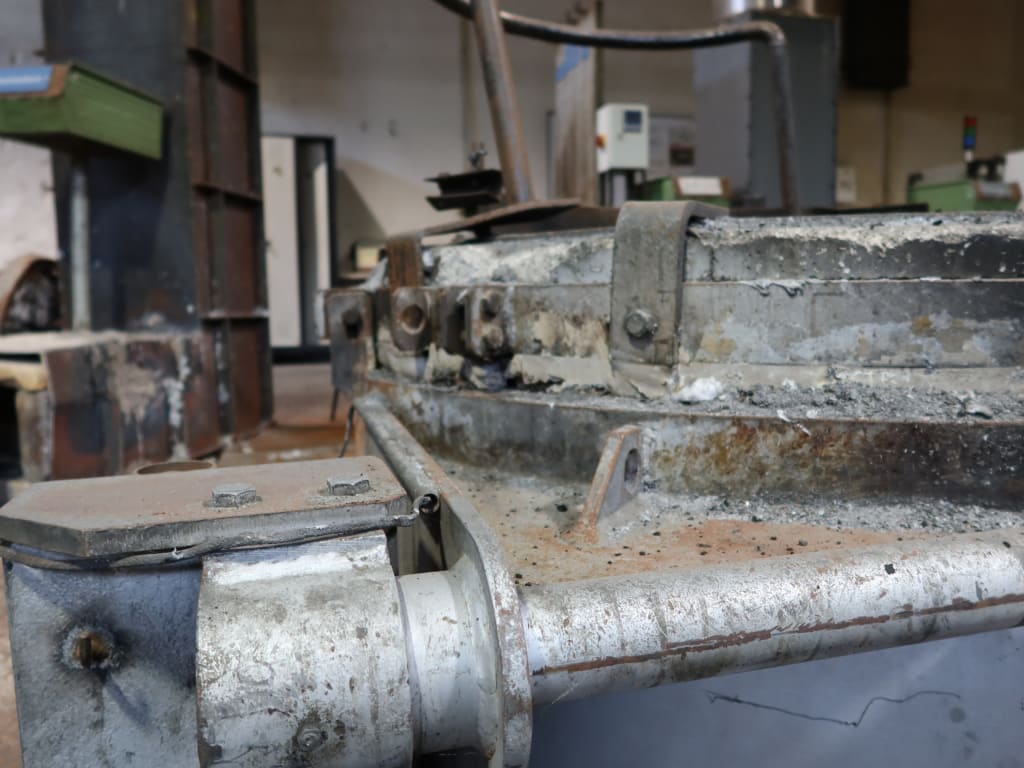

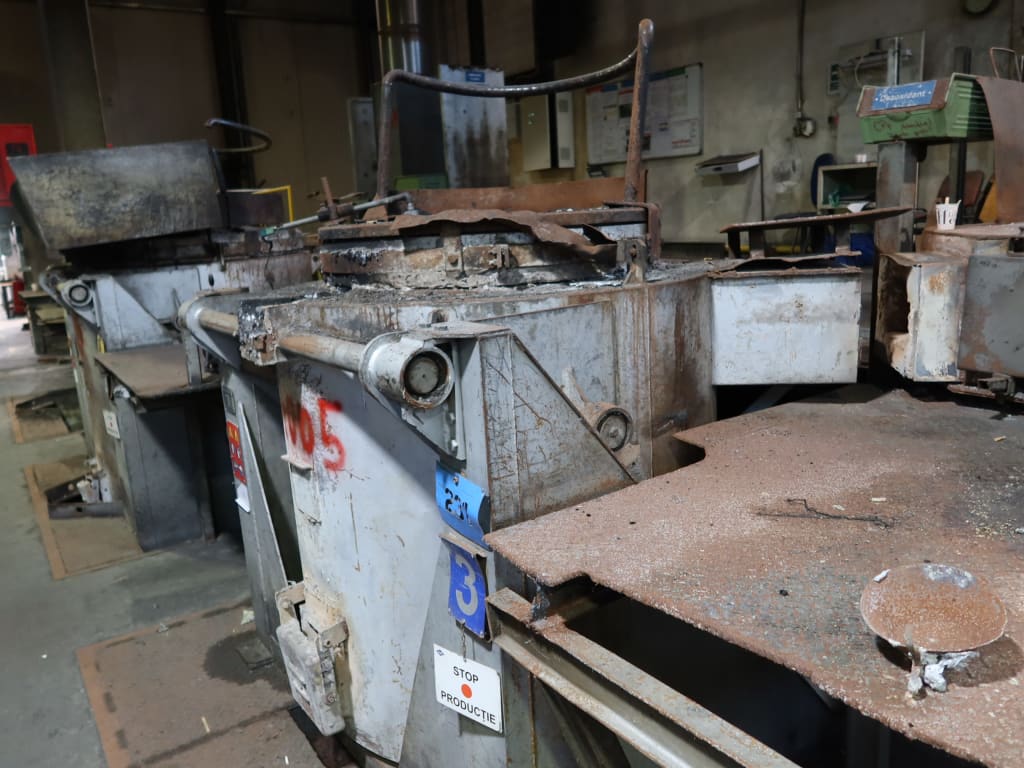

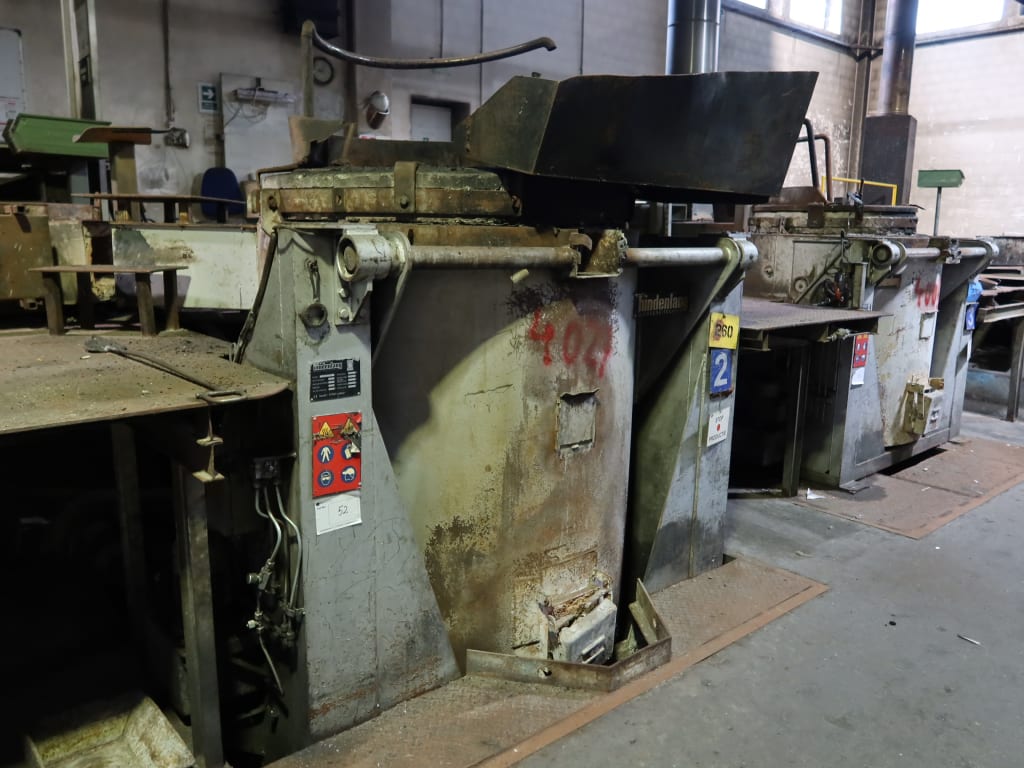

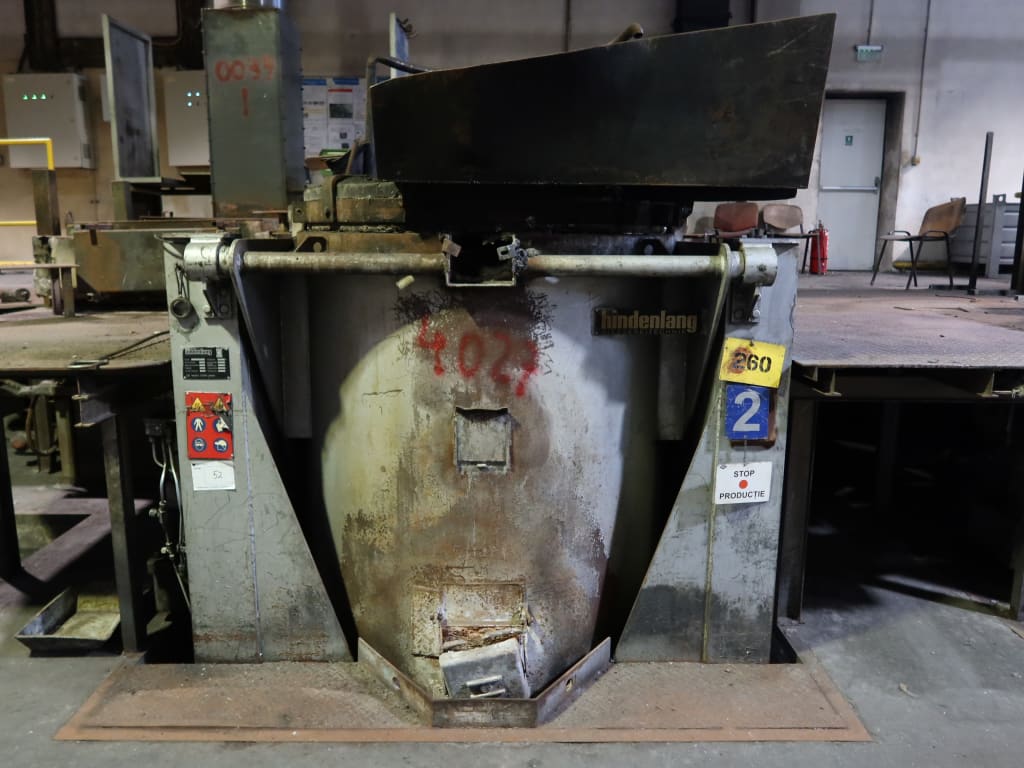

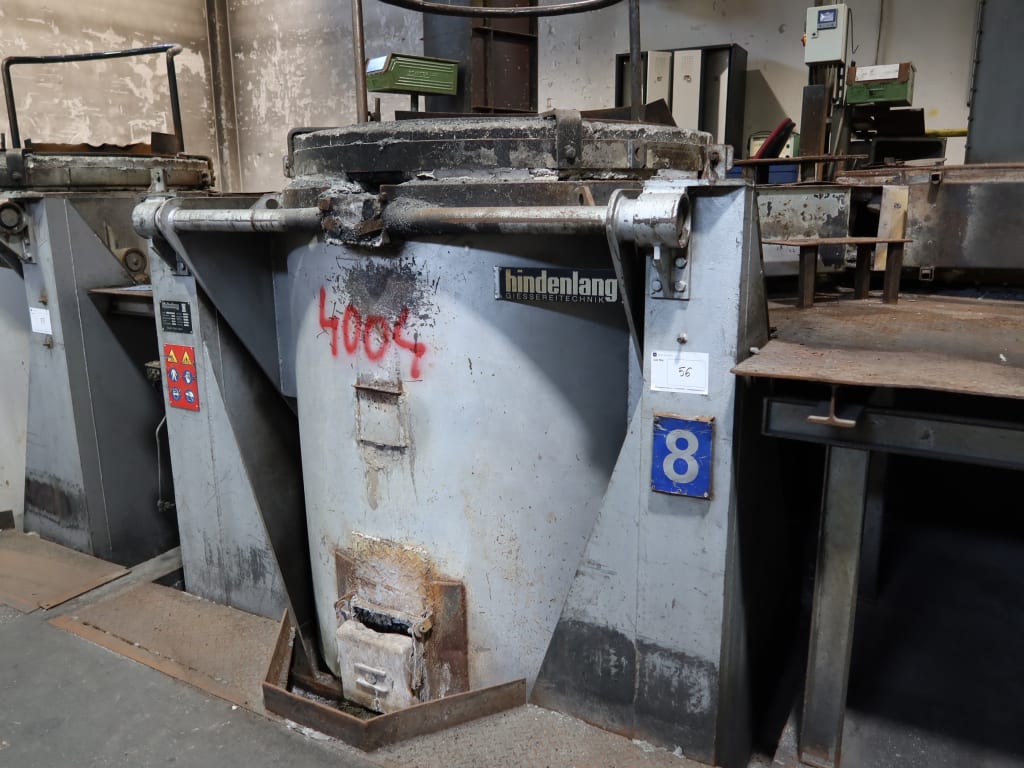

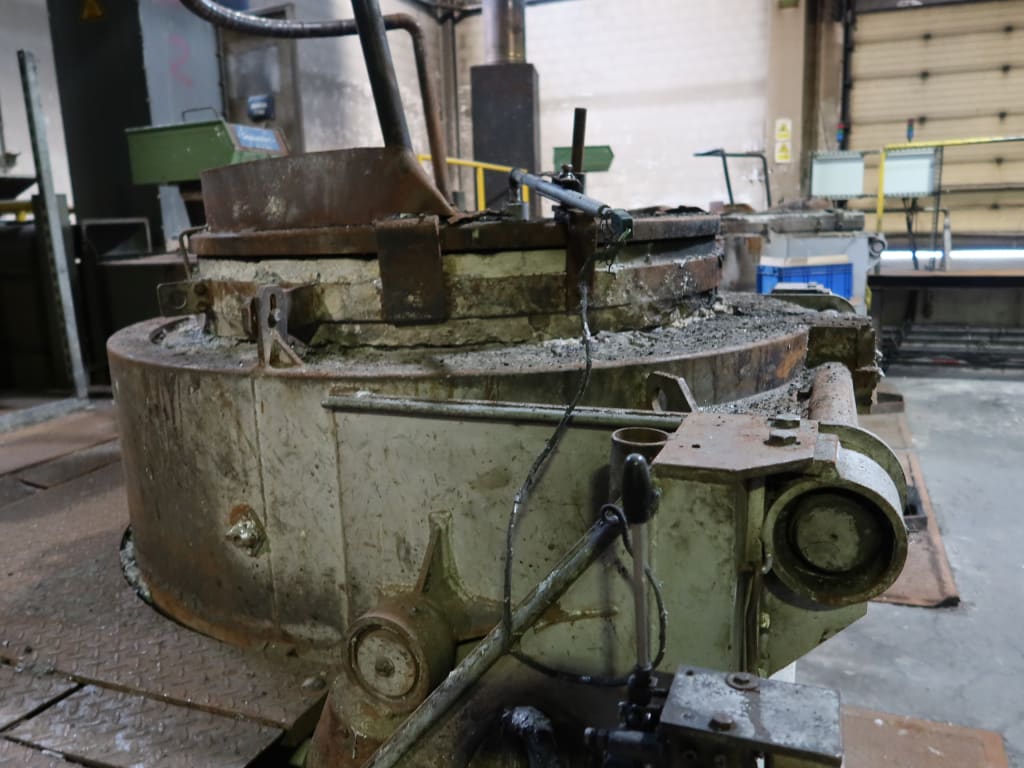

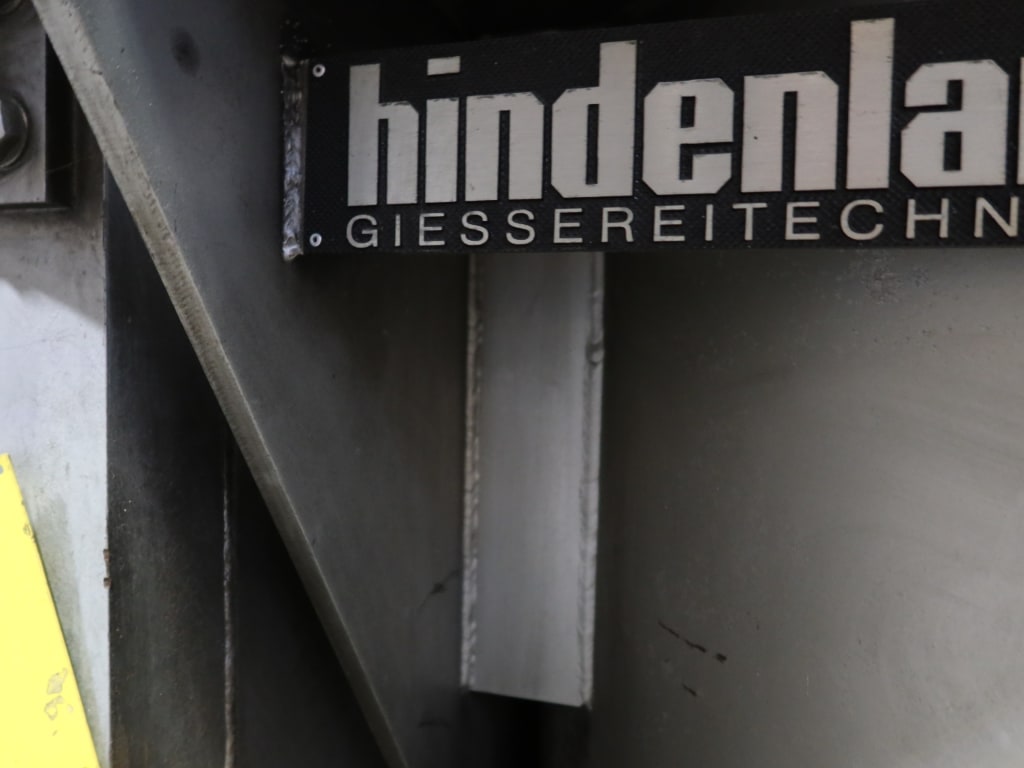

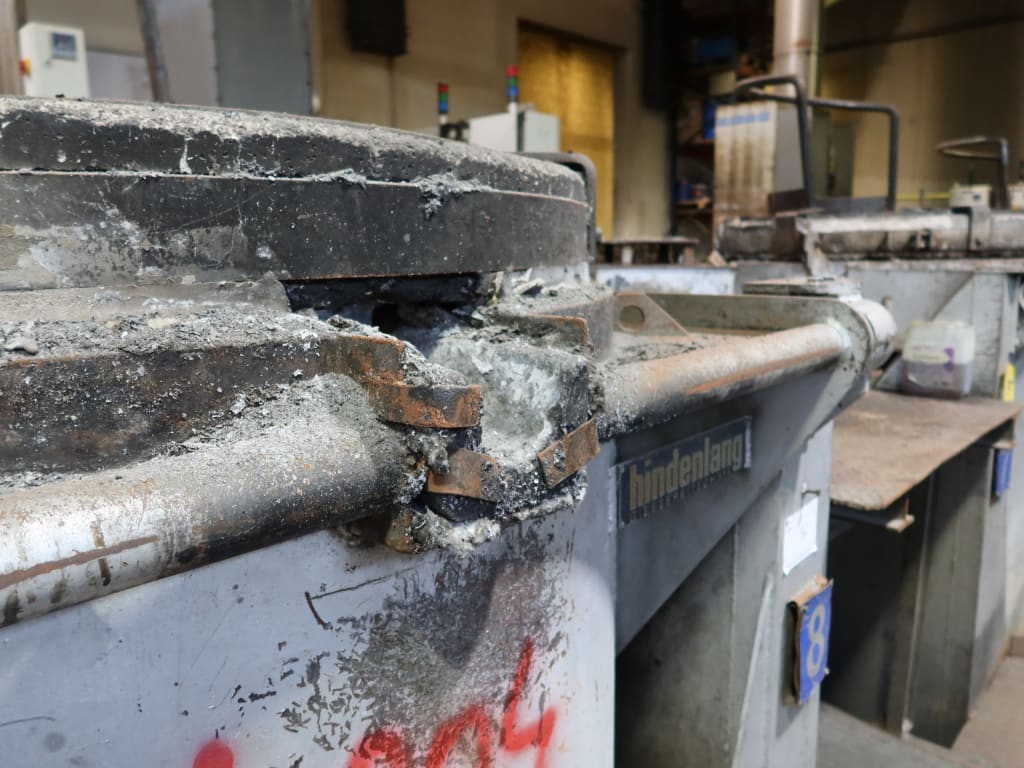

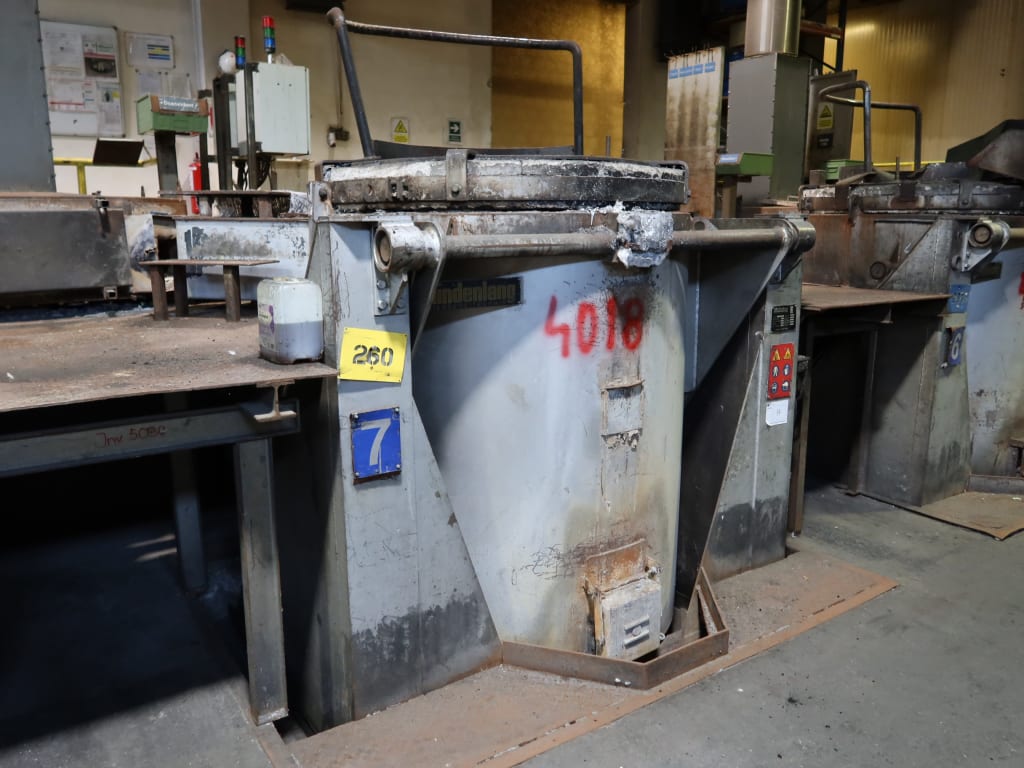

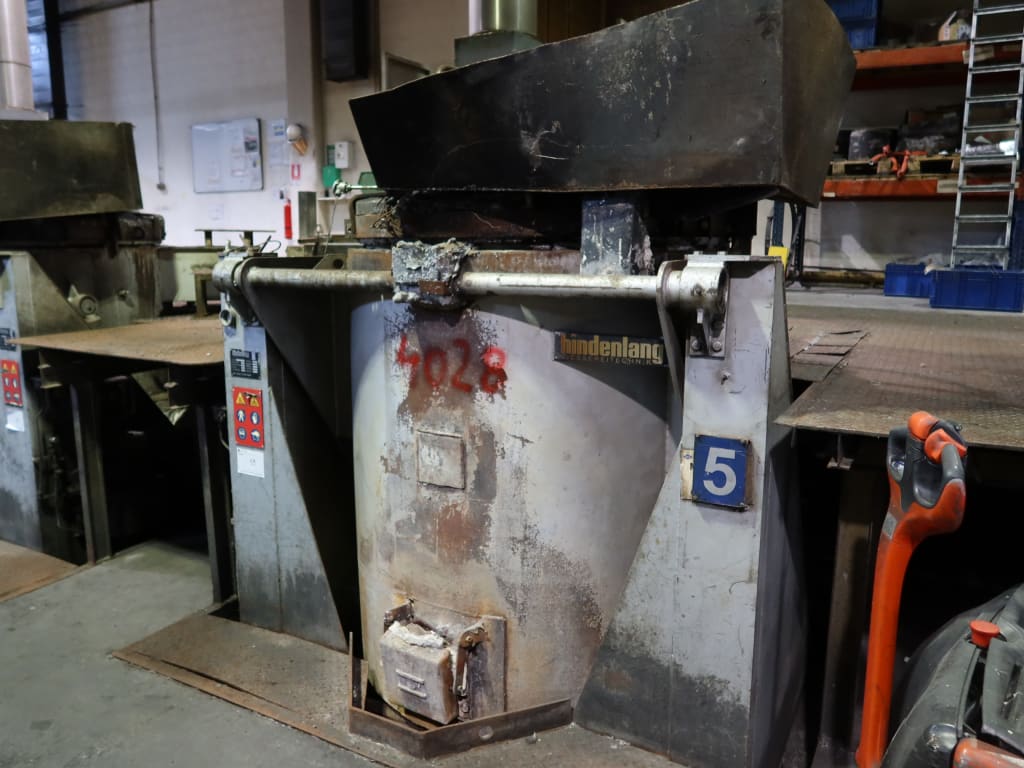

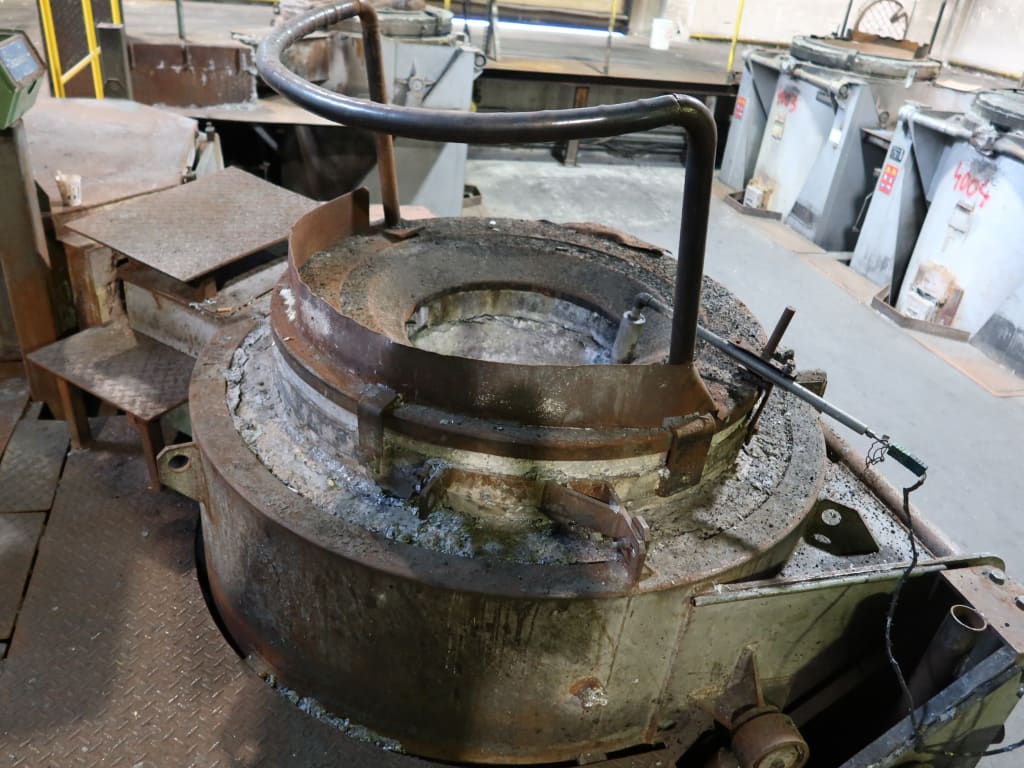

Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys, manufactured by Hindenlang Giessereitechnik (Lobbach, Germany). Year of manufacture 2015, ID no. 10653. Crucible/charge capacity 1,200 kg, max. temperature 900 °C, rated power 512 kW, 400 V / 50 Hz. Hydraulically tiltable for pouring; complete with control system and exhaust/extraction connection.

Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys, manufactured by Hindenlang Giessereitechnik (Lobbach, Germany). Year of manufacture 2013 (02/2013), ID no. 10442. Crucible/charge capacity 580 kg, max. temperature 900 °C, rated power 440 kW, 400 V / 50 Hz. Hydraulically tiltable for pouring; complete with control system and exhaust/extraction connection.

Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys, manufactured by Hindenlang Giessereitechnik (Lobbach, Germany). Year of manufacture 2021, ID no. 11083. Operating capacity 1,150 kg, max. temperature 900 °C, rated power 512 kW, 400 V / 50 Hz. Hydraulically tiltable for pouring; complete with control system and exhaust/extraction connection.

Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys, manufactured by Hindenlang Giessereitechnik (Lobbach, Germany). Year of manufacture 2021, ID no. 11084. Operating capacity 1,150 kg, max. temperature 900 °C, rated power 512 kW, 400 V / 50 Hz. Hydraulically tiltable for pouring; complete with control system and exhaust/extraction connection.

Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys, manufactured by Hindenlang Giessereitechnik (Lobbach, Germany). Year of manufacture 2016, ID no. 10765. Crucible/charge capacity 1,200 kg, max. temperature 900 °C, rated power 512 kW, 400 V / 50 Hz. Hydraulically tiltable for pouring; complete with control system and exhaust/extraction connection.

Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys, manufactured by Hindenlang Giessereitechnik (Lobbach, Germany). Year of manufacture 2016, ID no. 10764. Crucible/charge capacity 1,200 kg, max. temperature 900 °C, rated power 512 kW, 400 V / 50 Hz. Hydraulically tiltable for pouring; complete with control system and exhaust/extraction connection.

Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys, manufactured by Hindenlang Giessereitechnik (Lobbach, Germany). Year of manufacture 2014 (06/2014), ID no. 10560. Crucible/charge capacity 1,200 kg, max. temperature 900 °C, rated power 512 kW, 400 V / 50 Hz. Hydraulically tiltable for pouring; complete with control system and exhaust/extraction connection.

Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys, manufactured by Hindenlang Giessereitechnik (Lobbach, Germany). Year of manufacture 2015, ID no. 10654. Crucible/charge capacity 1,200 kg, max. temperature 900 °C, rated power 512 kW, 400 V / 50 Hz. Hydraulically tiltable for pouring; complete with control system and exhaust/extraction connection.

Wheel-type (turbine) shot blasting machine, manufacturer C.M. Surface Treatment S.p.A. (Modena, Italy), model MT/1000, serial no. S5204. Combination machine for treating workpieces on a rotary hook/hanger or rotary table; hook max. workload 300 kg. Suitable for descaling, cleaning and surface preparation of steel and non-ferrous parts. Complete with blast wheel(s), abrasive recovery/feed system, dust extraction and control panel. Note: the overhead hook transport / conveyor system is dismantled

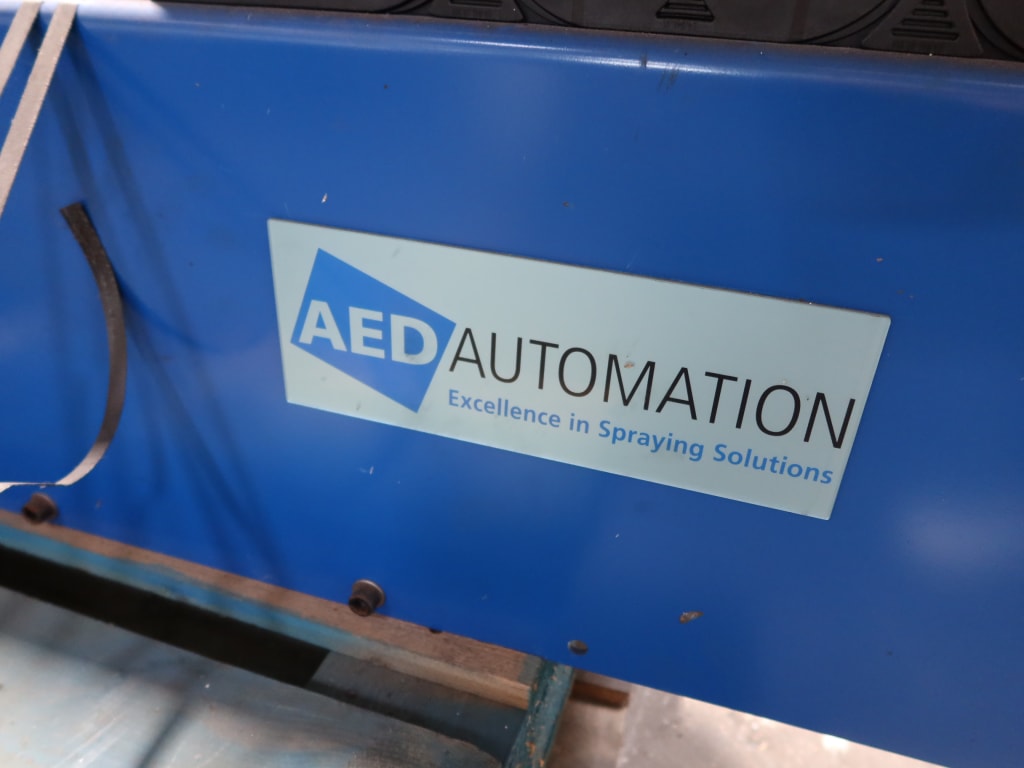

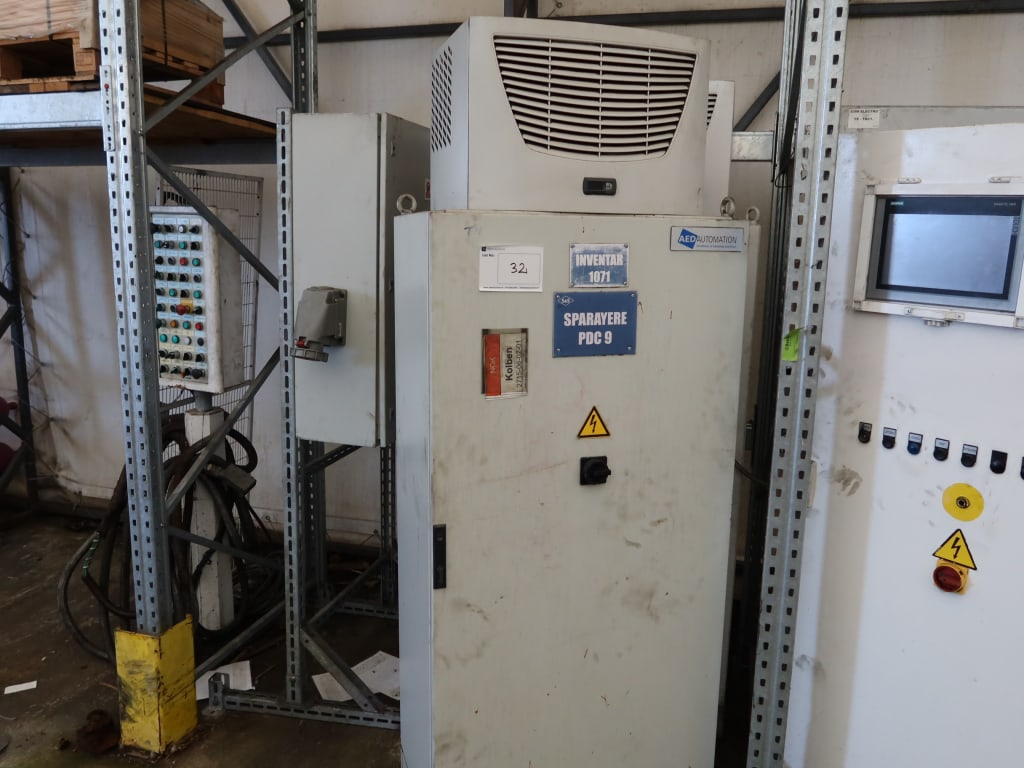

Never used automatic spray robot for application of die release agent (die lubricant) in aluminium high-pressure die casting (HPDC), manufacturer AED Automation GmbH (Dornstadt, Germany). Year 11/2023, serial no. LST2-0022. Power 5 kW, control voltage 24 V DC, operating pressure 8 bar. Supplied with häwa floor-standing control cabinet (IP55) housing a Siemens control system: SIMATIC PLC with ET200 I/O, Siemens SINAMICS S120 servo drives (2-axis) with Safety Integrated Extended Functions licence (SW 4.8), SITOP PSU300S 24 V/20 A power supply, Pilz PNOZ s4 / s7 safety relays, Siemens SCALANCE X005 industrial Ethernet switch and SIRIUS motor protection. Original software licences and CompactFlash firmware card included. Primarily intended for in-mould spraying on HPDC machines; potentially adaptable to other automated spraying applications.

Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys, manufactured by Hindenlang Giessereitechnik (Lobbach, Germany). Year of manufacture 2018, ID no. 10893. Operating capacity 1,150 kg, max. temperature 900 °C, rated power 512 kW, 400 V / 50 Hz. Hydraulically tiltable for pouring; complete with control system and exhaust/extraction connection.

Gas-fired tilting crucible furnace for melting and holding light-metal (aluminium) alloys, manufactured by Hindenlang Giessereitechnik (Lobbach, Germany). Year of manufacture 2013 (12/2013), ID no. 10537. Crucible/charge capacity 1,200 kg, max. temperature 900 °C, rated power 512 kW, 400 V / 50 Hz. Hydraulically tiltable for pouring; complete with control system and exhaust/extraction connection. 

Nominal capacity: 25 Tons

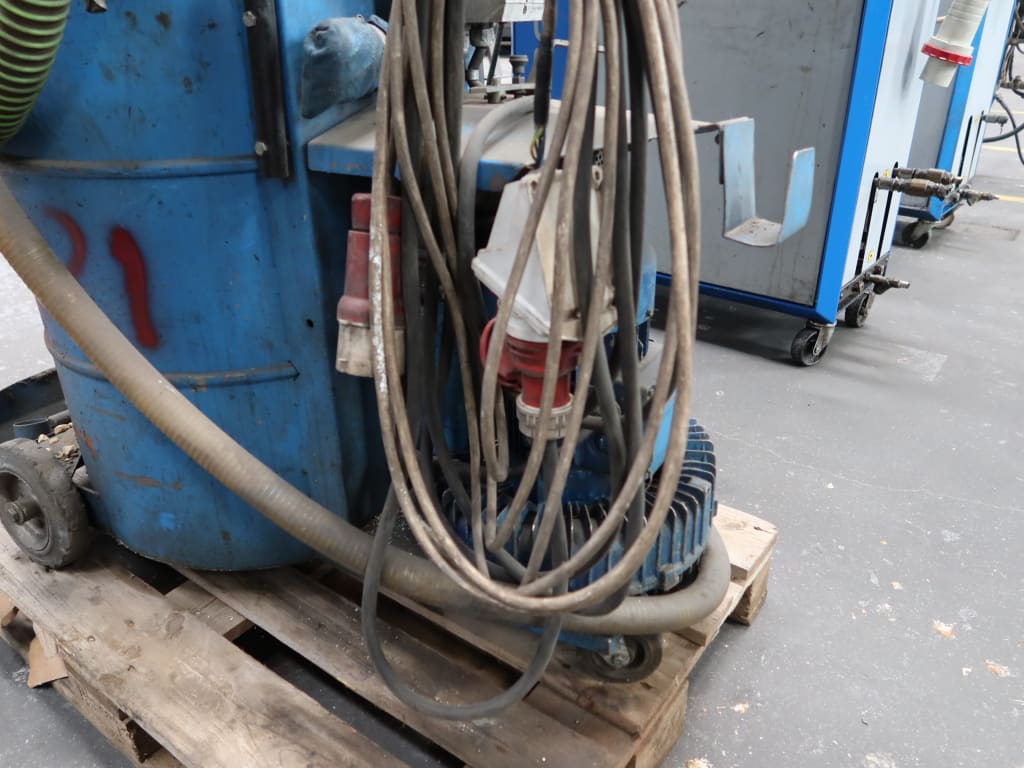

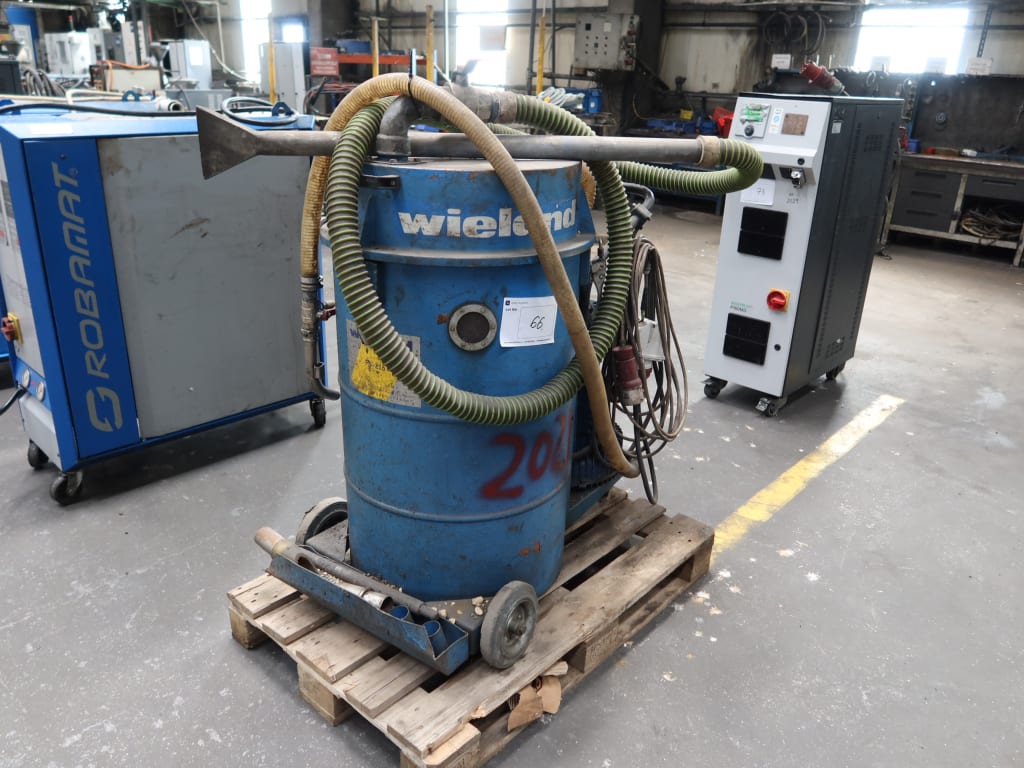

Mobile drum-type industrial vacuum / material suction unit, manufactured by Wieland (Erlangen, Germany). Year 2007, serial no. 1335. Motor 3 kW, 2895 rpm, 400 V / 50 Hz / 3-phase, IP44, approx. weight 130 kg. Supplied with suction hoses and lance nozzle, mounted on wheeled drum base

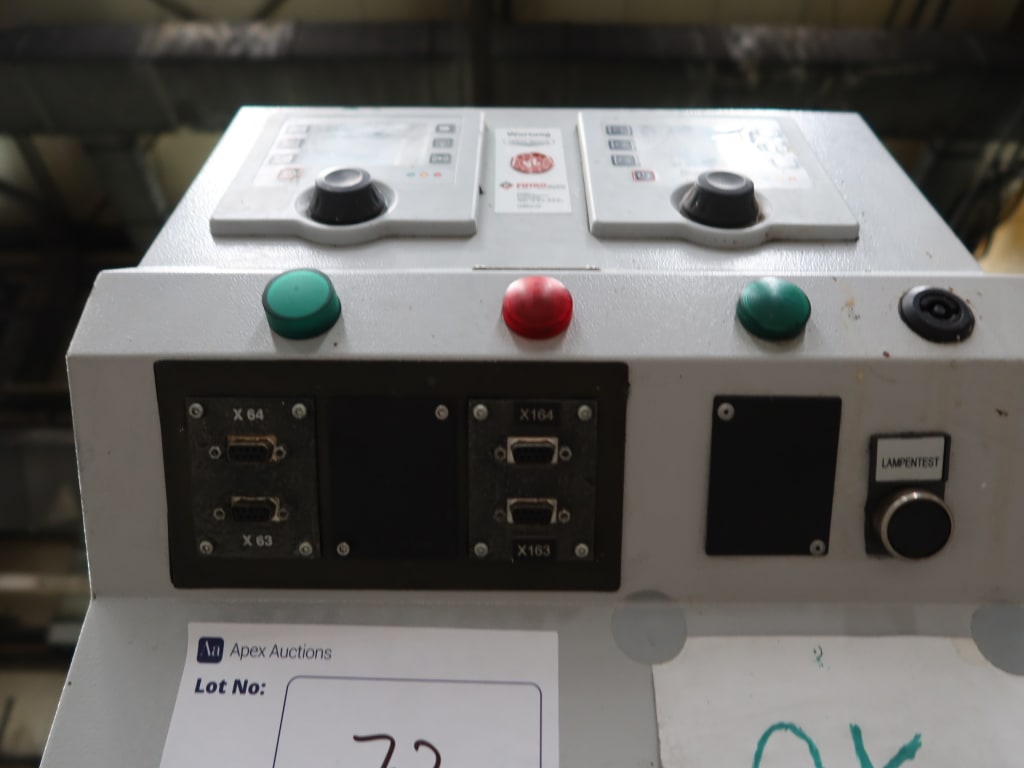

Mould temperature control unit, manufacturer Robamat, year 2014, serial no. 19083. Twin-circuit (two independent control zones). 400 V / 50 Hz / 63 A. Mobile unit on castors with pressure gauges.

Mould temperature control unit, manufacturer Robamat, year 2016, serial no. 3212. Twin-circuit (two independent control zones). 400 V / 50 Hz / 63 A. Mobile unit on castors with pressure gauges.

Professional handheld infrared thermal imaging camera, manufacturer Fluke, 60 Hz refresh rate. Complete with FLK-Ti-LENS/TELE2 telephoto lens (cased), spare battery, dual battery charging base, mains adaptor with international plug adaptors, Ti-Tripod 3 mount, soft carry bag and rigid Fluke transport case. Powers on and displays live thermal image at inspection. Sold as inspected.

Pressurised-water mould temperature control unit, manufactured by Regloplas AG (St. Gallen, Switzerland). Year 2013, serial no. 114730250021. Max. temperature 160 °C, heating power 38 kW, tank volume 1 litre, max. pressure 10 bar, 400 V / 3 PE / 50 Hz, 58 A.

Pressurised-water mould temperature control unit, manufactured by Regloplas AG (St. Gallen, Switzerland). Max. temperature 160 °C, heating power 38 kW, tank volume 1 litre, max. pressure 10 bar, 400 V / 3 PE / 50 Hz, 58 A. Mobile unit on castors.

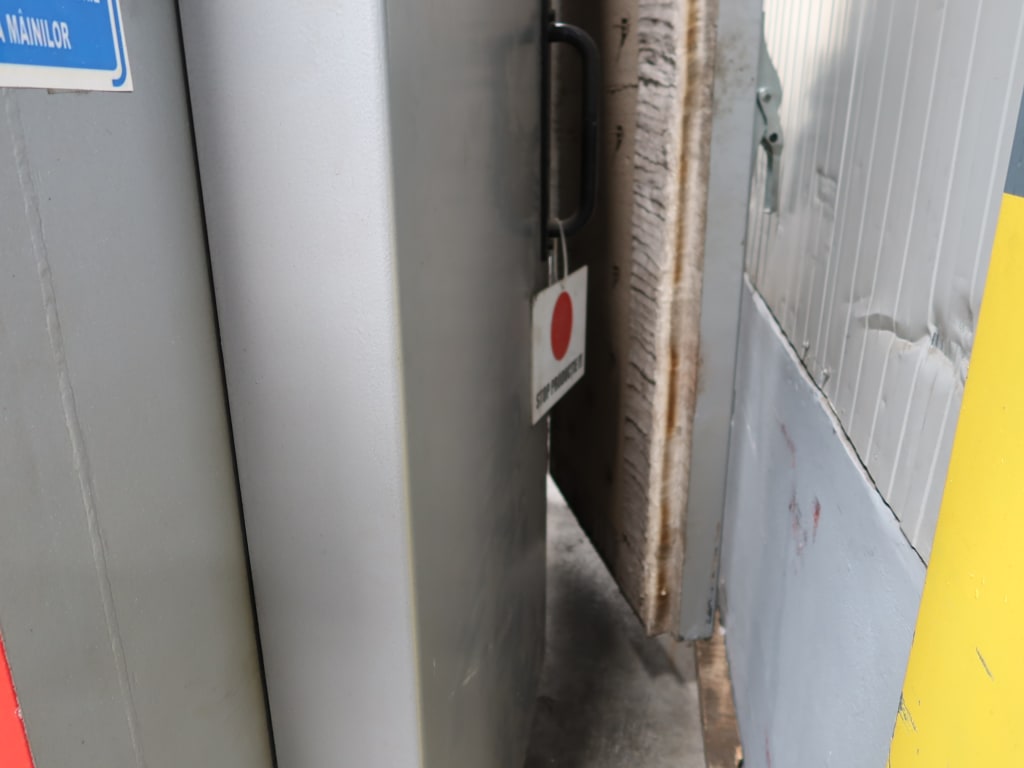

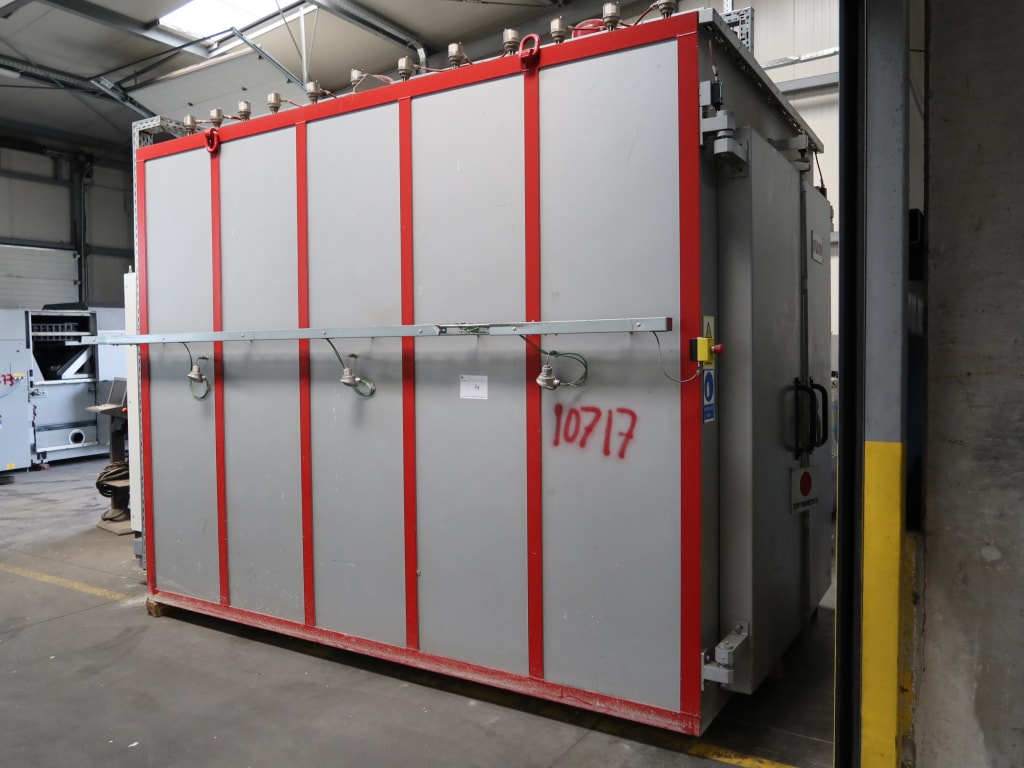

Large electrically heated walk-in chamber furnace manufactured by KGO GmbH (Wetter, Germany), year of manufacture 2021, commission no. 21.02/18178. Hinged front access door with lever-latch closure; insulated panel construction on a steel frame. Originally configured for aluminium age-hardening (ageing). KGO's KA-series chamber tempering furnaces are suitable for tempering, annealing, age-hardening, recrystallizing and ageing, and can be operated with protective-gas atmospheres. Standard features of the series include freely programmable switch and control system, direct cooling with protective gas, and an interface for process control systems. Temperature uniformity to the highest furnace class per DIN / AMS. Technical data (from nameplate): Year 2021 · Max. temperature 300 °C · Installed power 130 kVA max · Supply 400 V / 3 PH / 50 Hz · Weight 5,500 kg. Useful chamber dimensions (per KGO type designation, D × W × H): approx. 1,600 × 3,200 × 2,200 mm. Freely programmable controller for multi-segment temperature profiles (KGO systems typically use a demig process automation controller with data recording); exact control configuration available from the manufacturer against commission no. 21.02/18178. Suitable for aluminium ageing and other heat-treatment cycles within its temperature range.

Quantity of locating pins, toggle/cam clamps, angle brackets and stop blocks mounted on perforated aluminium base plates.

Completely equipped office container; constructed from 2 CTX Containex 20" containers; 2 AC units, electricity, heating, 2 electric panels; furniture and other inventory is NOT included

Pressing Force: 343 kN (nominal capacity of 35 metric tons); Controller Siemens; Overall height: 3400 mm; Base length: 1290 mm; Lower frame height: 950 mm; Tool center Height from Floor: Approx. 900 mm; Upper Opening Height Indicated: 600 mm; Overall Width: 1900 mm; Internal Opening Width: 1200 mm; Height to lower working level: 1150 mm; Upper Tool centering diameter: Ø50 mm
