2013 Huvema Gap Bed Centre Lathes (5 Available) – Surplus to AMRC Training Centre

Starts: 12 March 2026 at 09:00 GMT
Ends: 01 April 2026 at 15:00 BST
5 x 2013 Huvema Gap Bed Centre Lathes – Surplus to the AMRC Training Centre. Available immediately. All assets must be collected no later than 17 April 2026. Machines are decommissioned and ready for collection. Please see the sale information section for any additional fees that may be applicable upon purchasing an item. NOTE: Vendor to approve all closing bids prior to Apex final invoicing.
Register for auctionEssential Information
Share:
Showing 5 of 5 lots
  • 1-0.jpg
    site

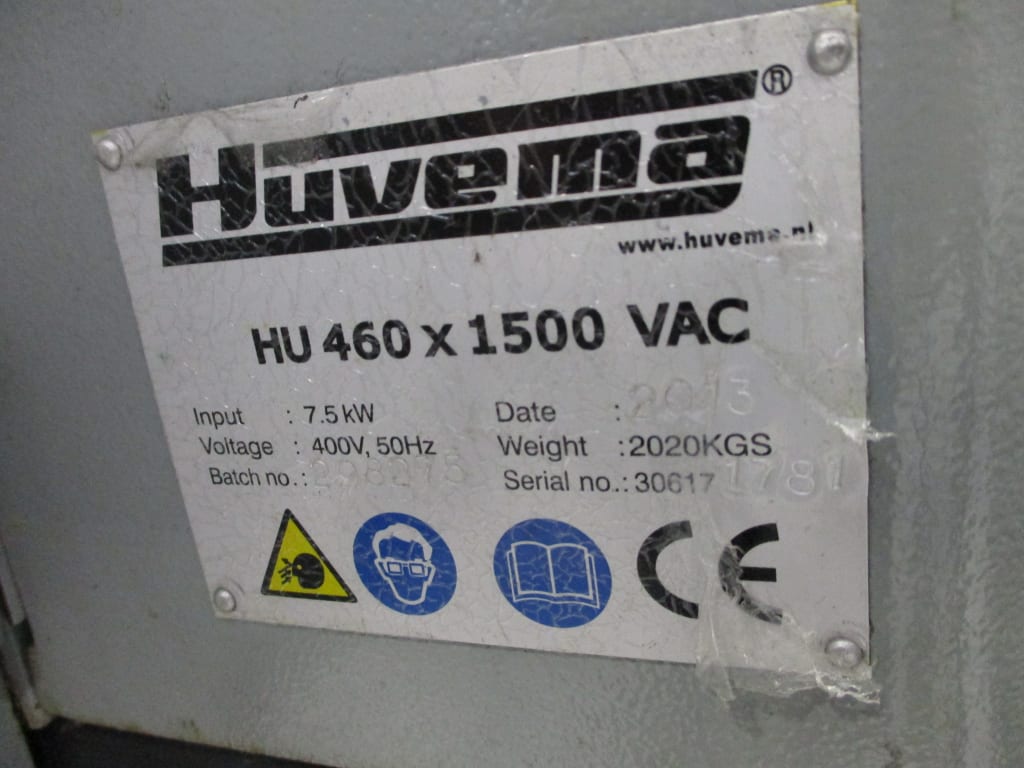

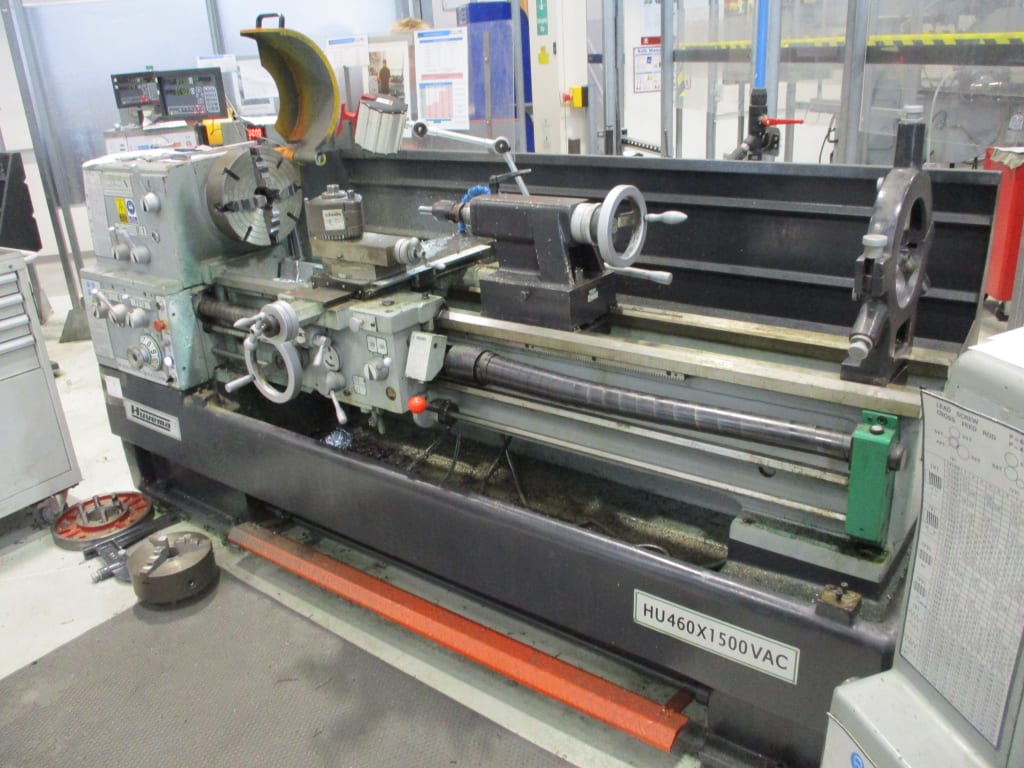

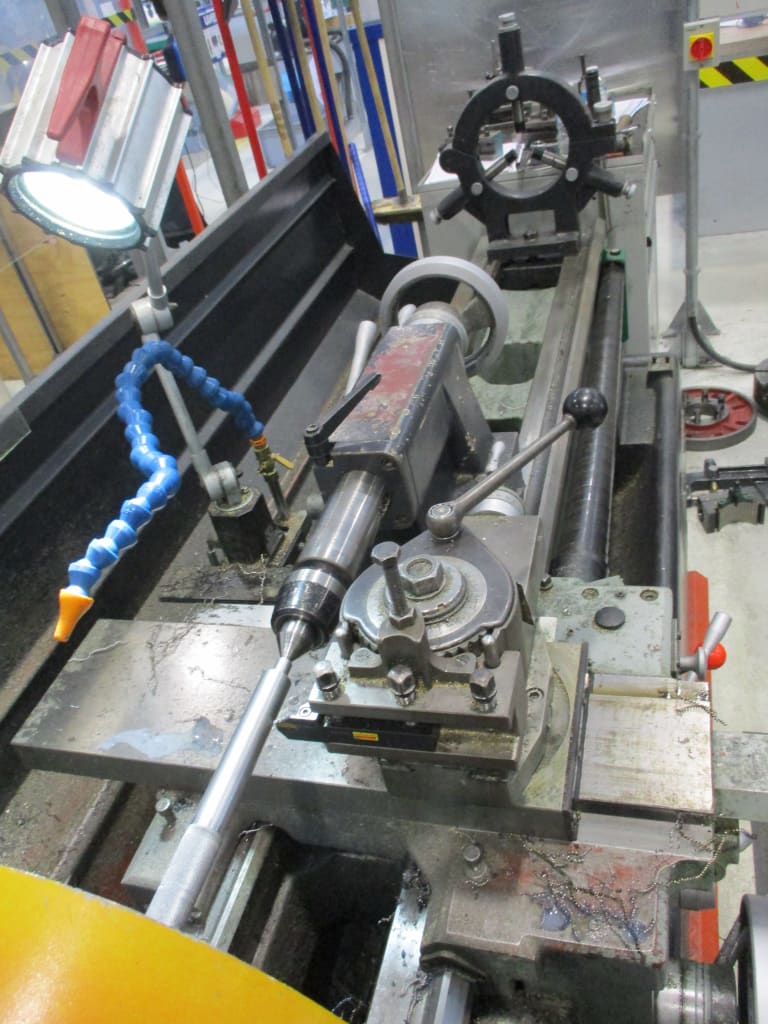

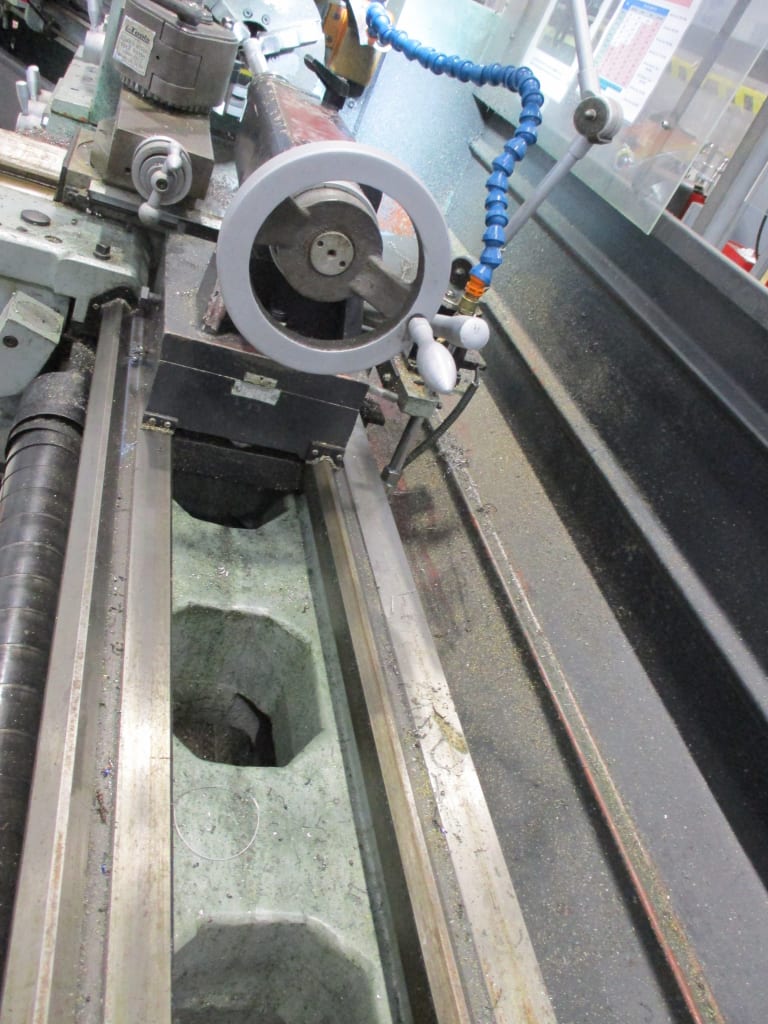

    LOT 1

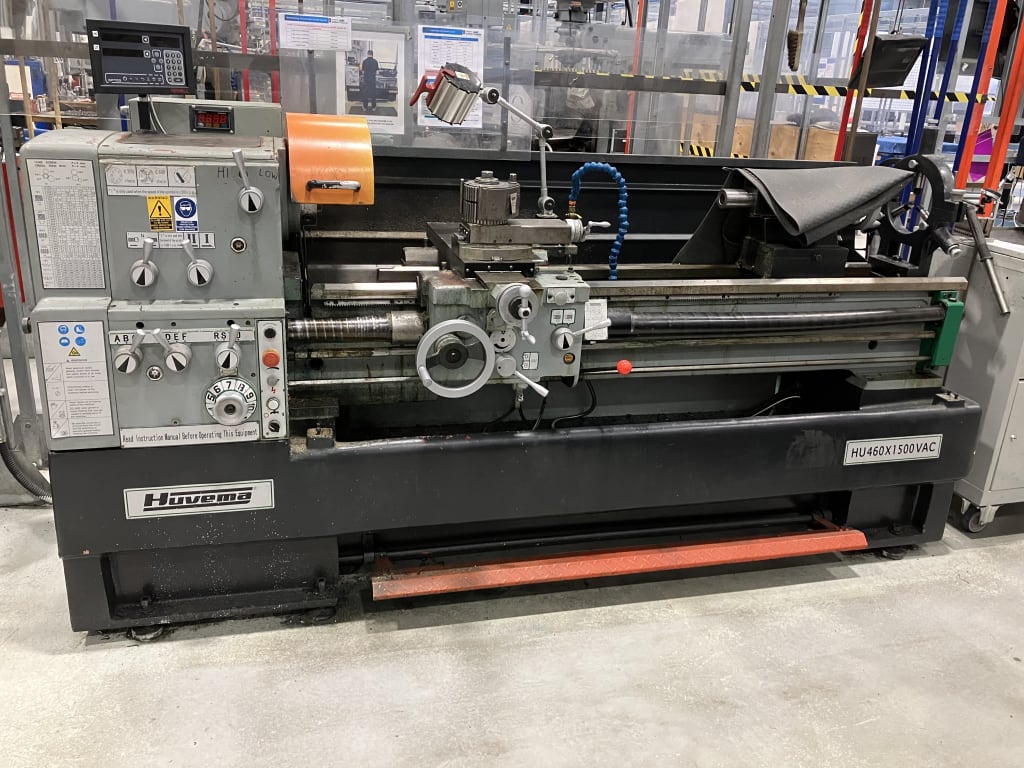

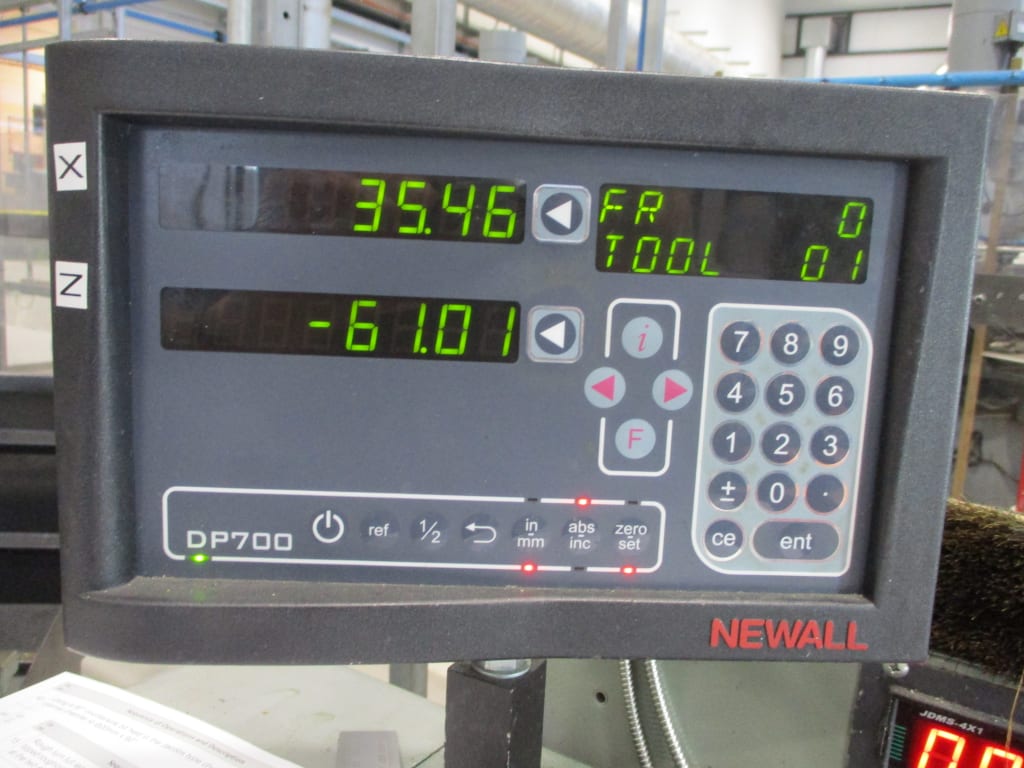

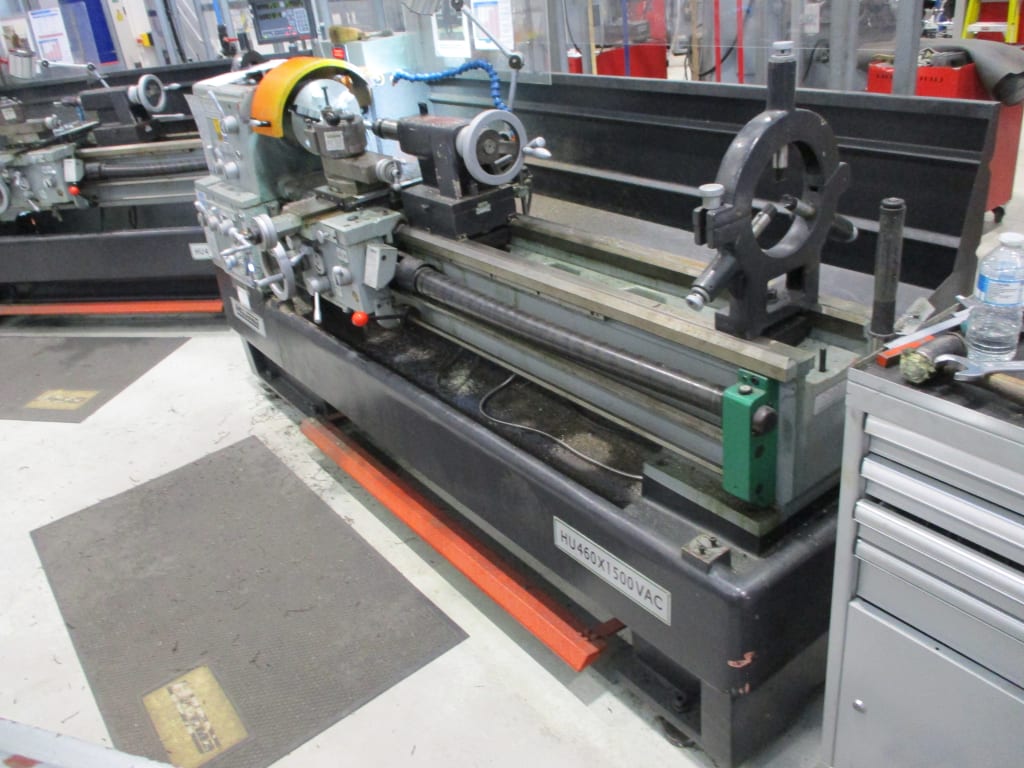

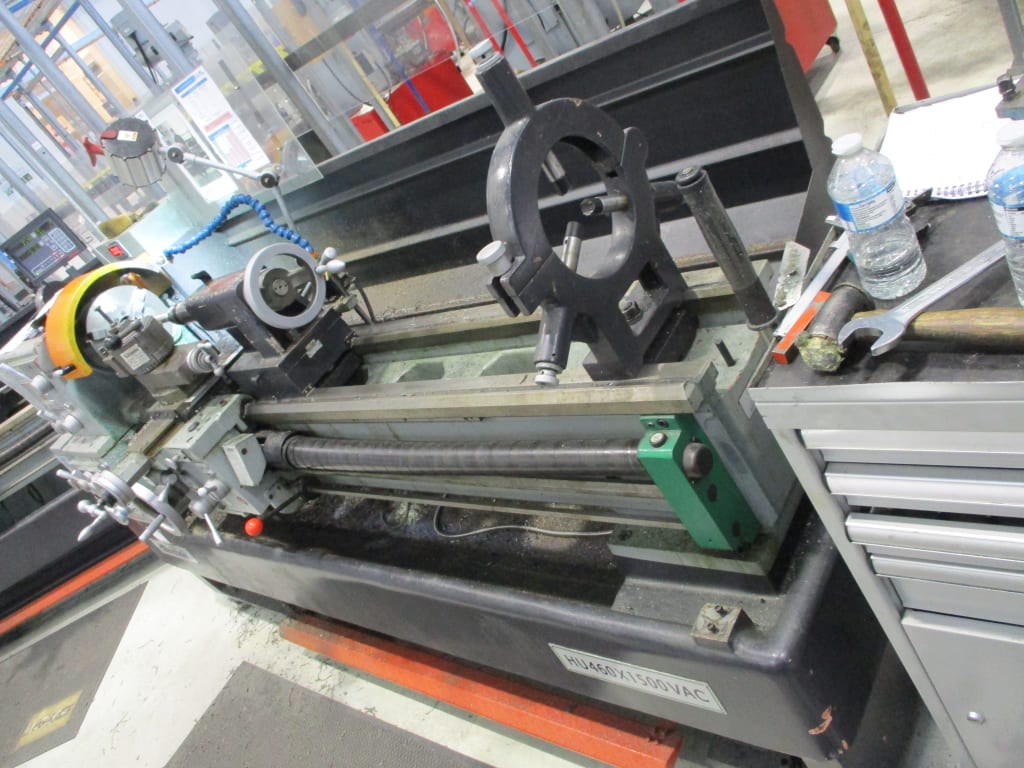

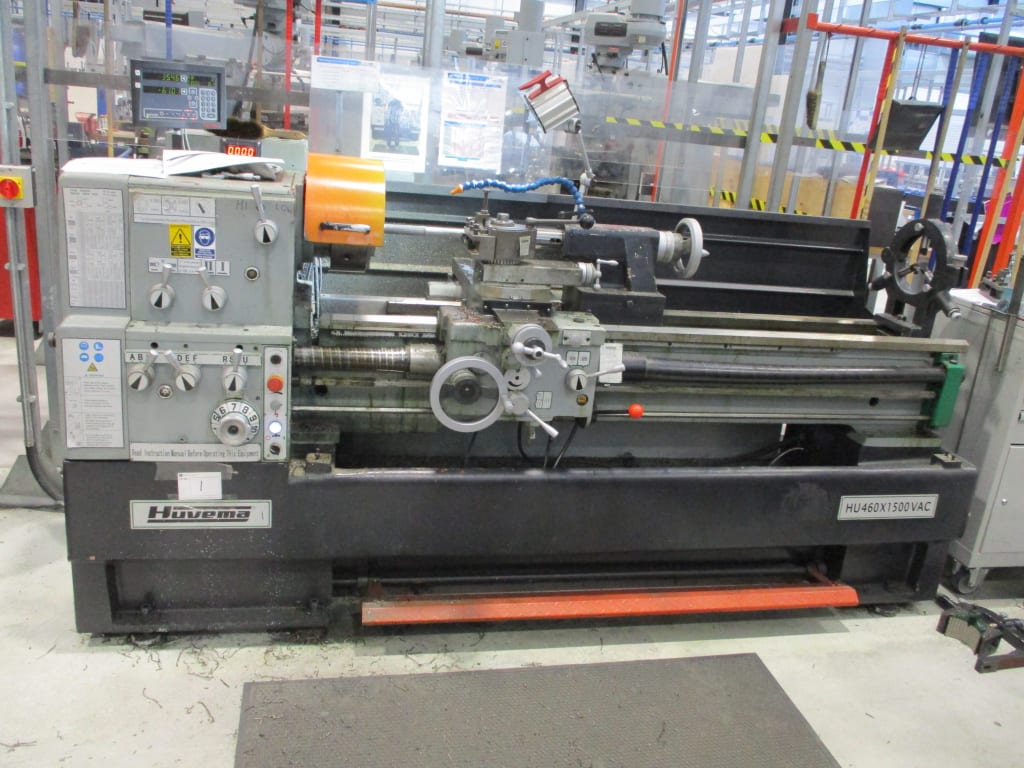

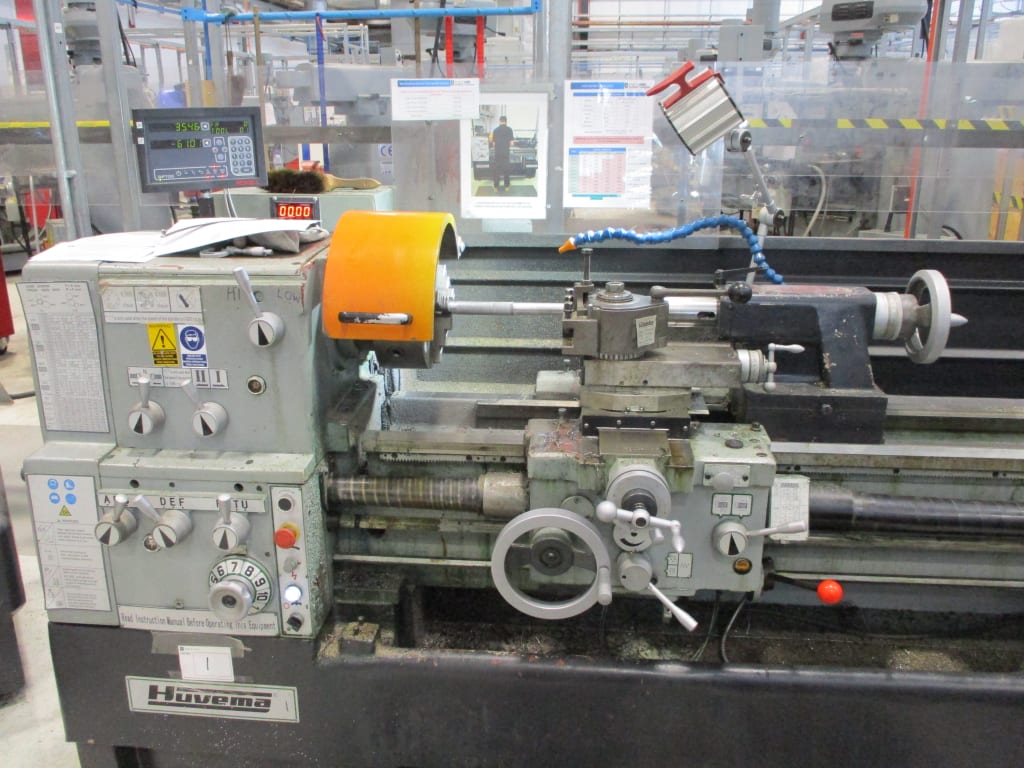

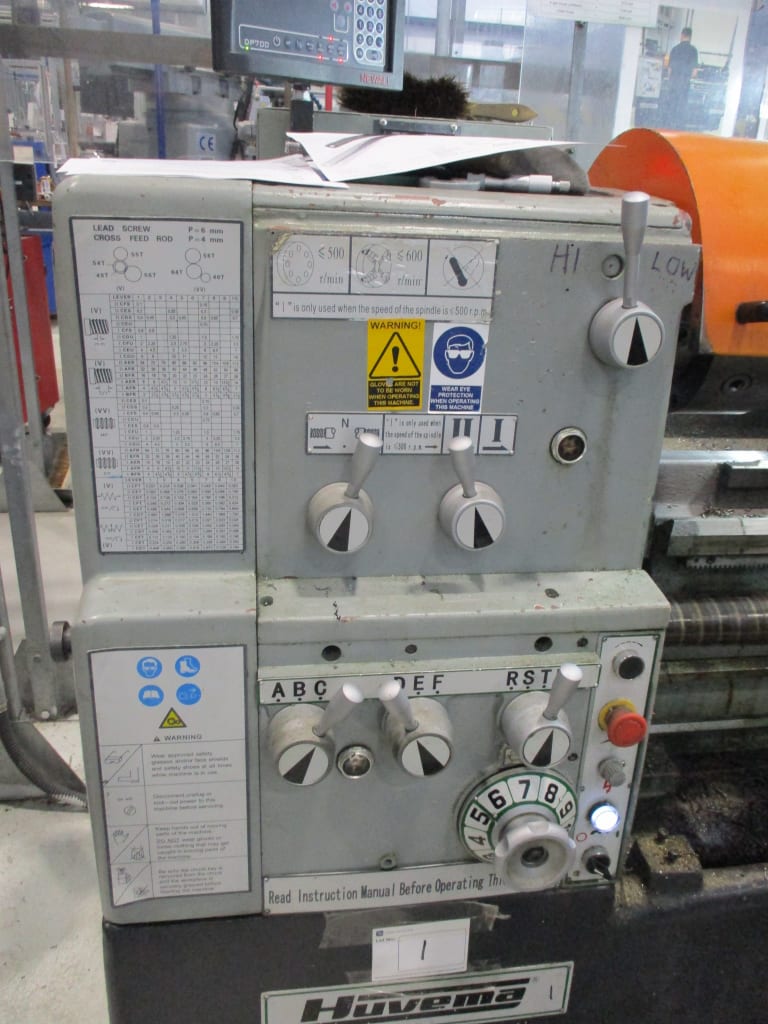

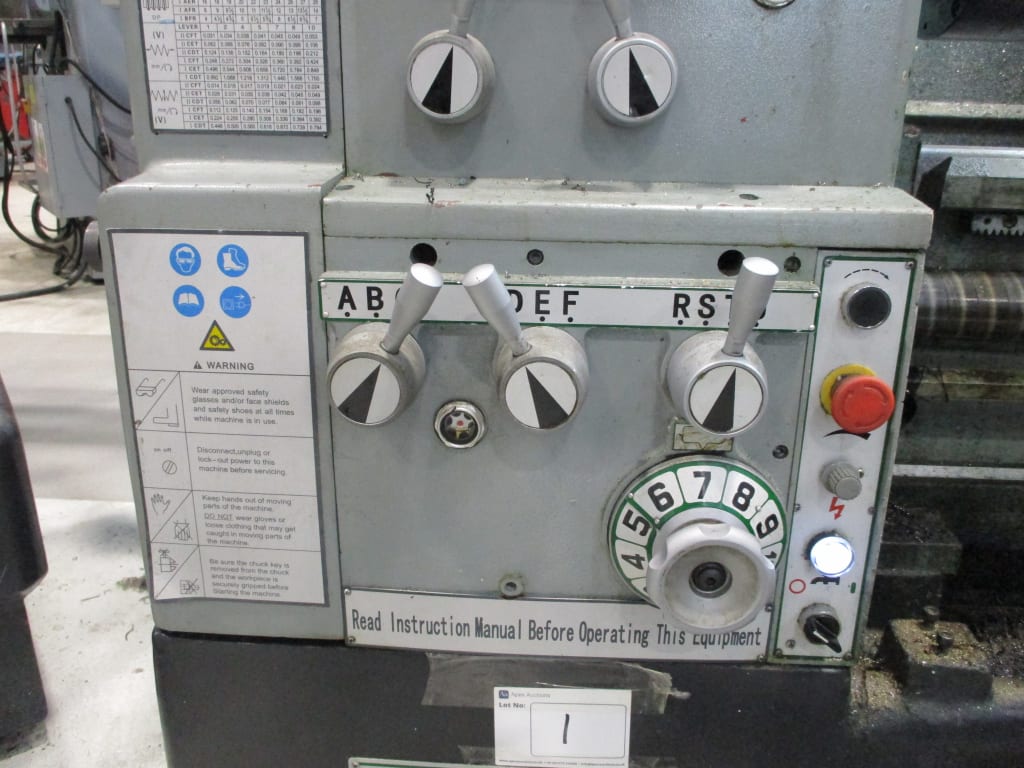

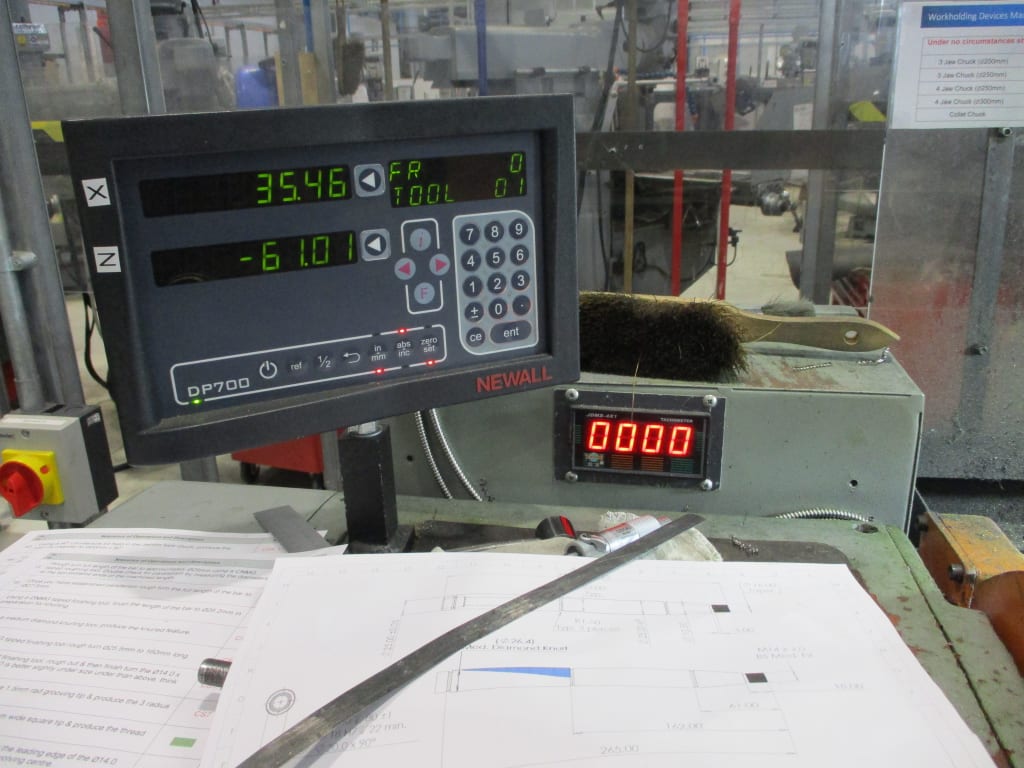

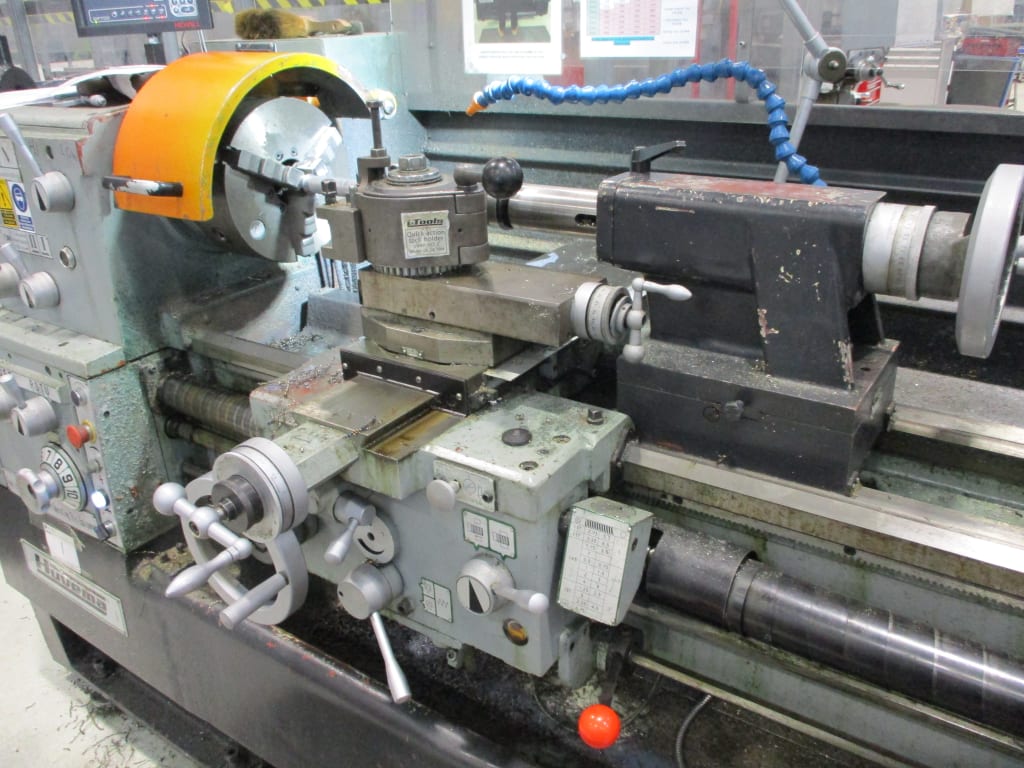

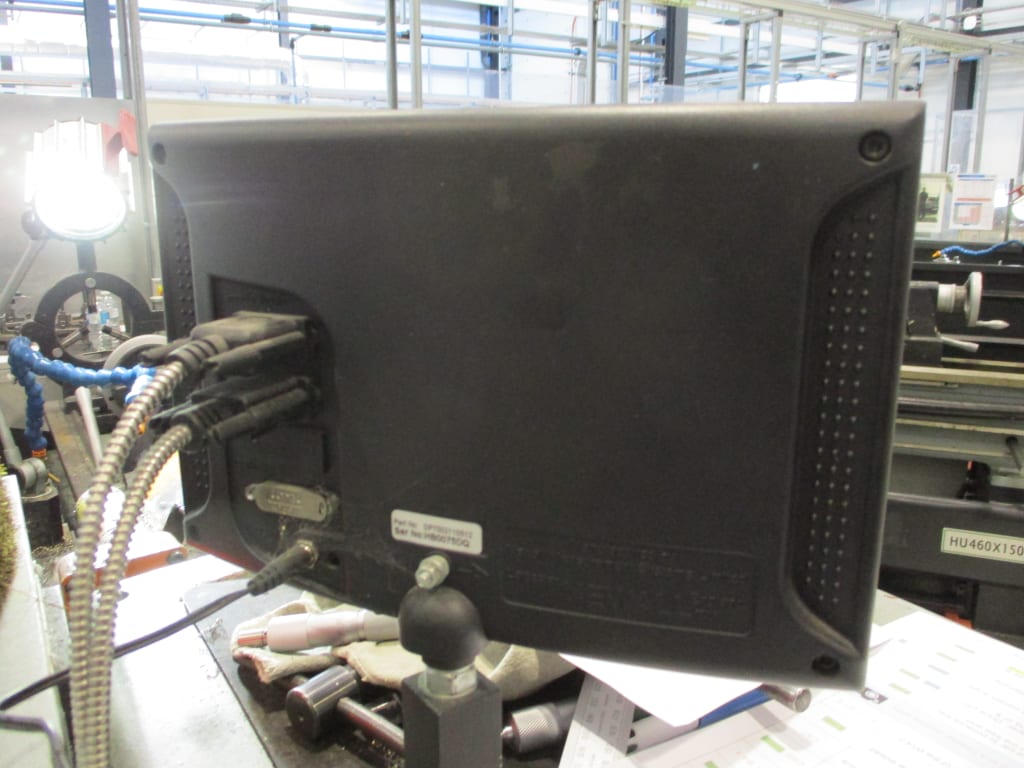

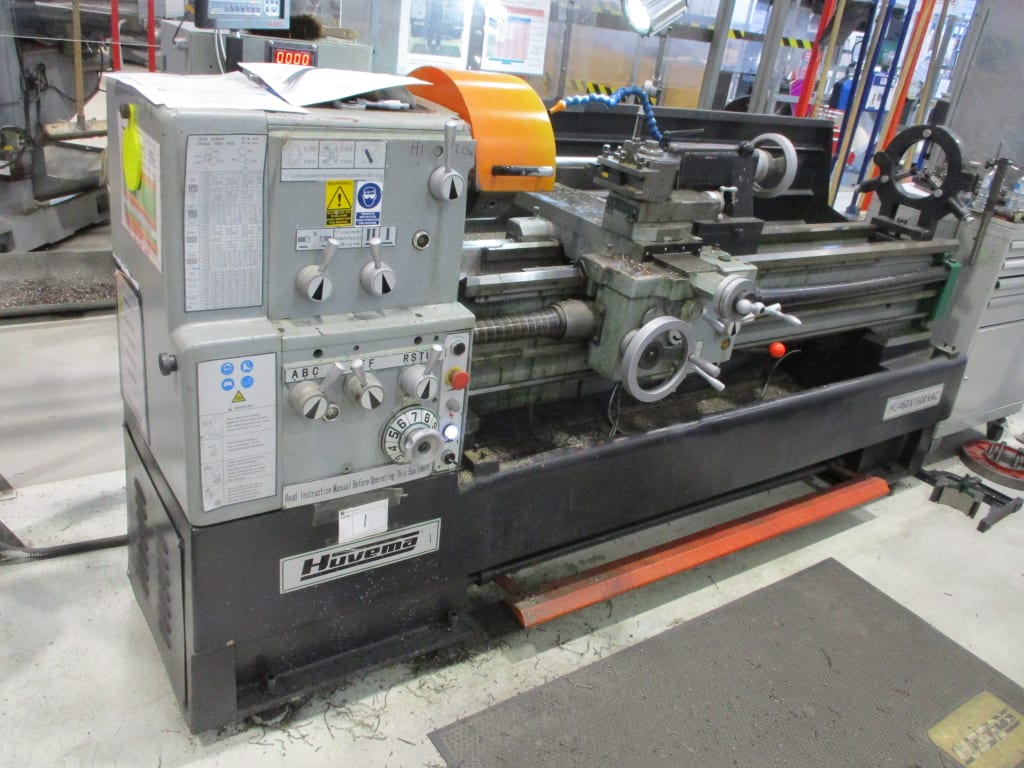

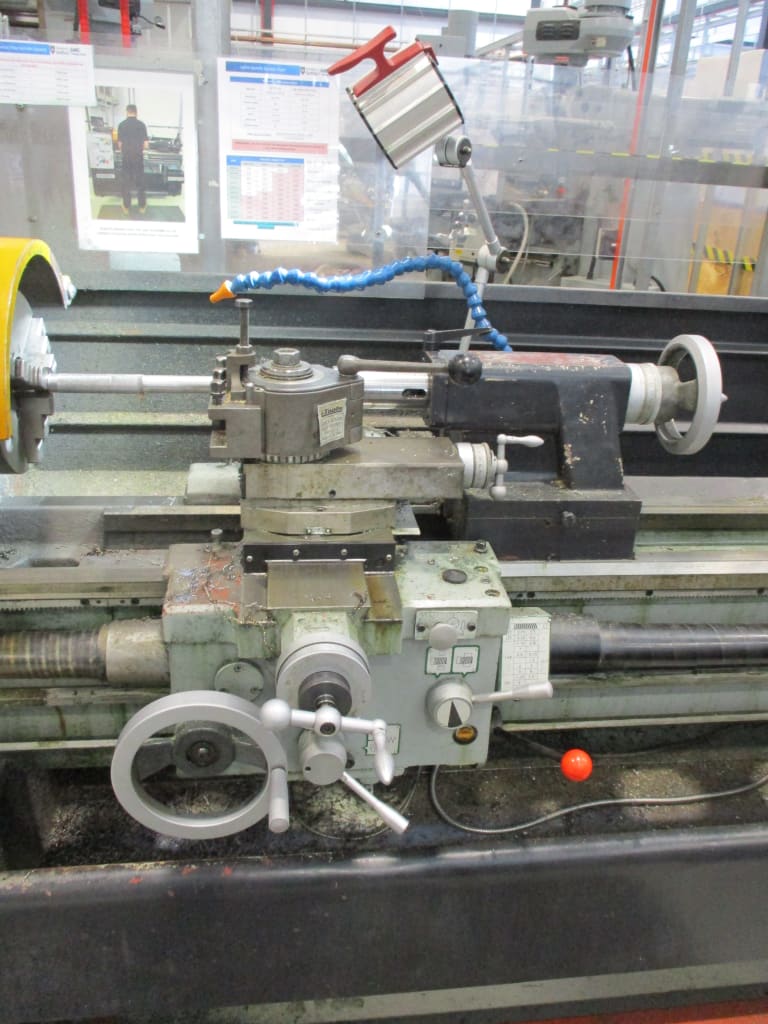

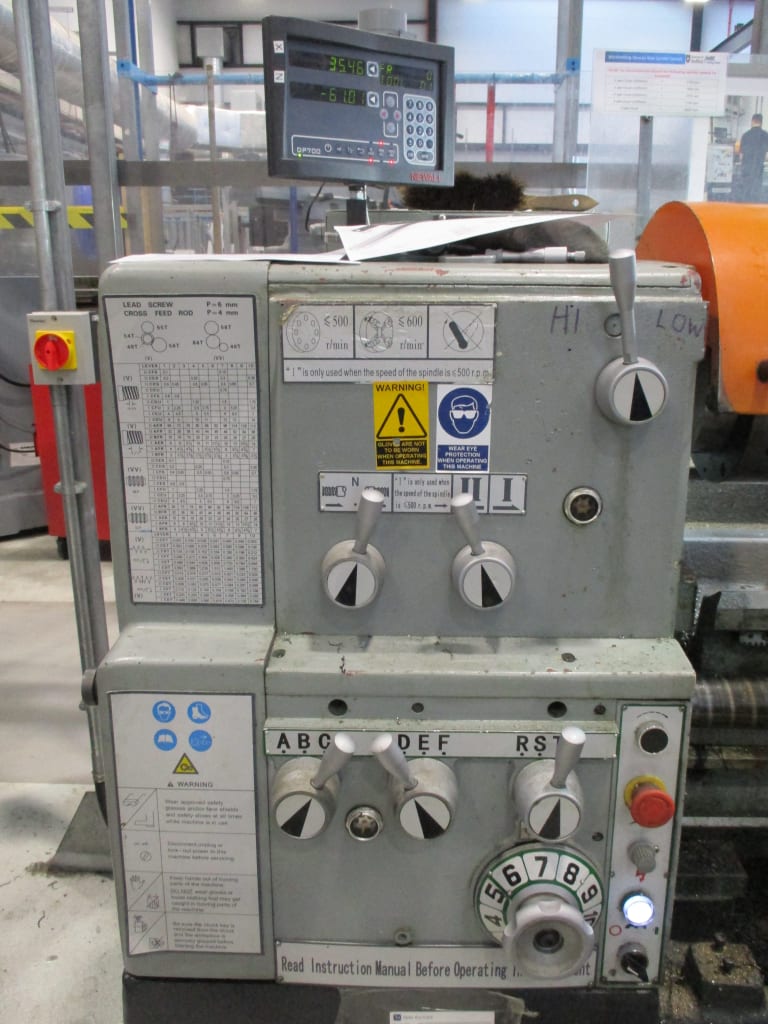

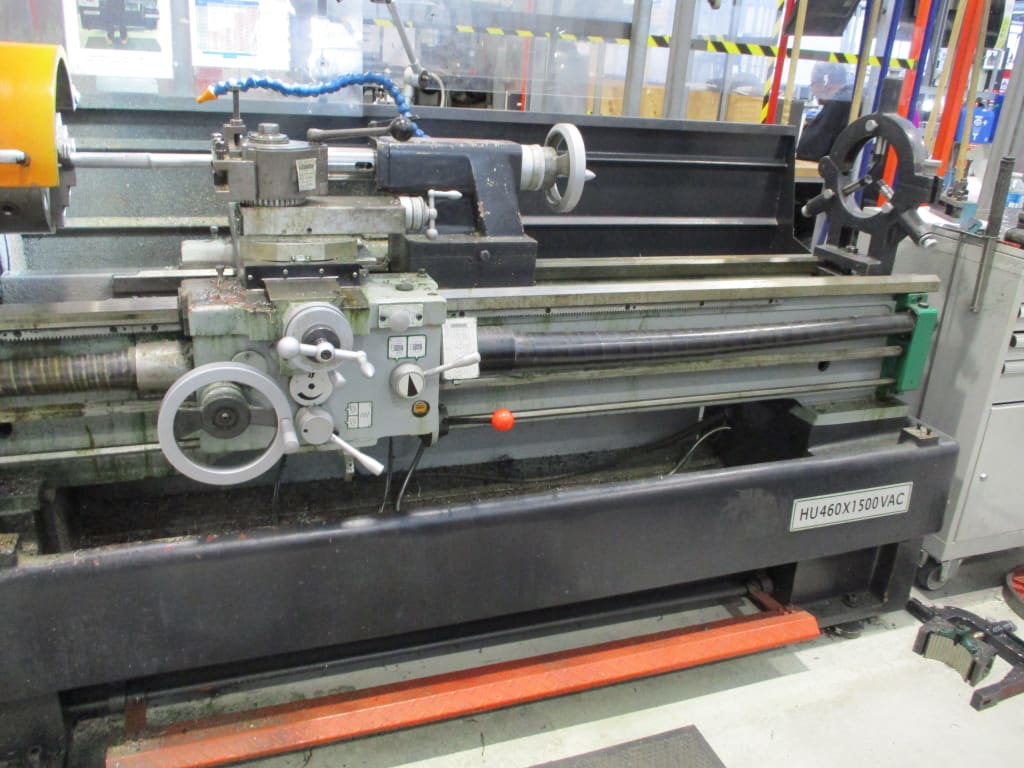

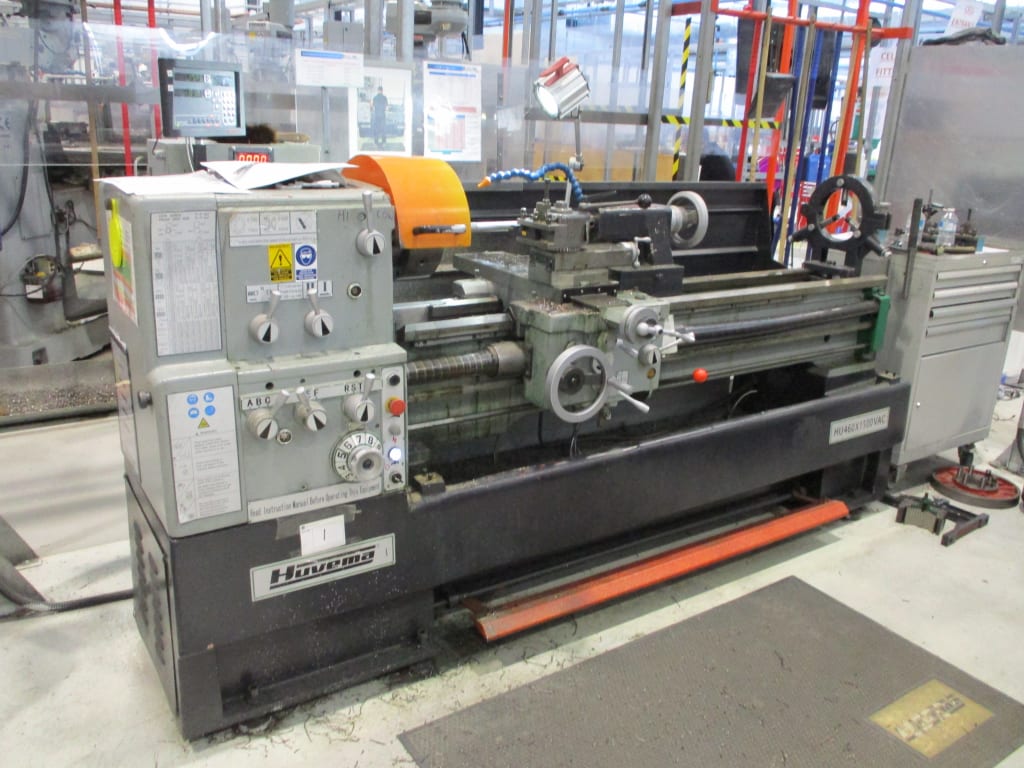

    2013 Huvema HU 460 x 1500 VAC Gap Bed Centre Lathe With Newall DP700 DRO

    Swing Over Bed Ø460mm. Swing Over Cross Slide Ø270mm. Swing In Gap Ø690mm. Distance Between Centres 1,500mm. Centre Height 230mm. Spindle Through Bore Ø80mm. Variable Speed Override (Digital Read Out) Speed Range 30-2,000rpm (Motor 7.5kW). Spindle Nose D1-8/CAMLOCK. Main Spindle Taper MT6. Cross Travel 285mm. Top Slide Travel 128mm. Longitudinal Feed 0.031-1.7mm/rev, Cross Feed Range 0.014-0.784mm/rev. Width Of Bed 300mm. Tailstock Quill Travel 130mm, Tailstock Taper MT4, Tailstock Quill 60mm. Threading Metric 0.1-14mm. Threading Inch 2-112tpi. QTC. Voltage 400V. S/No. 30617 1781 (2013).
    View Item
  • 2-0.jpg
    site

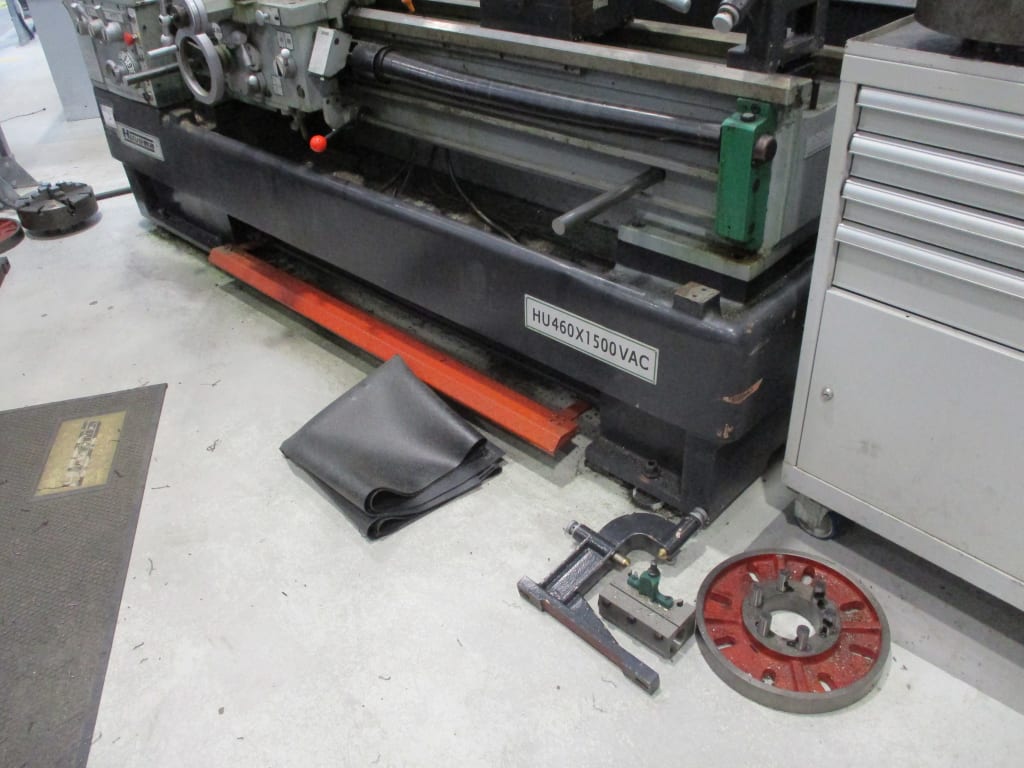

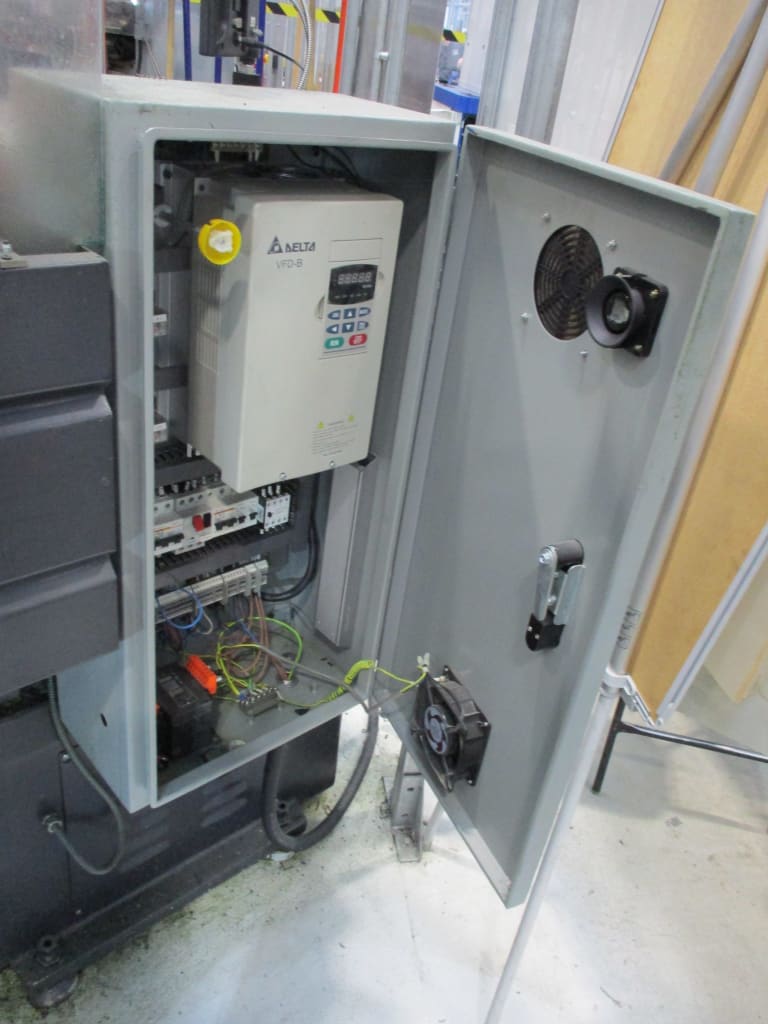

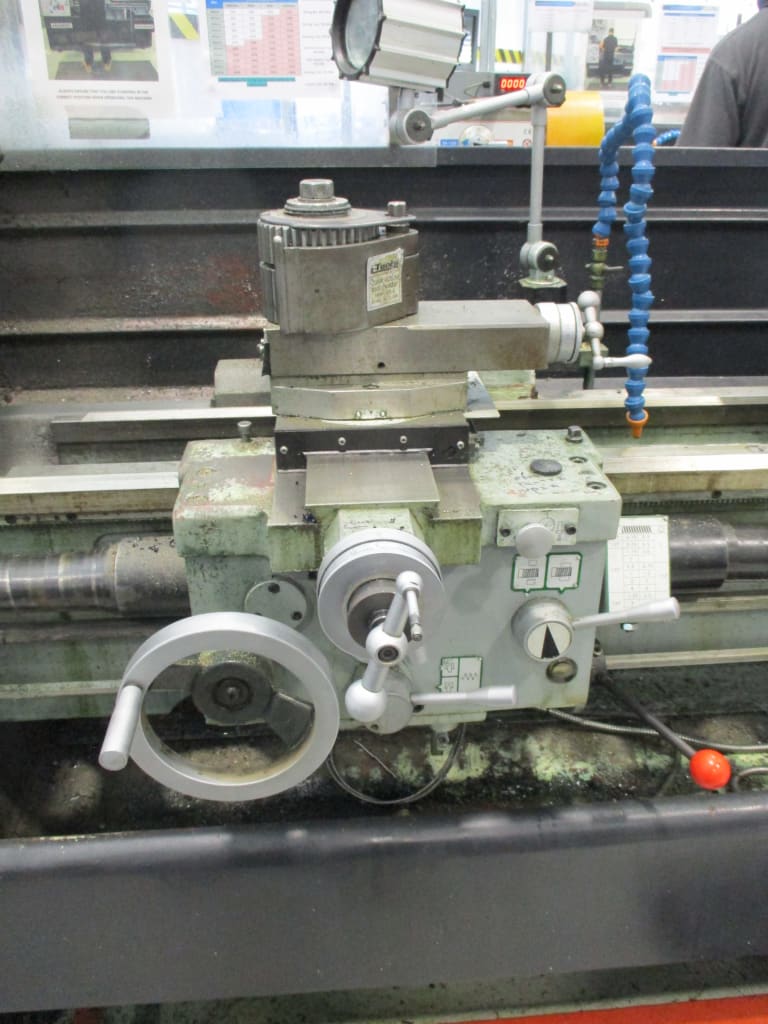

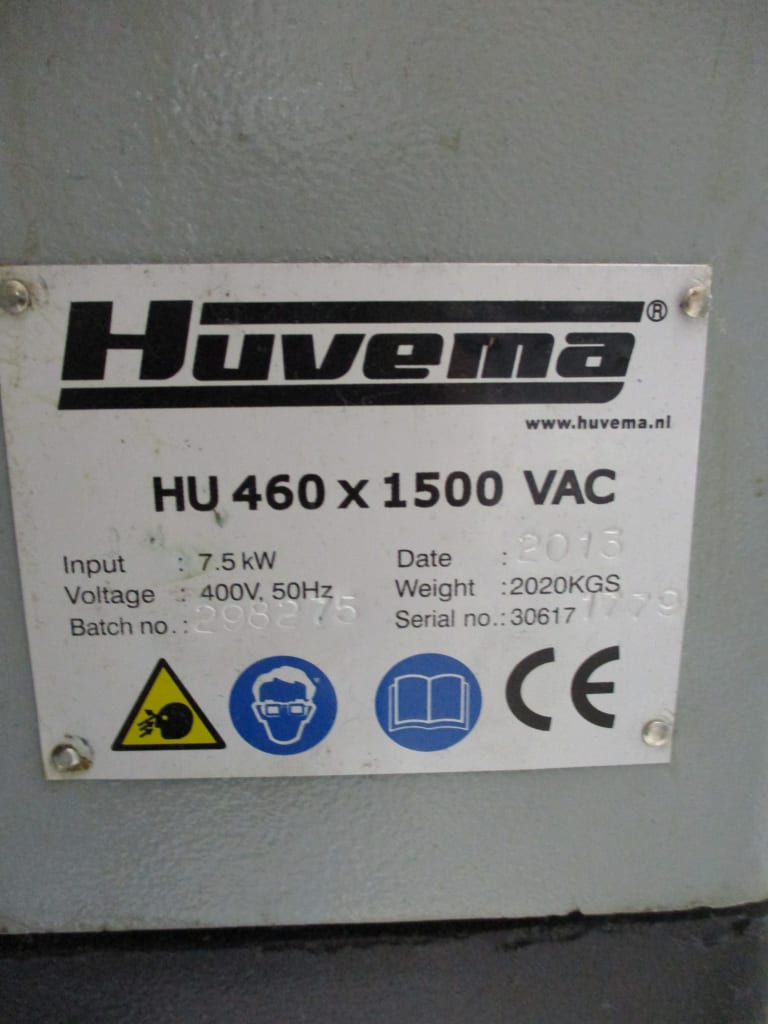

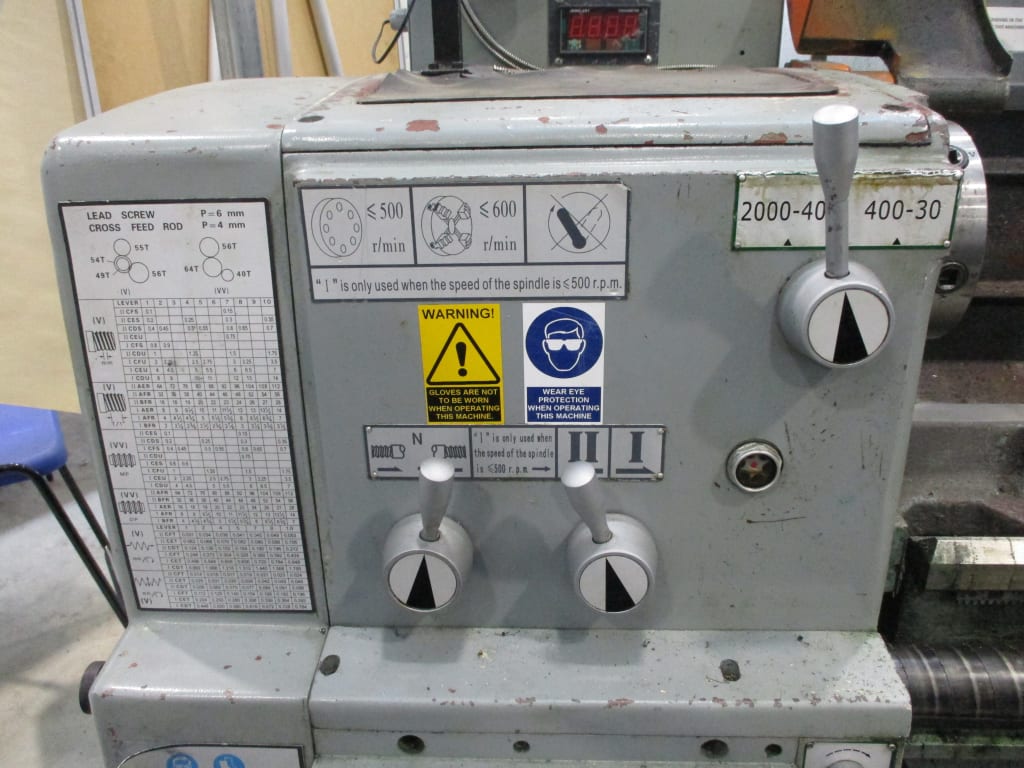

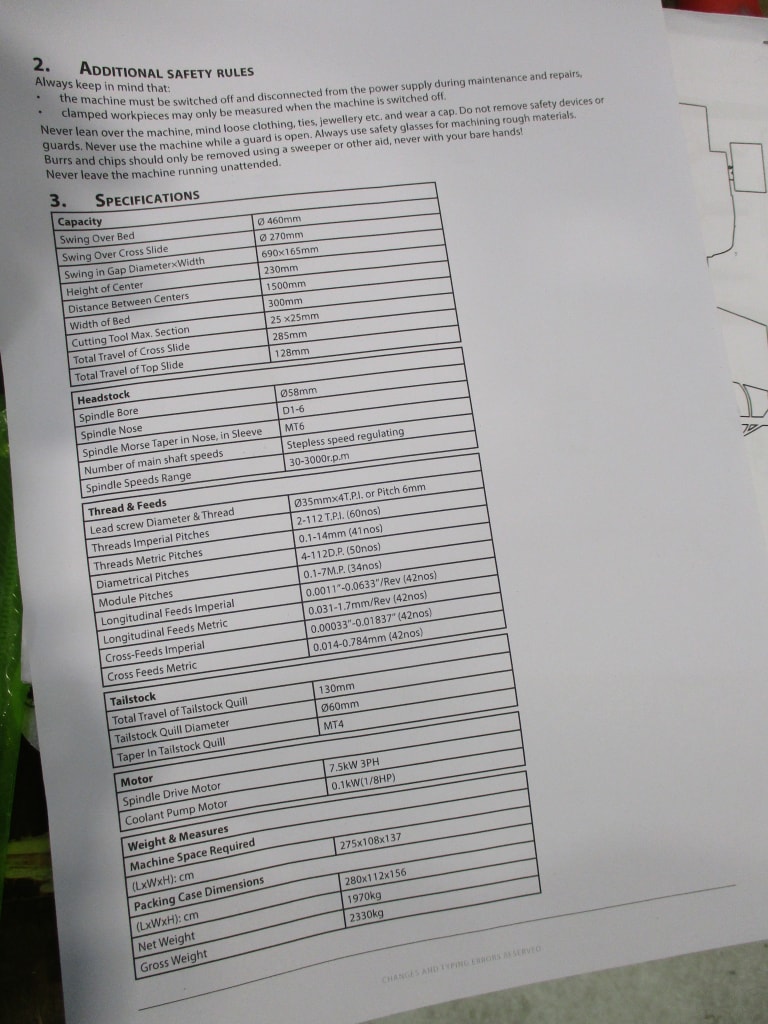

    LOT 2

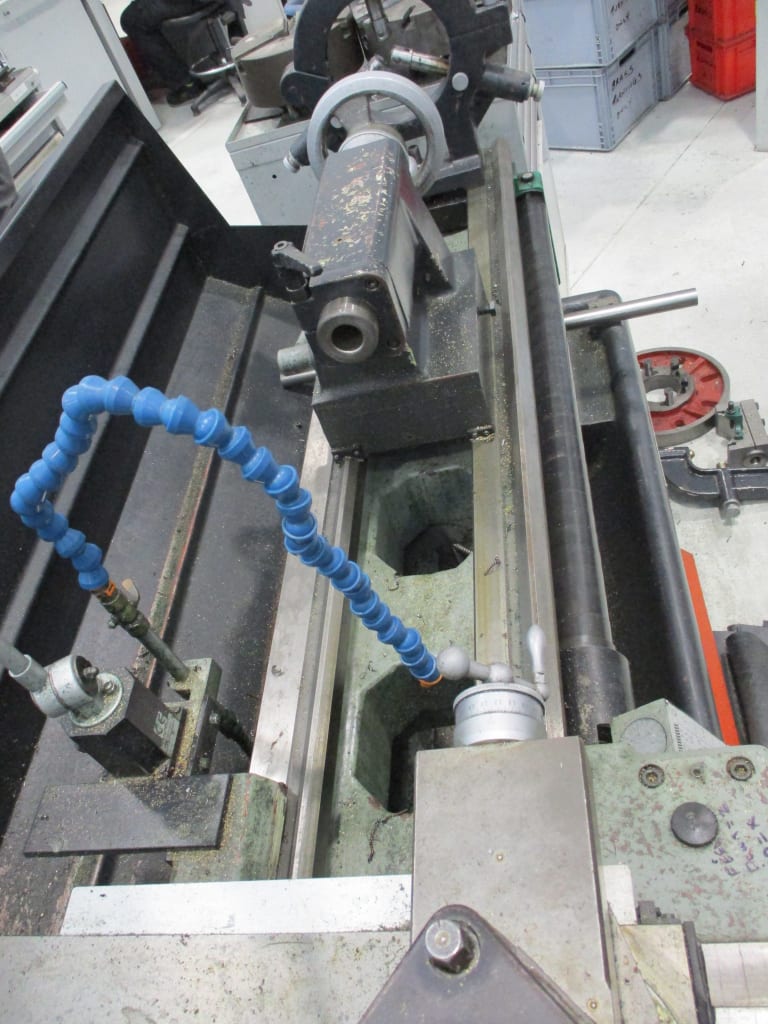

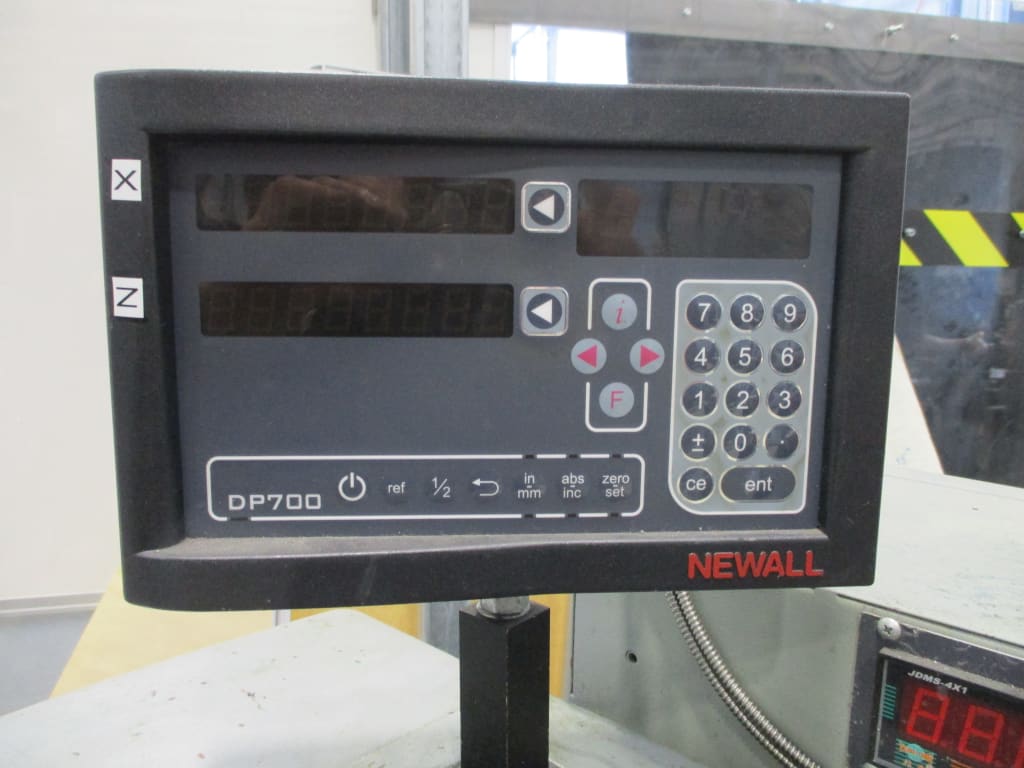

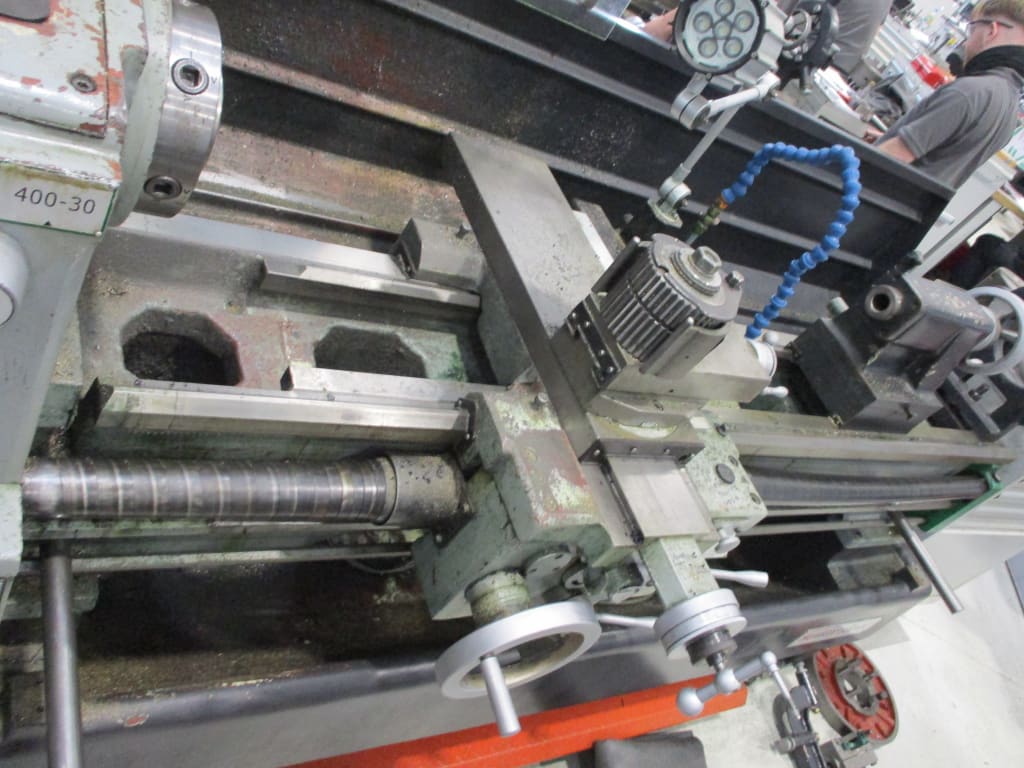

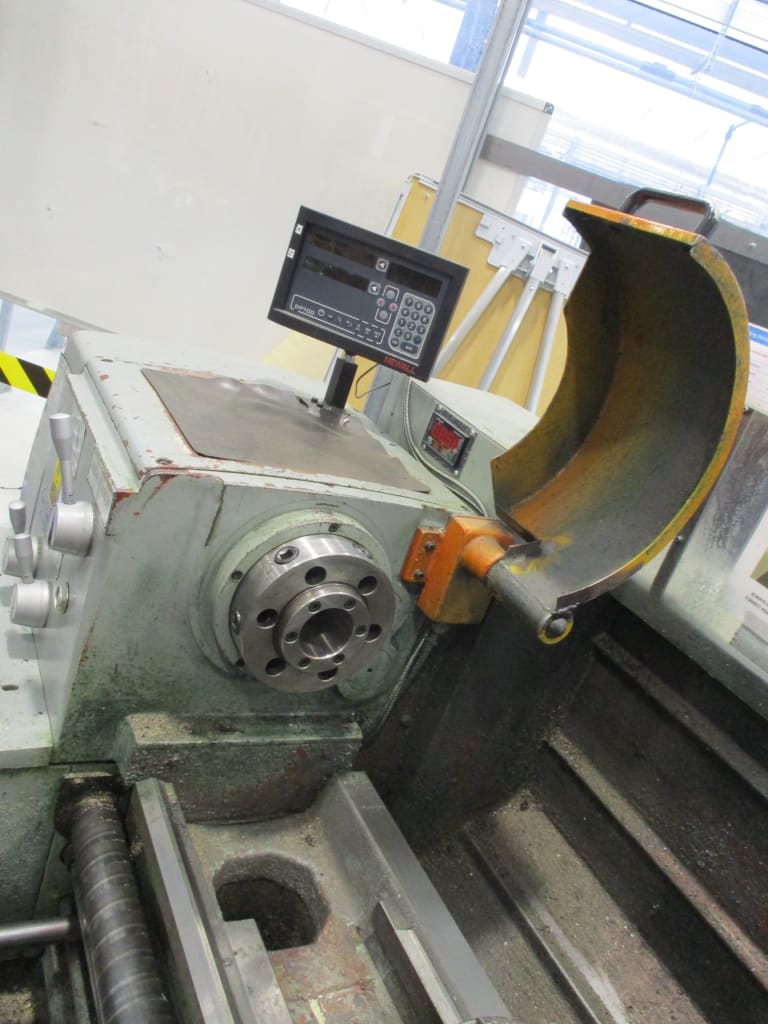

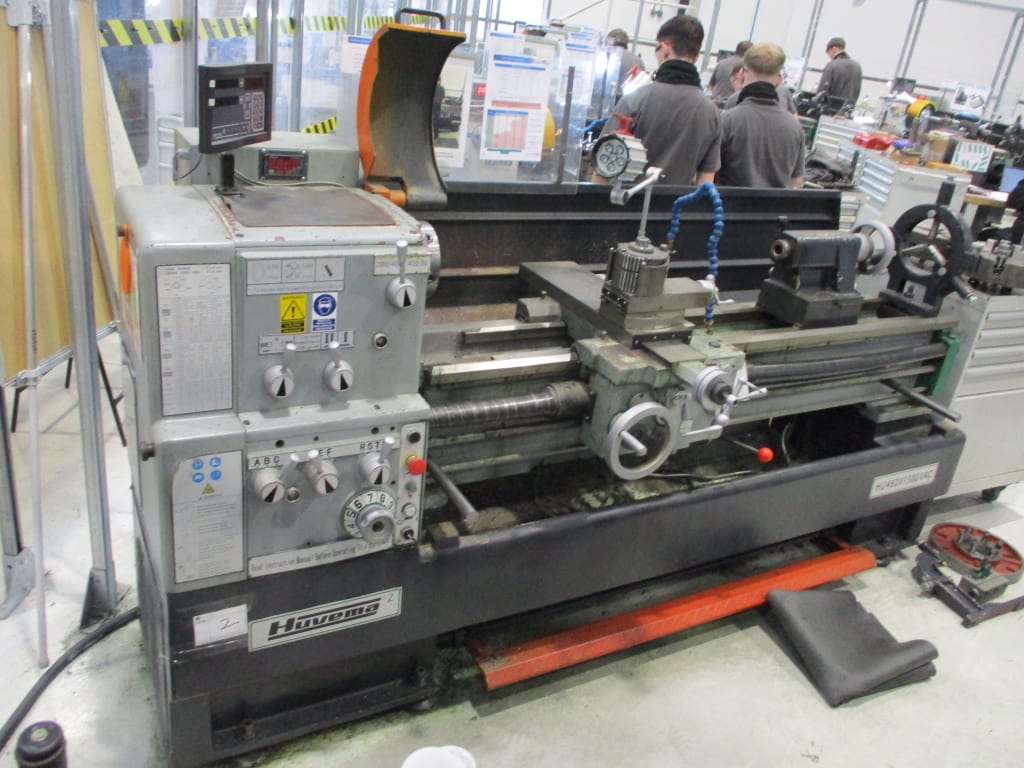

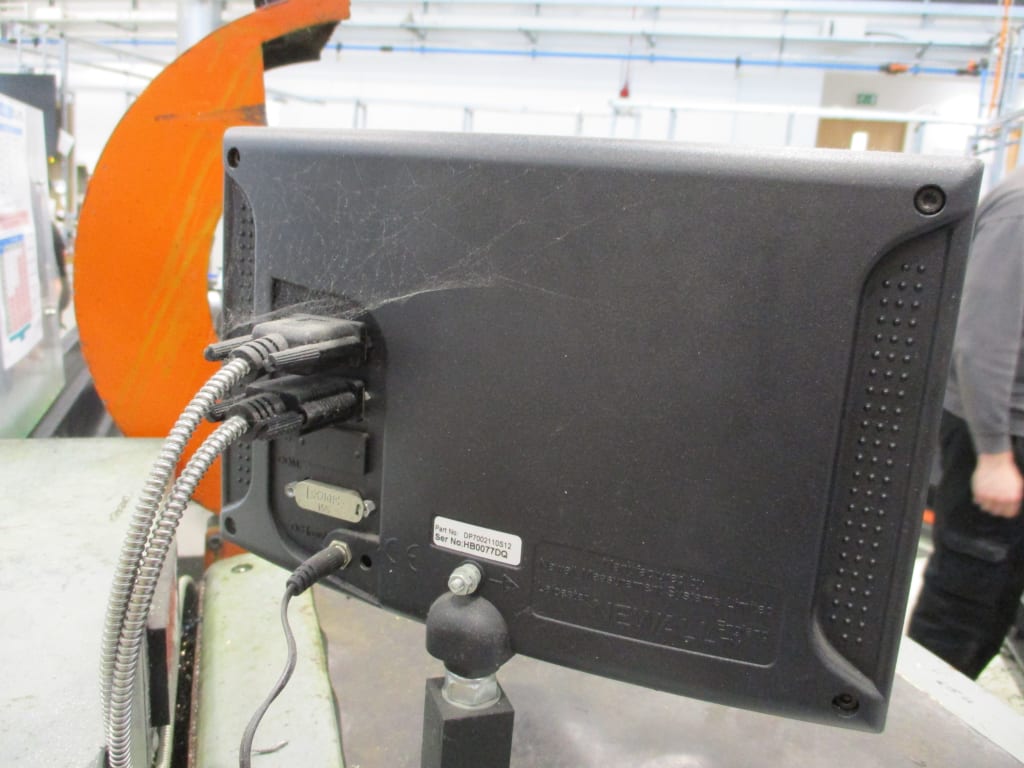

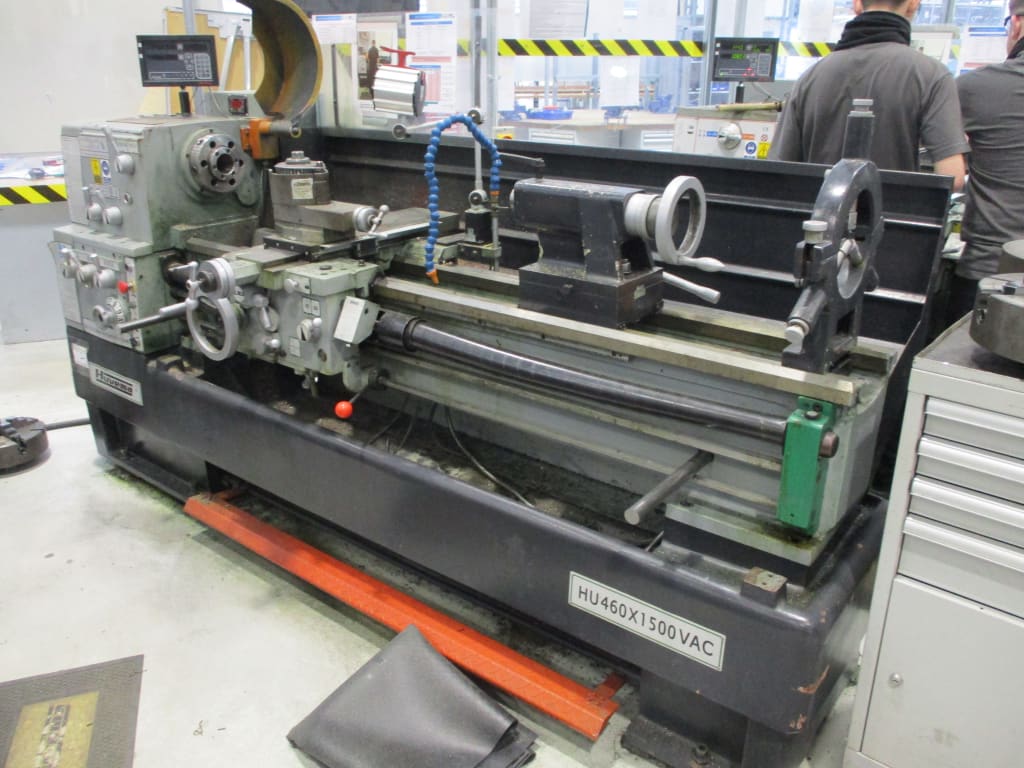

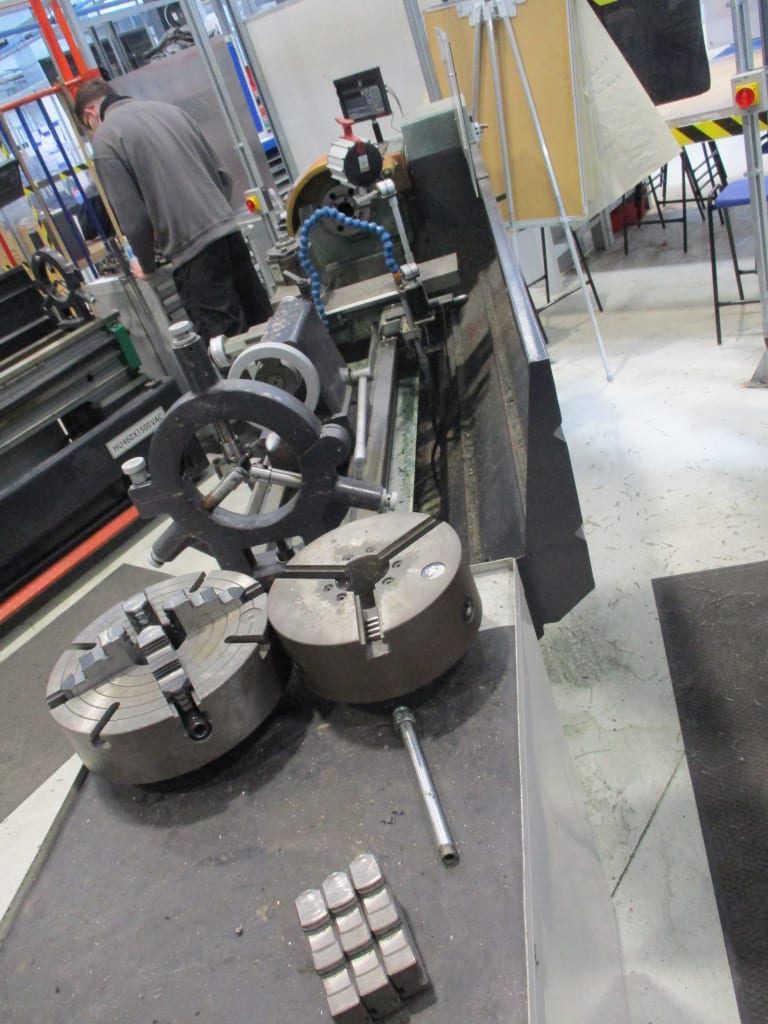

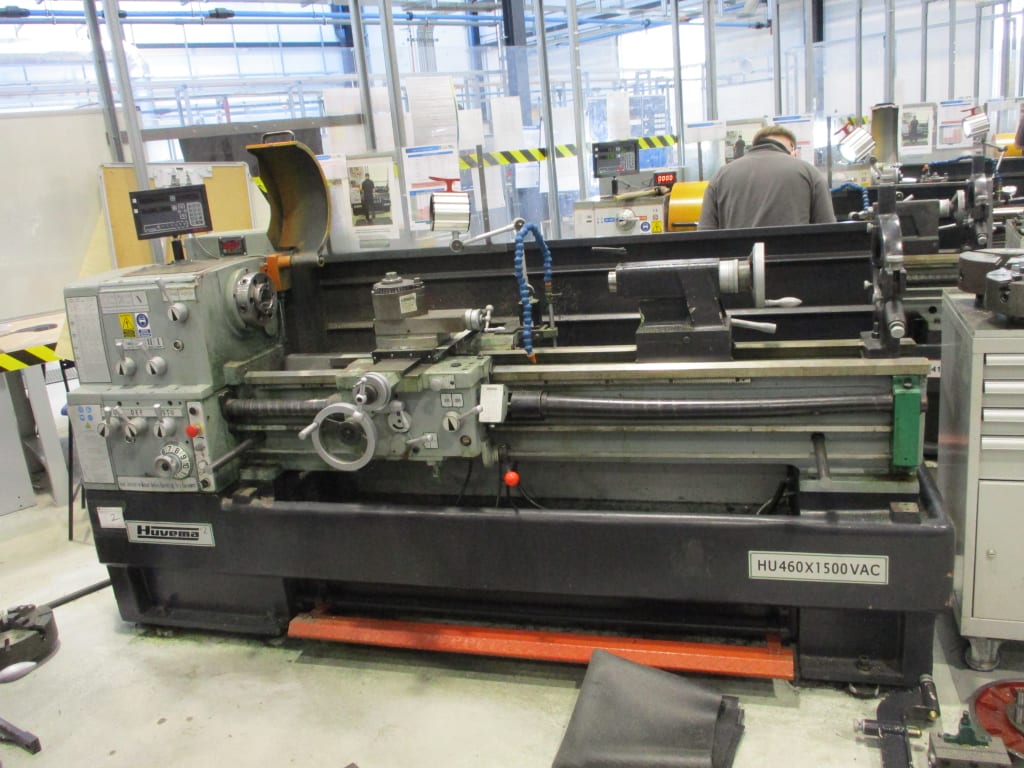

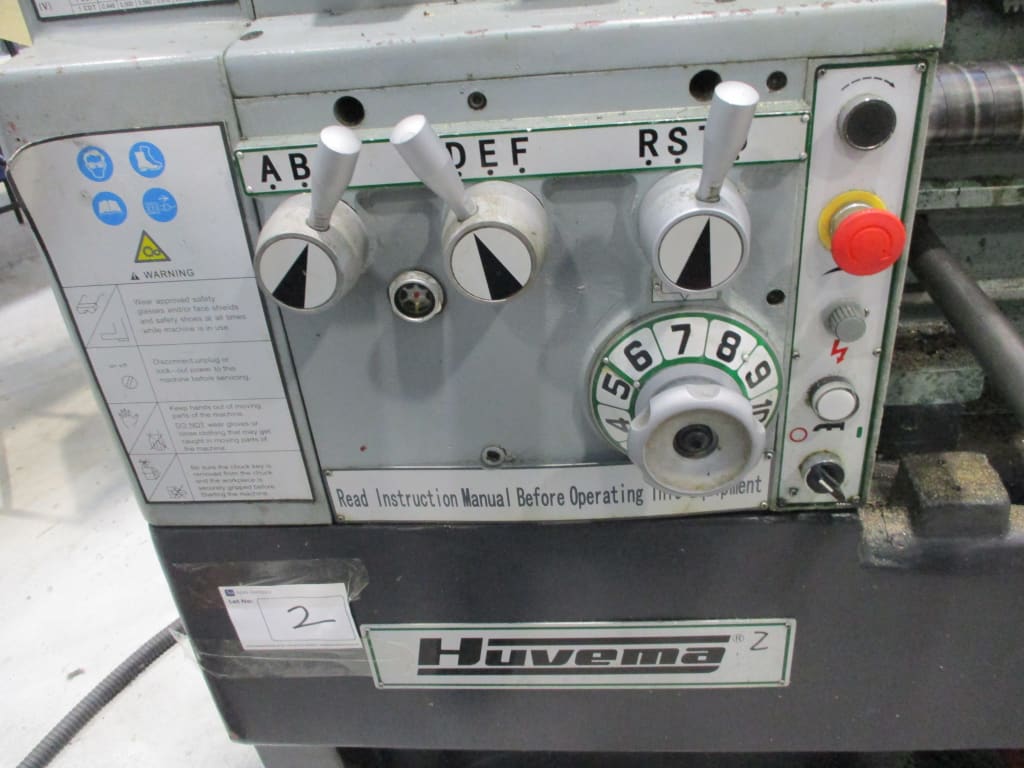

    2013 Huvema HU 460 x 1500 VAC Gap Bed Centre Lathe With Newall DP700 DRO

    Swing Over Bed Ø460mm. Swing Over Cross Slide Ø270mm. Swing In Gap Ø690mm. Distance Between Centres 1,500mm. Centre Height 230mm. Spindle Through Bore Ø80mm. Variable Speed Override (Digital Read Out) Speed Range 30-2,000rpm (Motor 7,5kW). Spindle Nose D1-8/CAMLOCK. Main Spindle Taper MT6. Cross Travel 285mm. Top Slide Travel 128mm. Longitudinal Feed 0.031-1.7mm/rev, Cross Feed Range 0.014-0.784mm/rev. Width Of Bed 300mm. Tailstock Quill Travel 130mm, Tailstock Taper MT4, Tailstock Quill 60mm. Threading Metric 0.1-14mm. Threading Inch 2-112tpi. QTC. Voltage 400V. S/No. 30617 1779 (2013).
    View Item
  • 3-0.jpg
    site

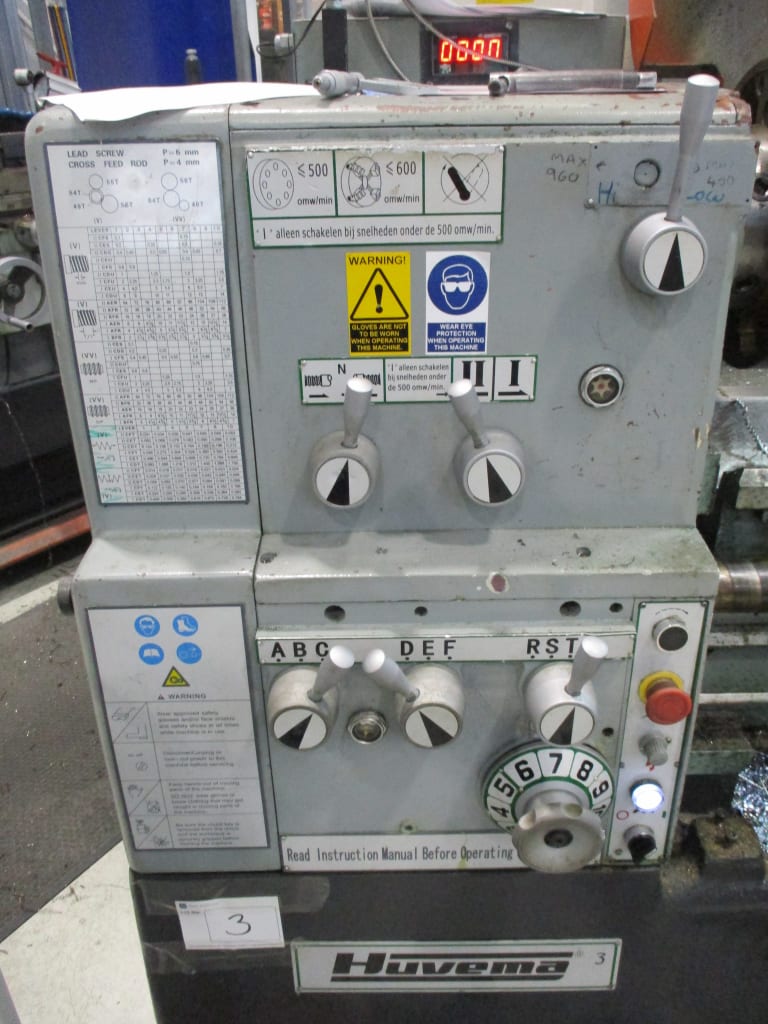

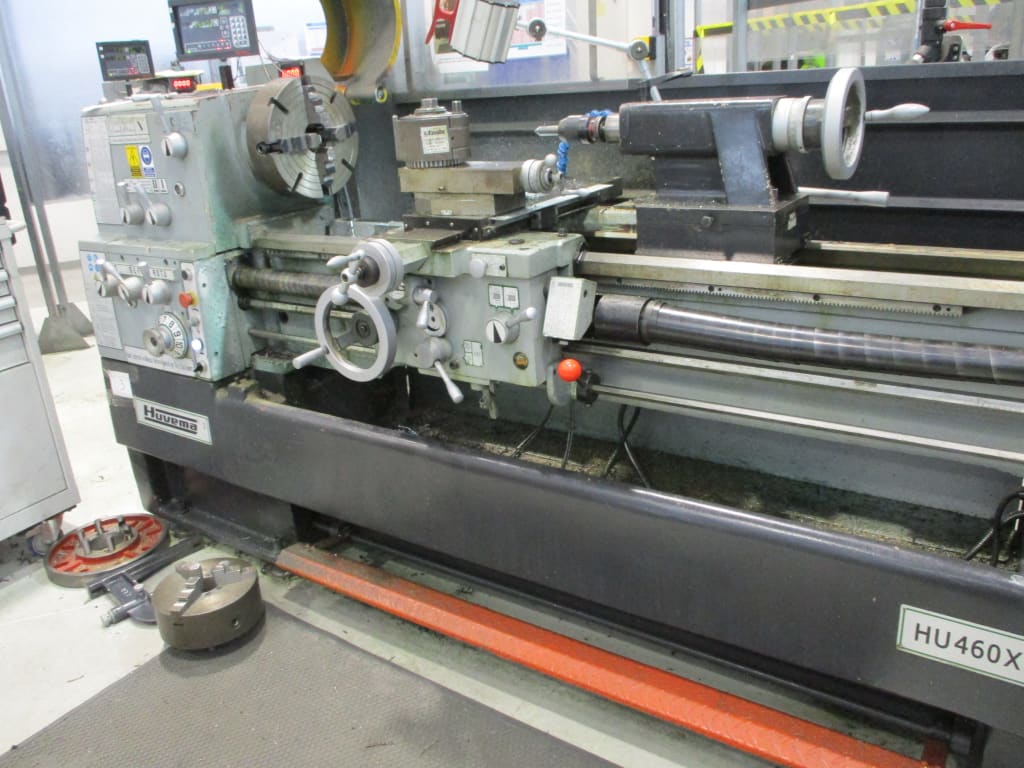

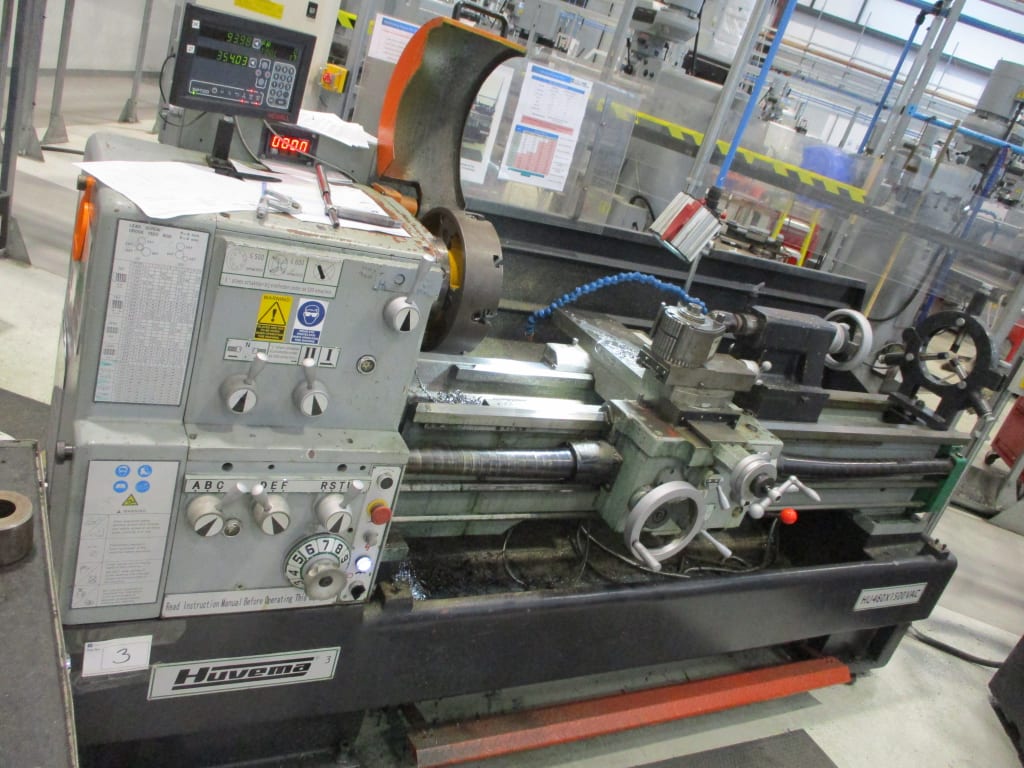

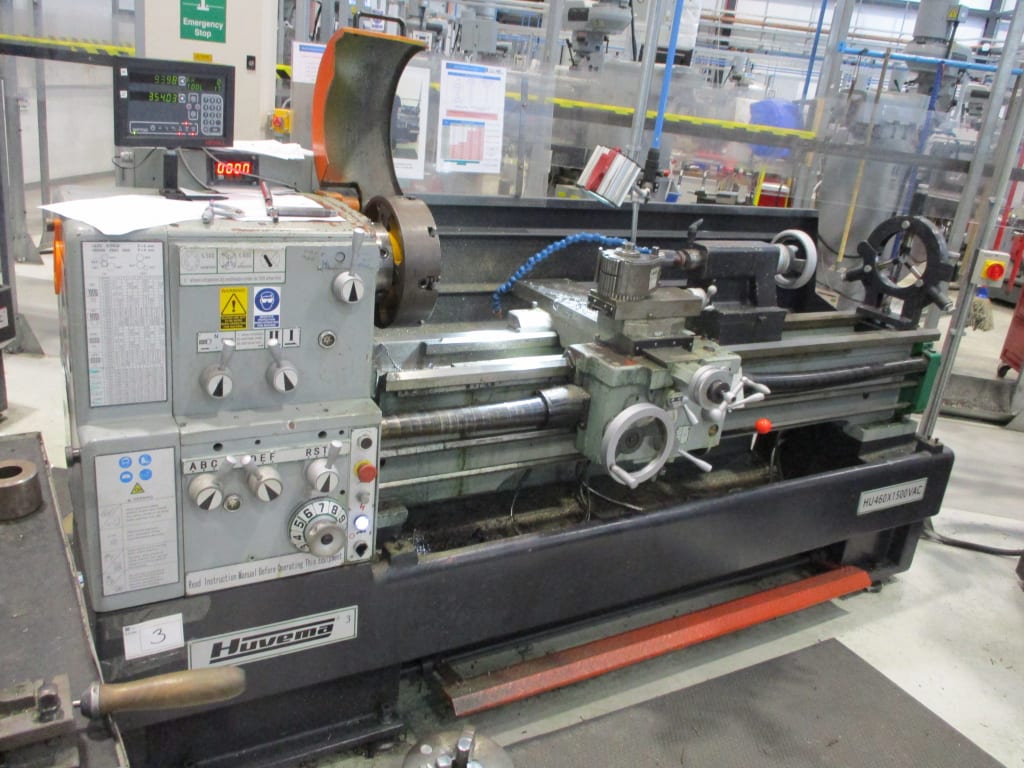

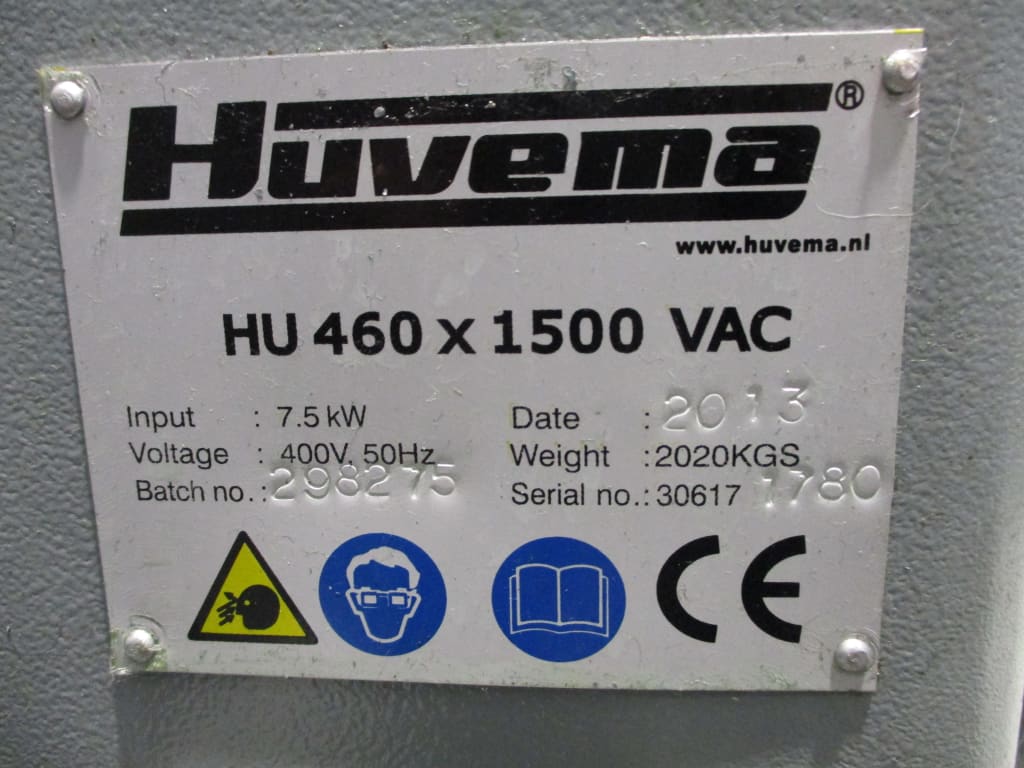

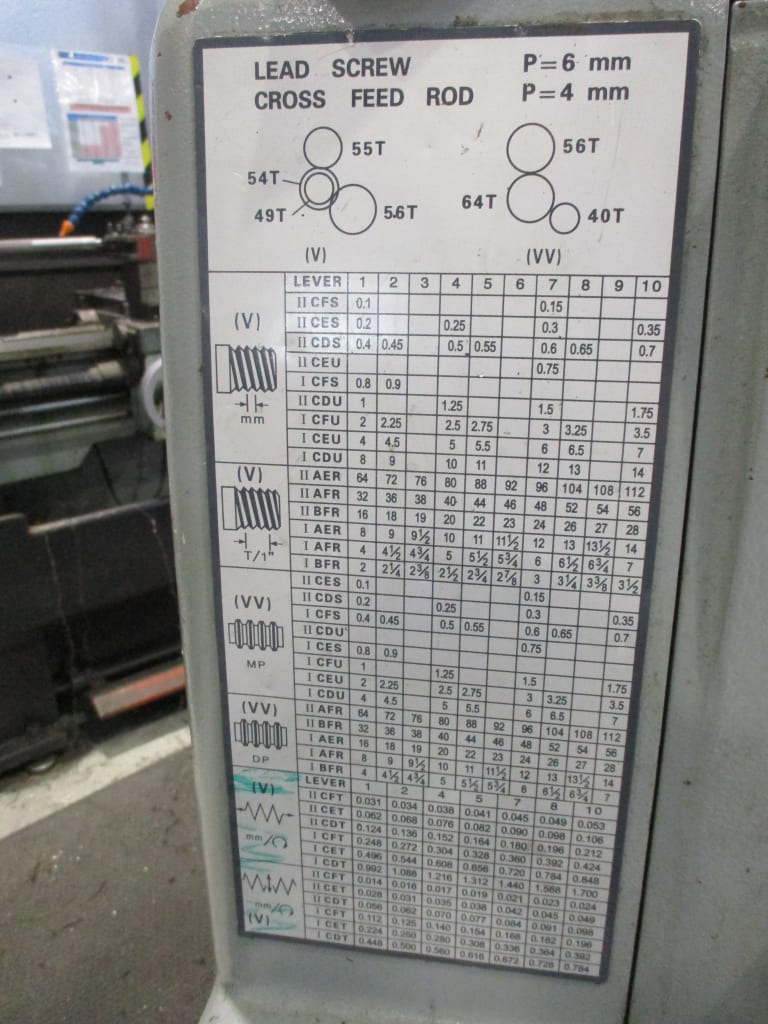

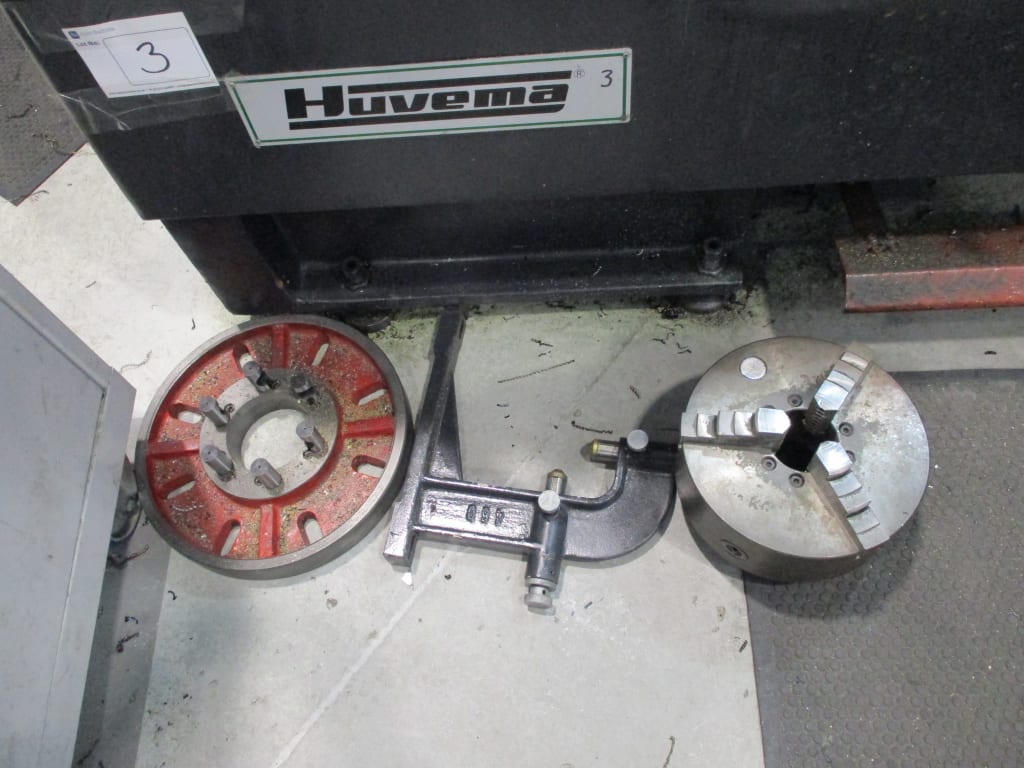

    LOT 3

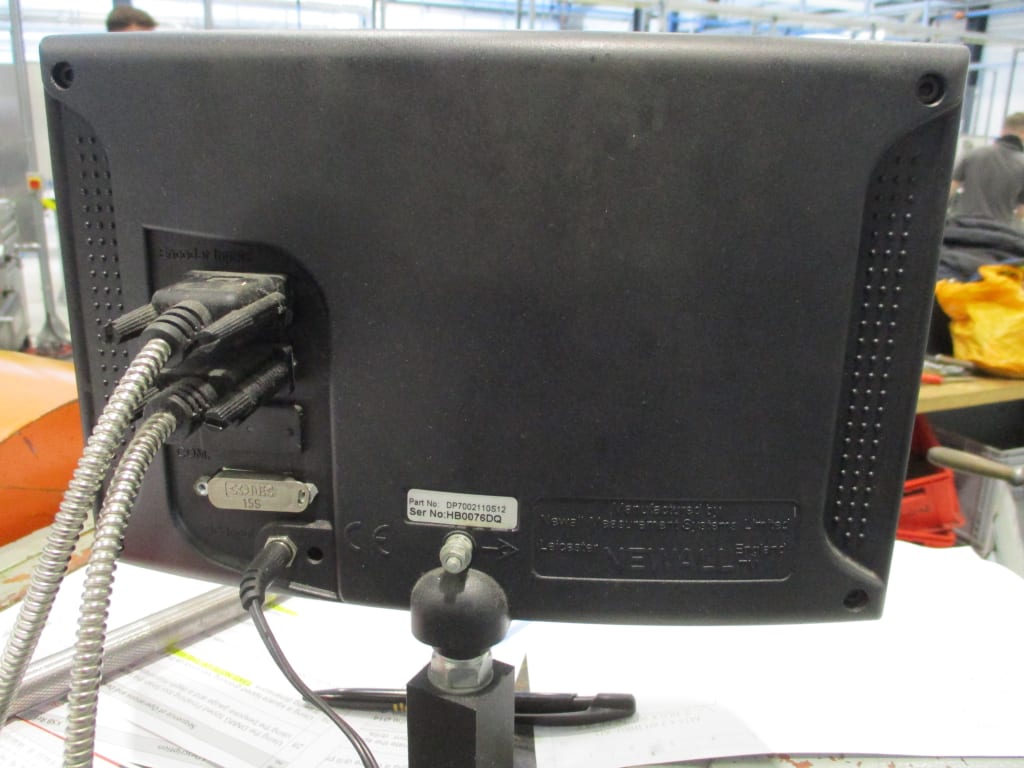

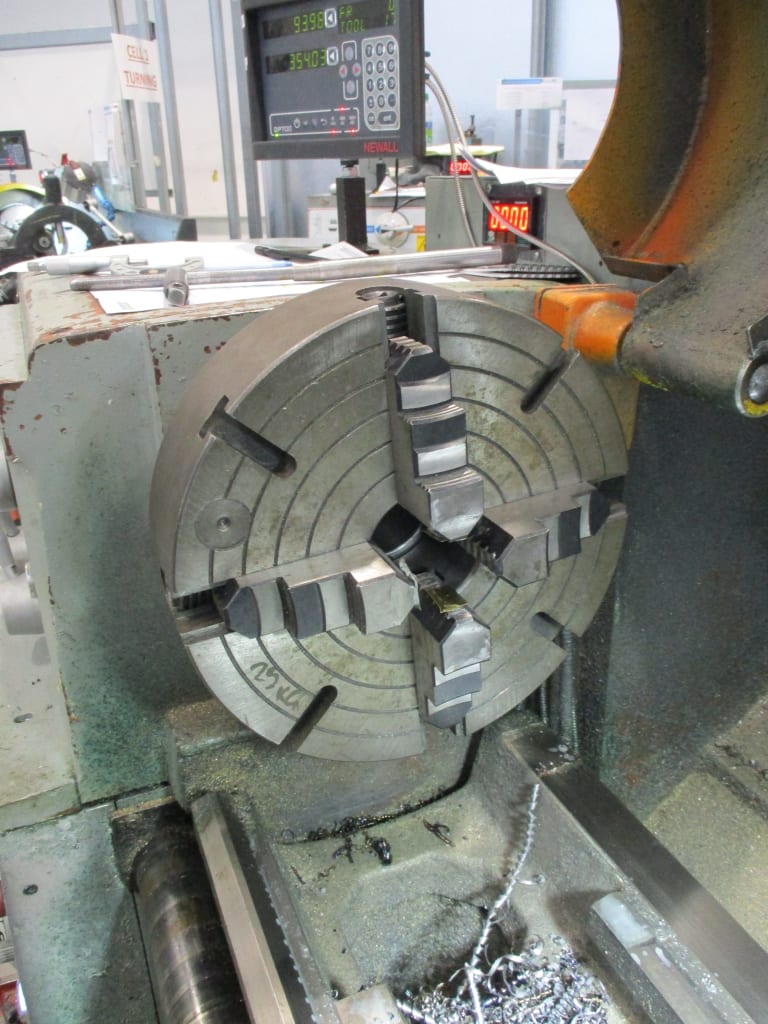

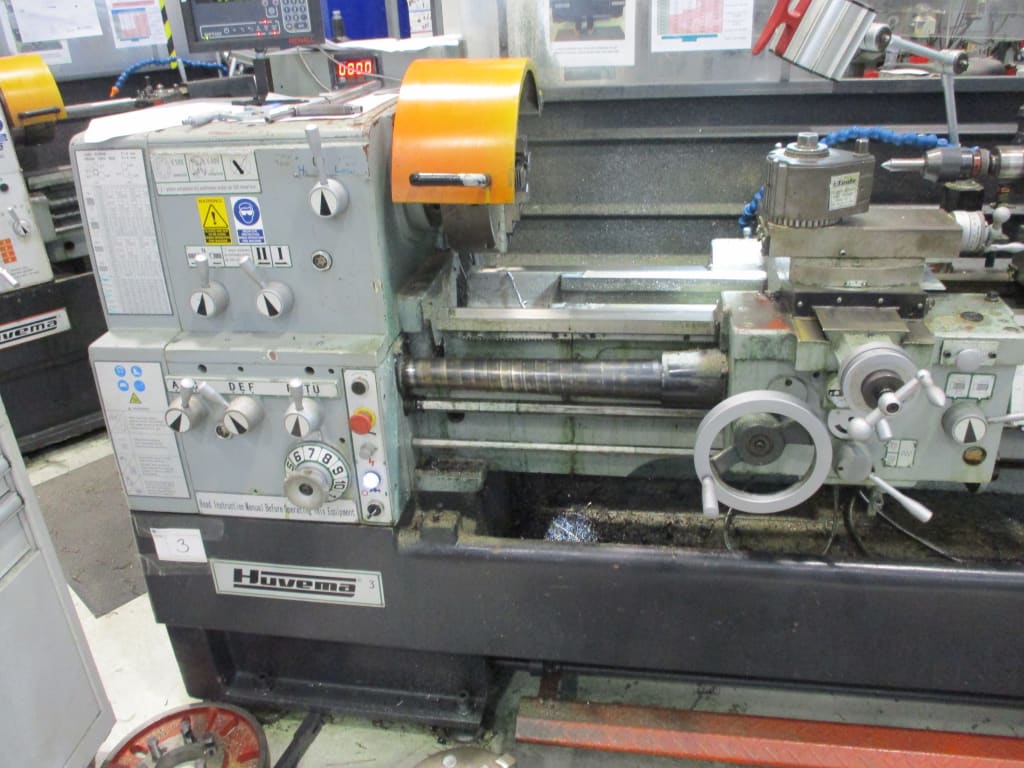

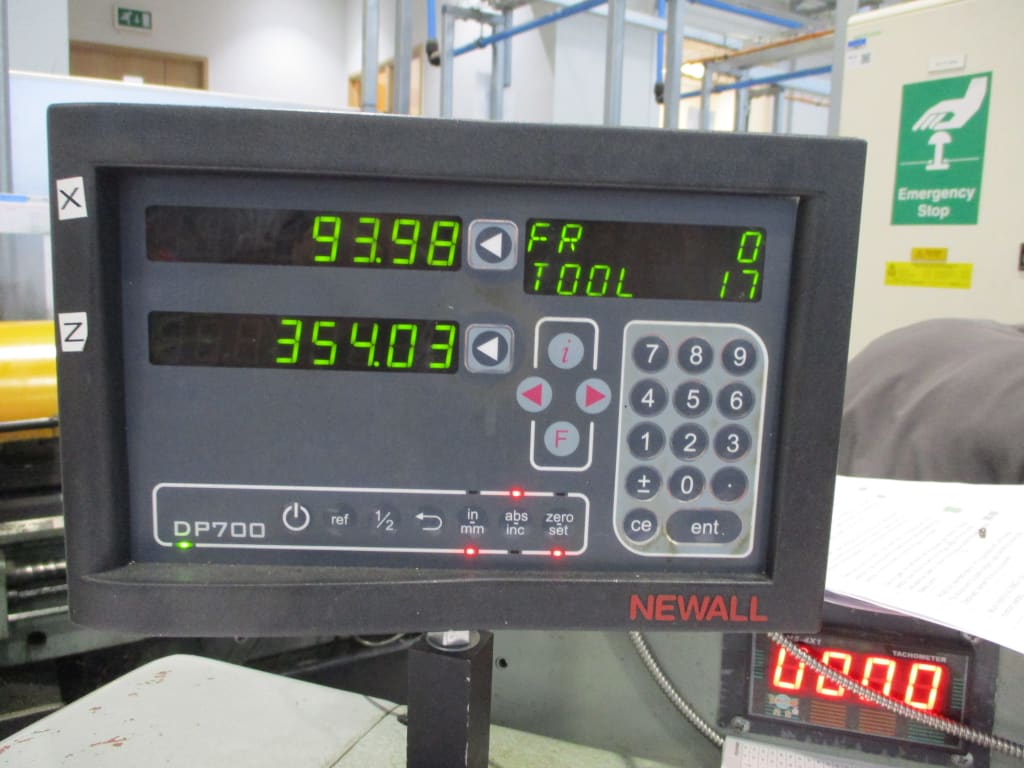

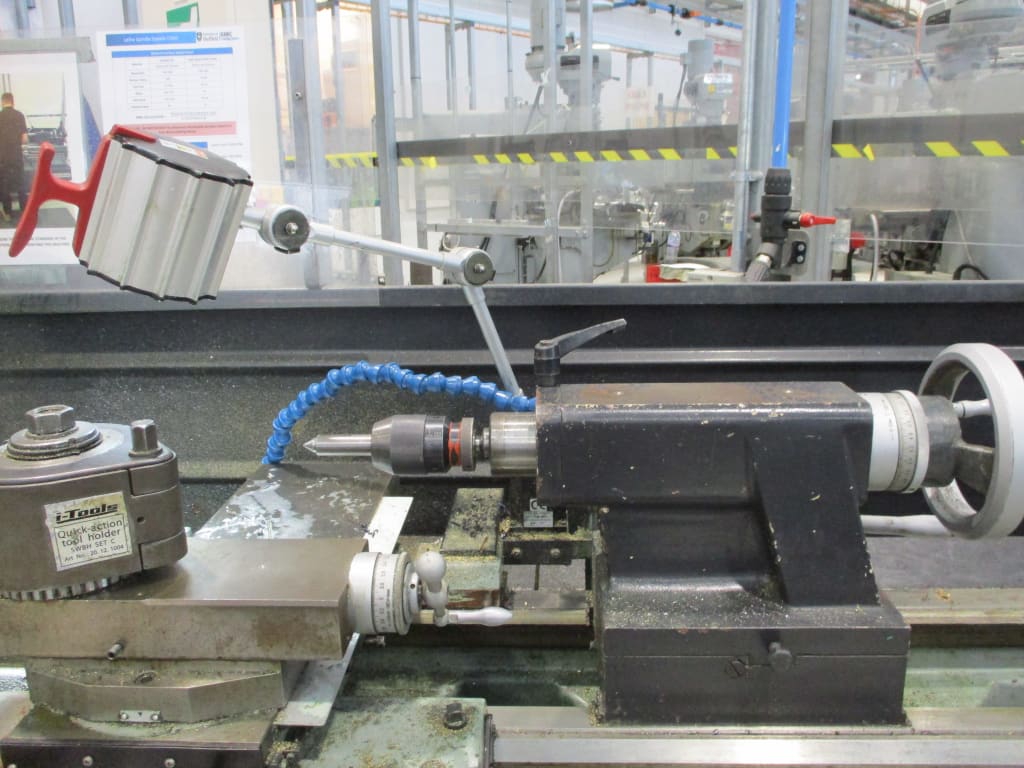

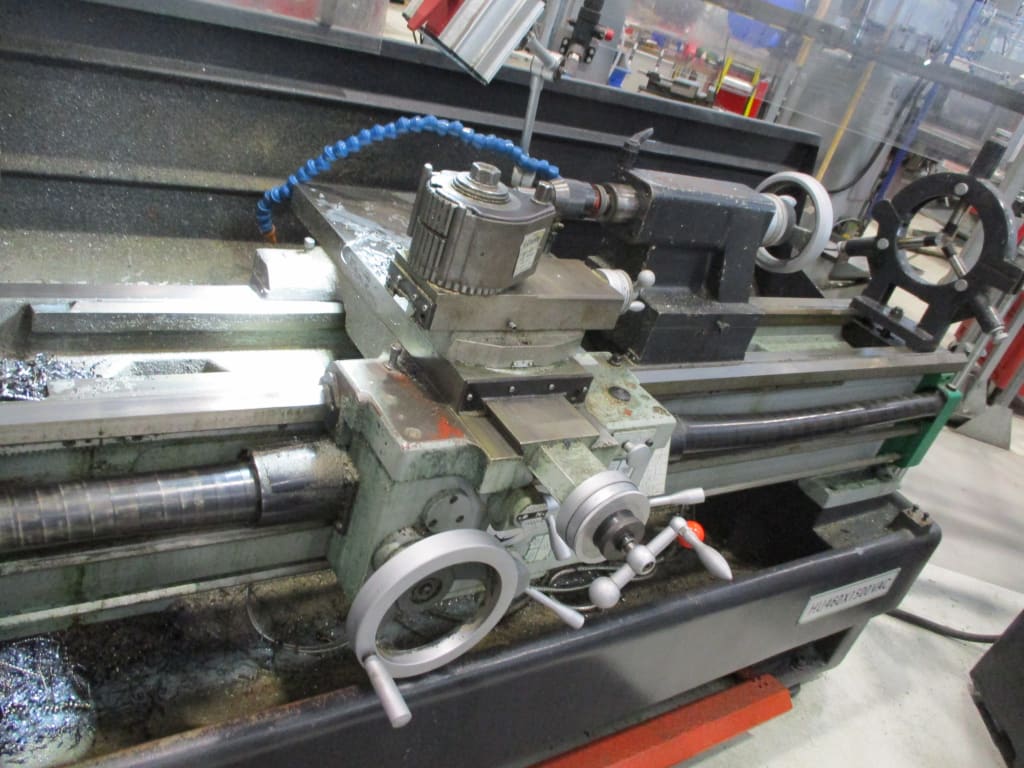

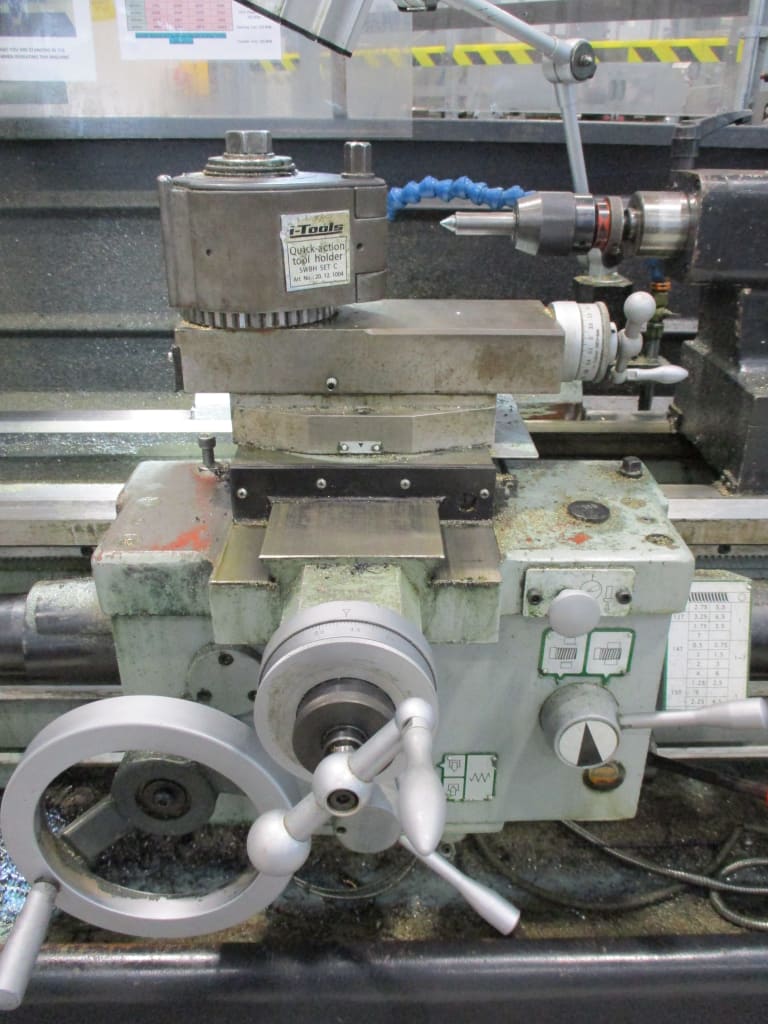

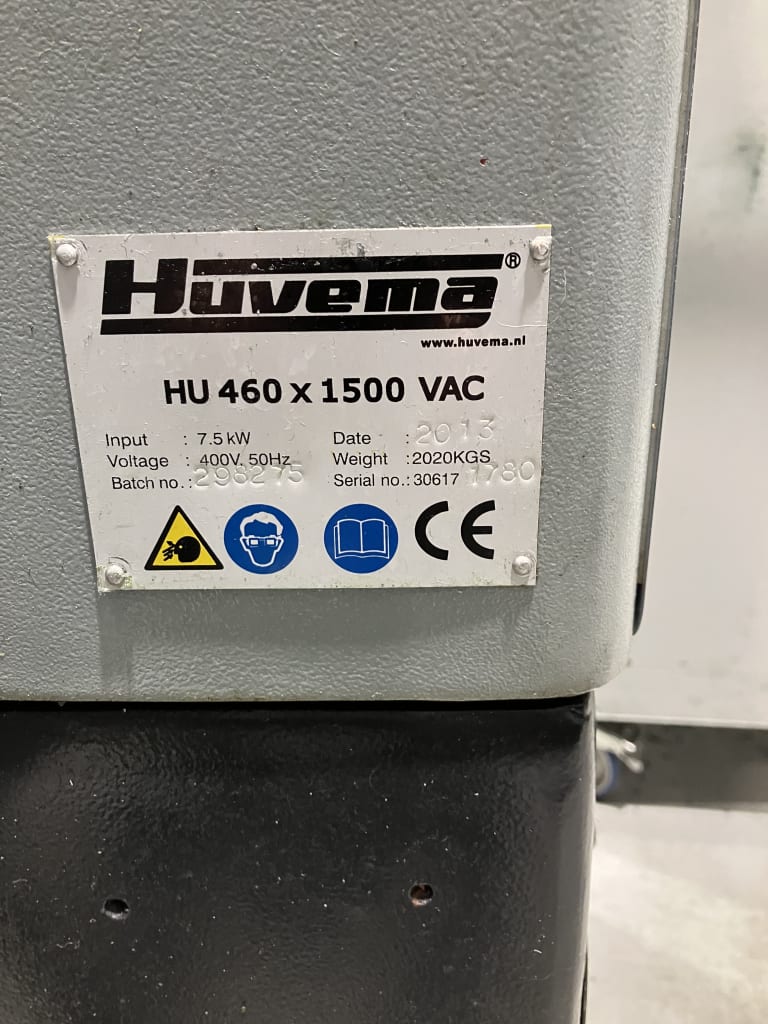

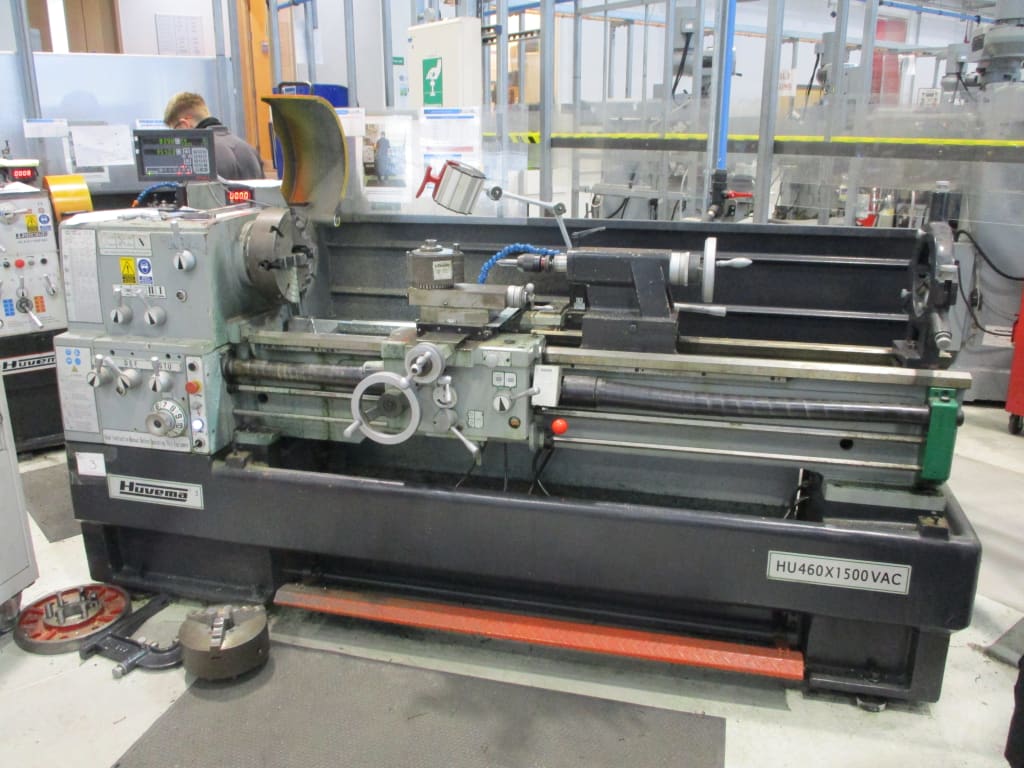

    2013 Huvema HU 460 x 1500 VAC Gap Bed Centre Lathe With Newall DP700 DRO

    Swing Over Bed Ø460mm. Swing Over Cross Slide Ø270mm. Swing In Gap Ø690mm. Distance Between Centres 1,500mm. Centre Height 230mm. Spindle Through Bore Ø80mm. Variable Speed Override (Digital Read Out) Speed Range 30-2,000rpm (Motor 7.5kW). Spindle Nose D1-8/CAMLOCK. Main Spindle Taper MT6. Cross Travel 285mm. Top Slide Travel 128mm. Longitudinal Feed 0.031-1.7mm/rev, Cross Feed Range 0.014-0.784mm/rev. Width Of Bed 300mm. Tailstock Quill Travel 130mm, Tailstock Taper MT4, Tailstock Quill 60mm. Threading Metric 0.1-14mm. Threading Inch 2-112tpi. QTC. Voltage 400V. S/No. 30617 1780 (2013).
    View Item
  • 4-0.jpg
    site

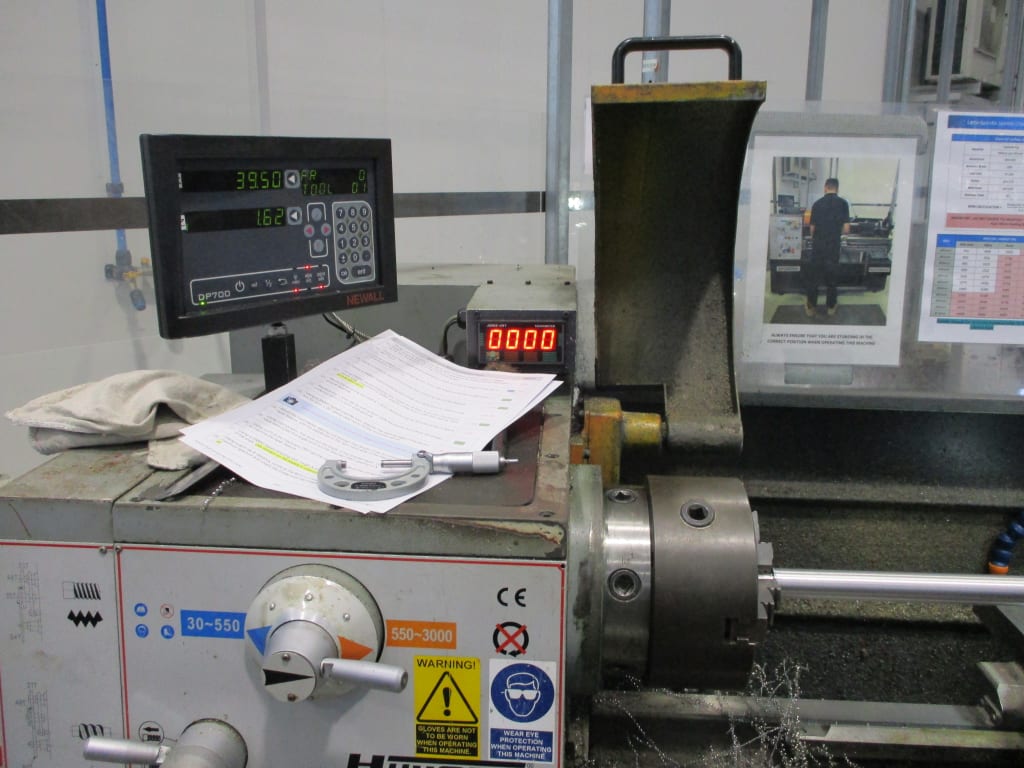

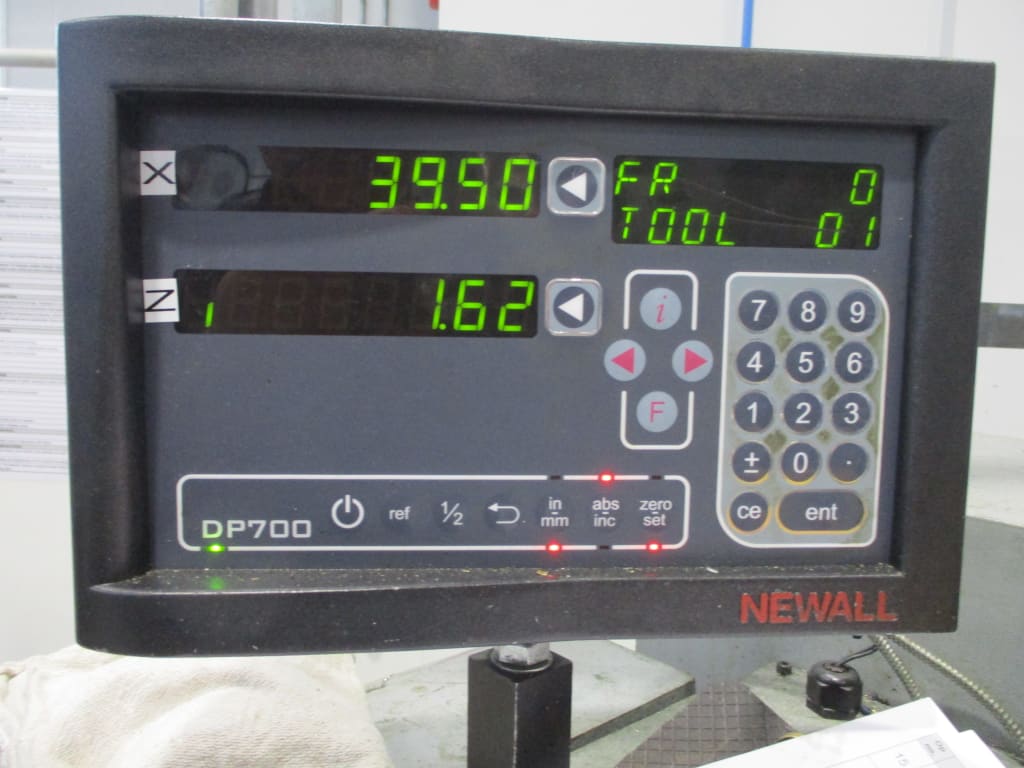

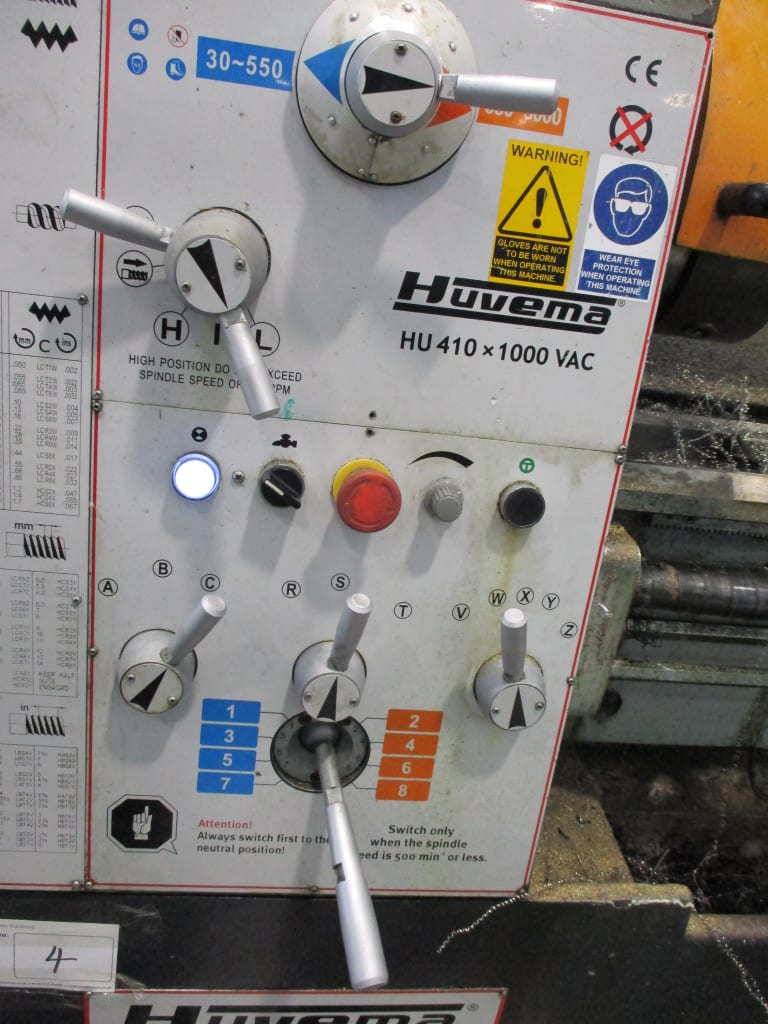

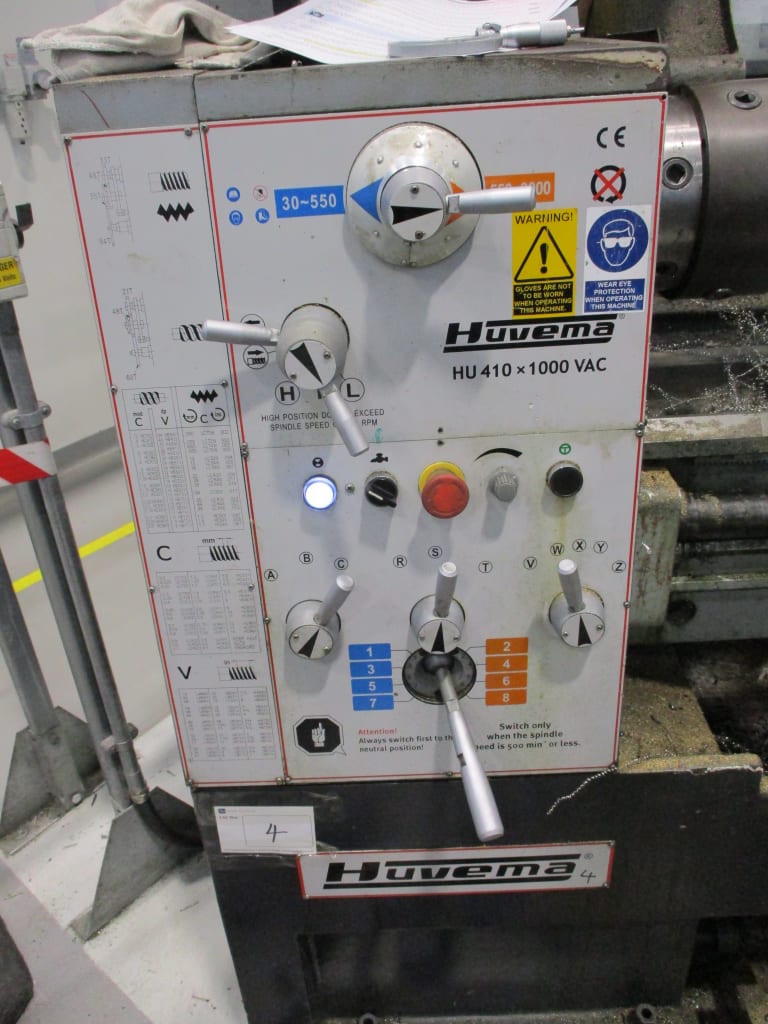

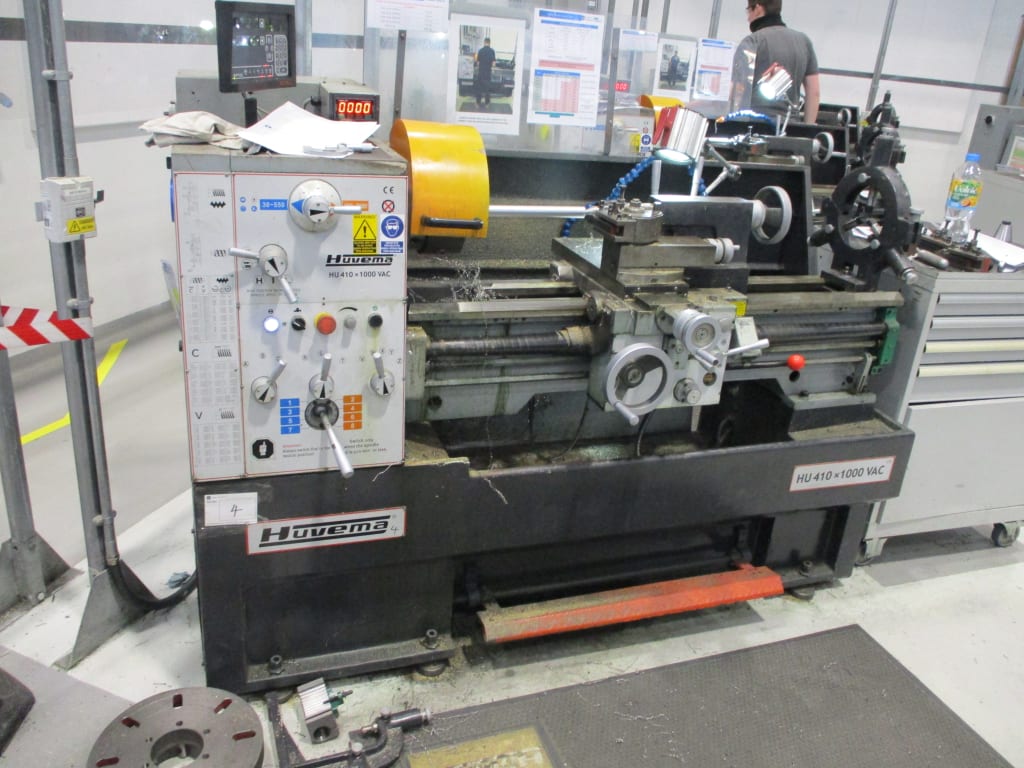

    LOT 4

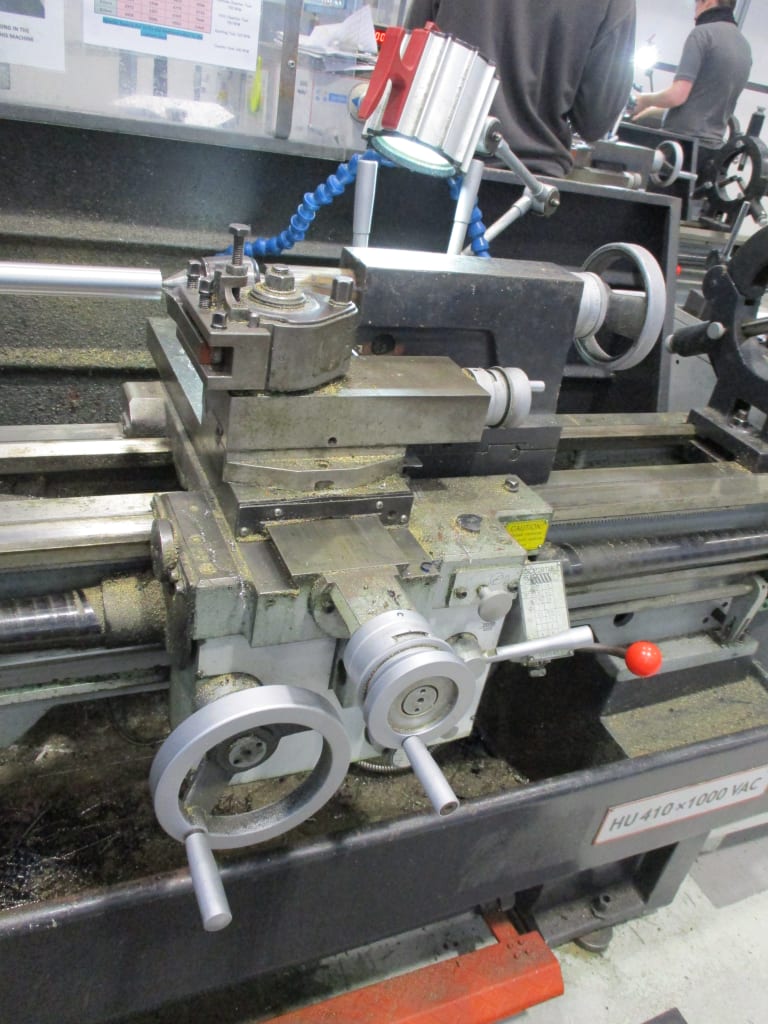

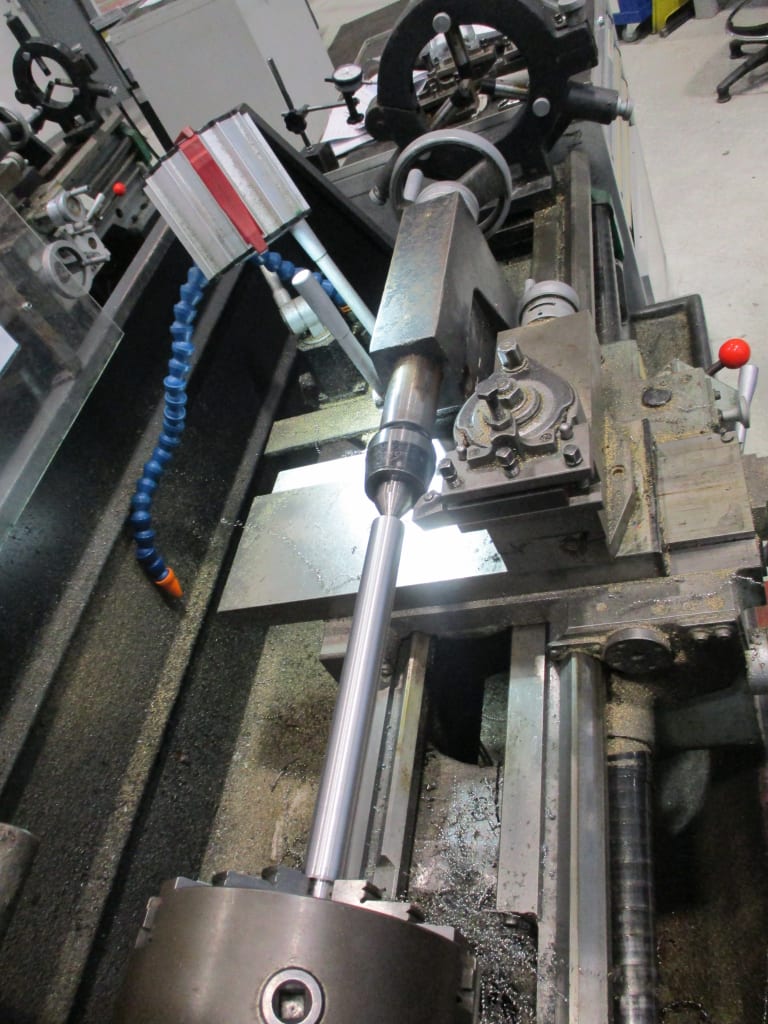

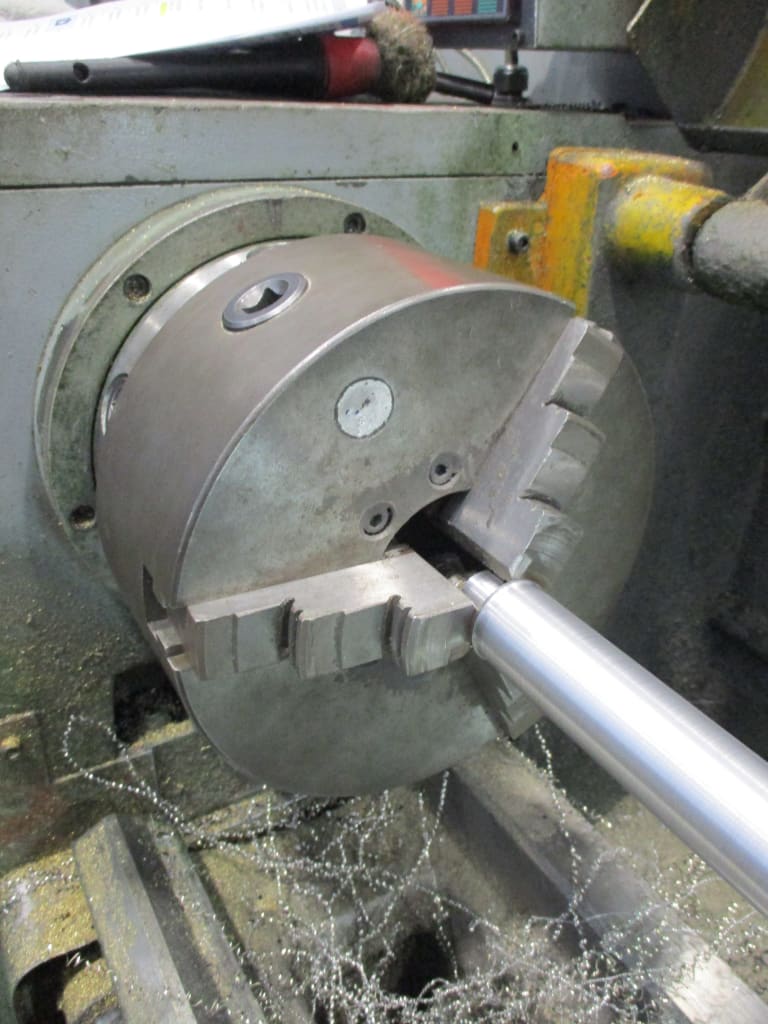

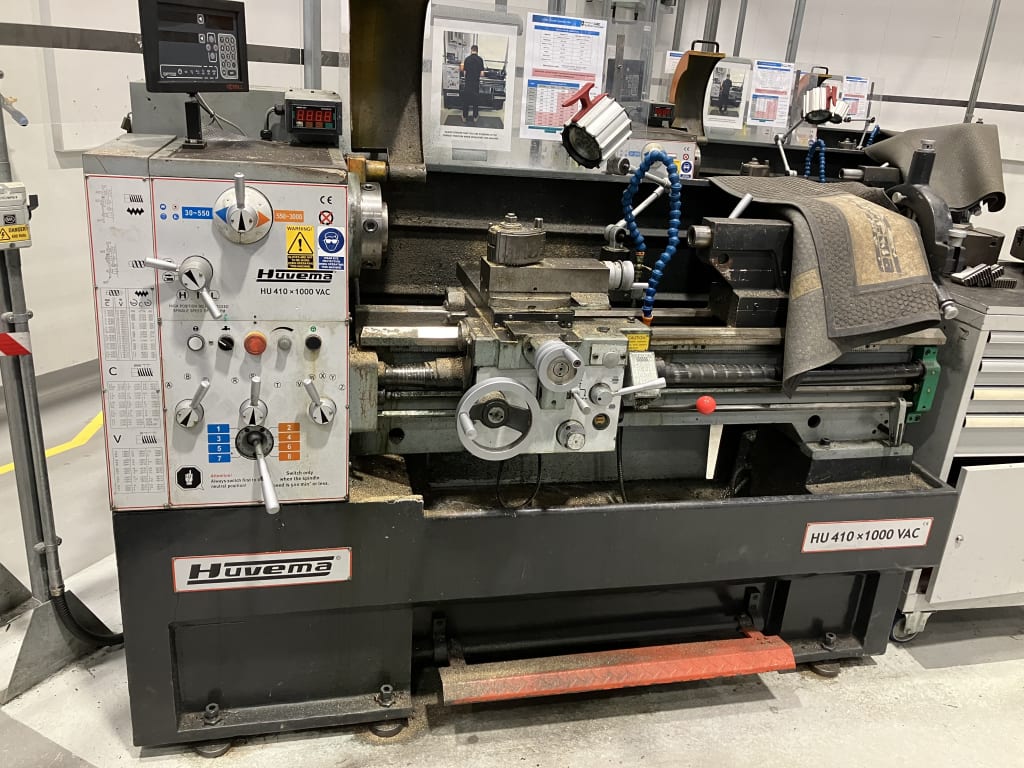

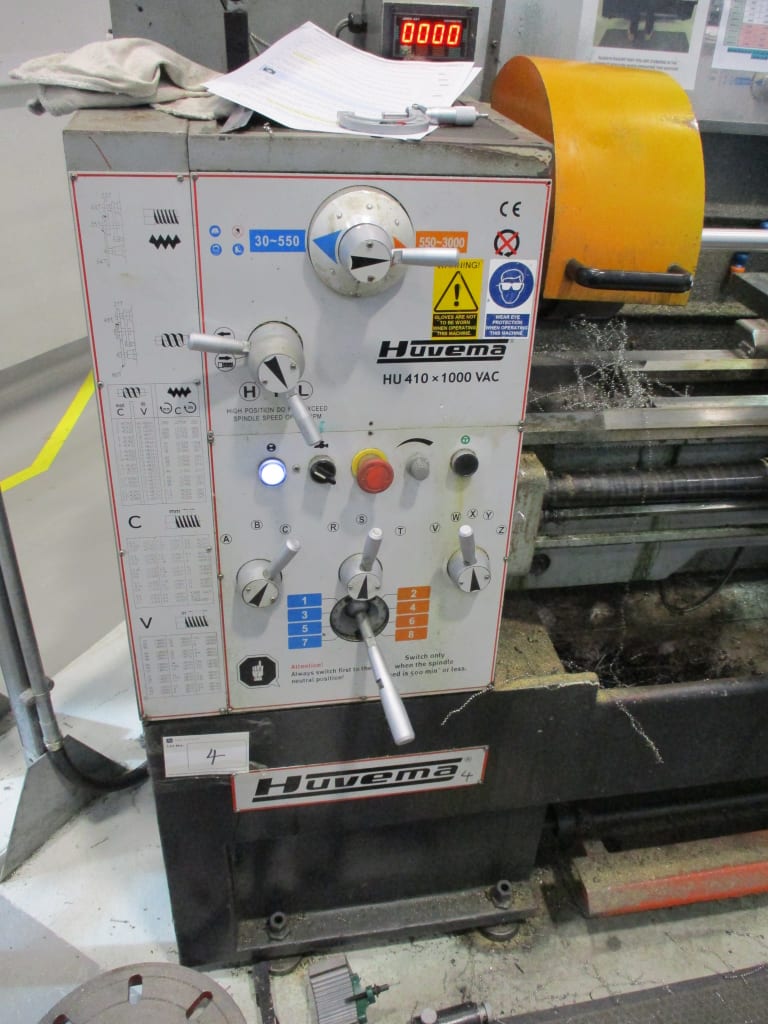

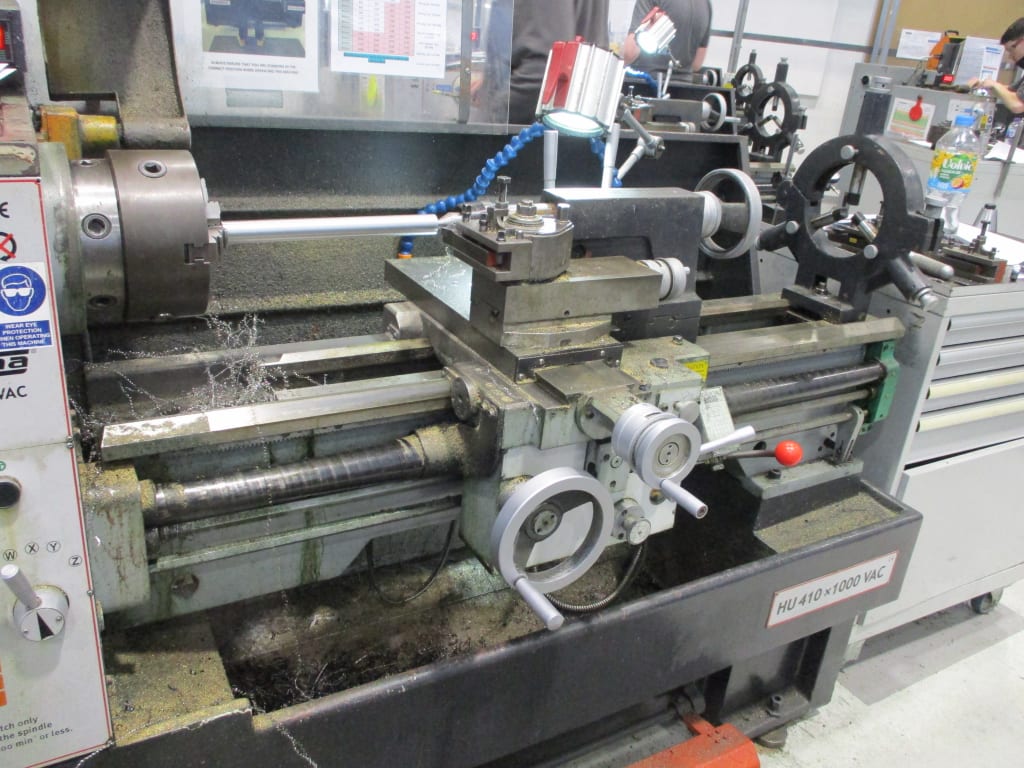

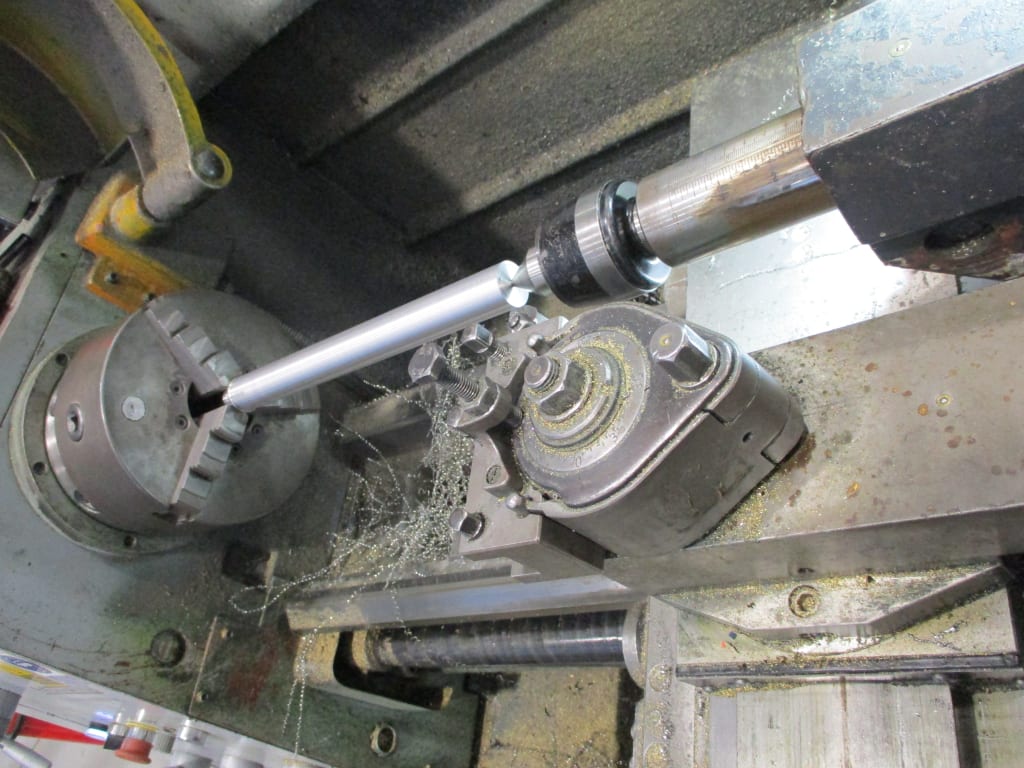

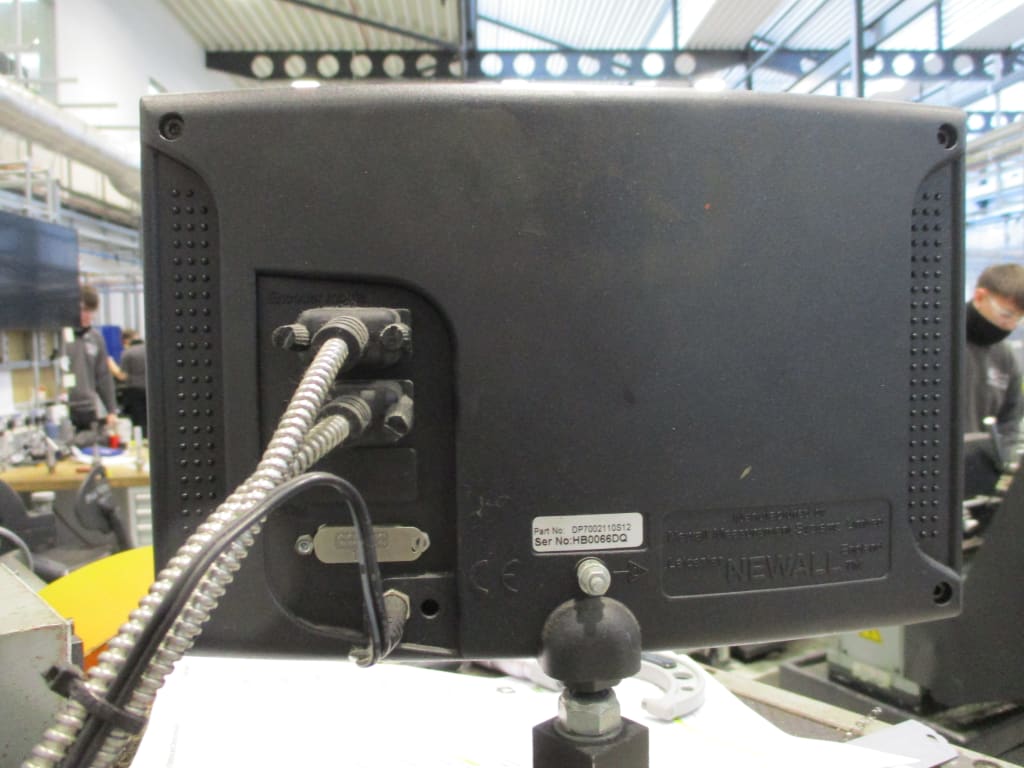

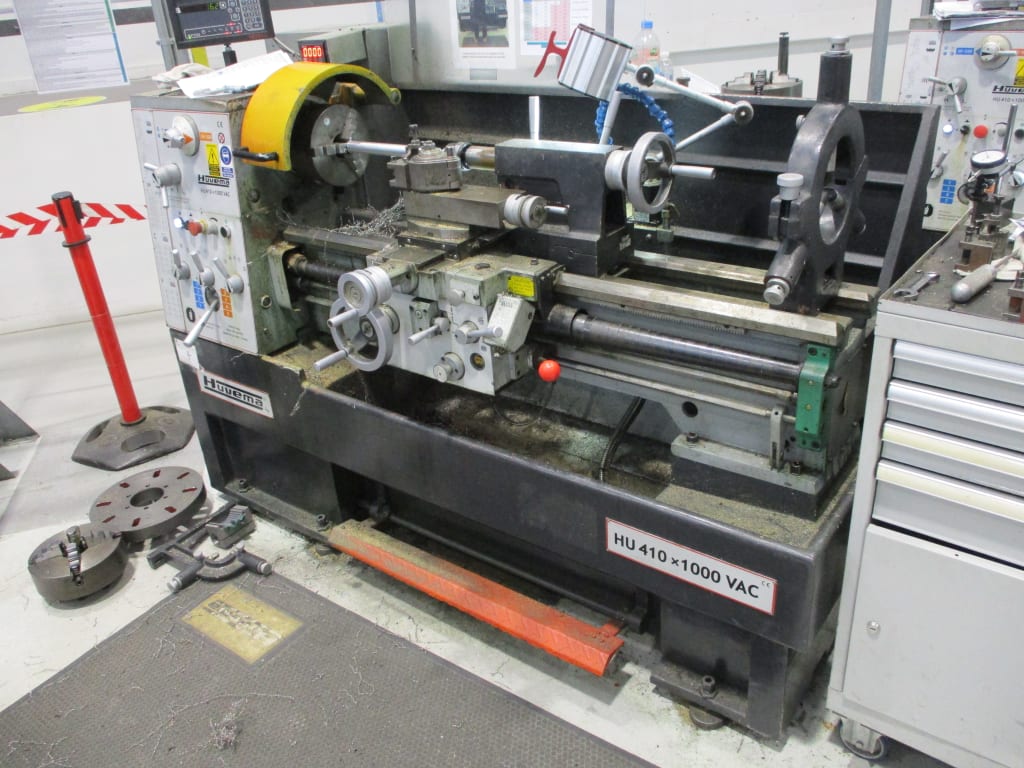

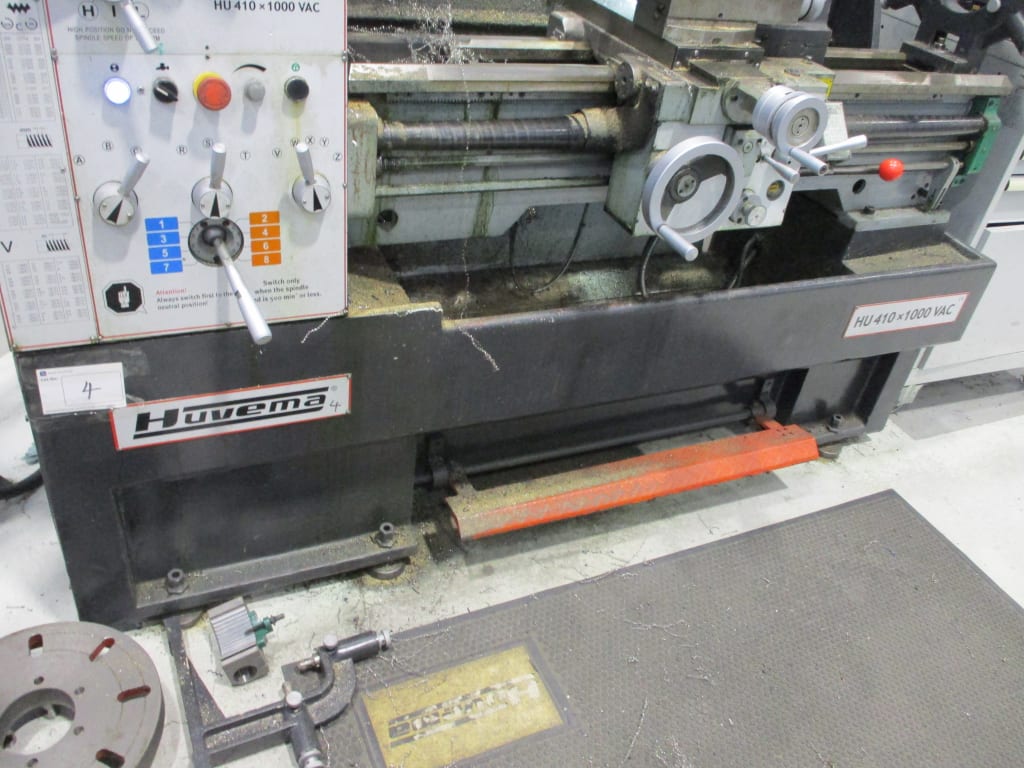

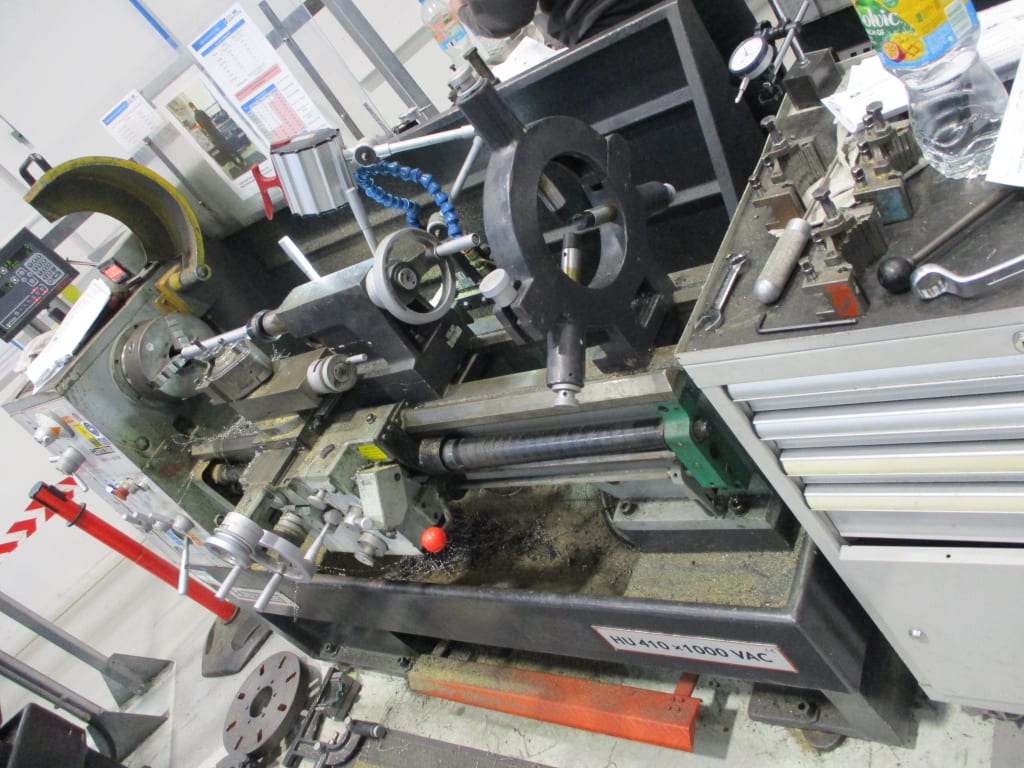

    2013 Huvema HU 410 x 1000 VAC Gap Bed Centre Lathe With Newall DP700 DRO

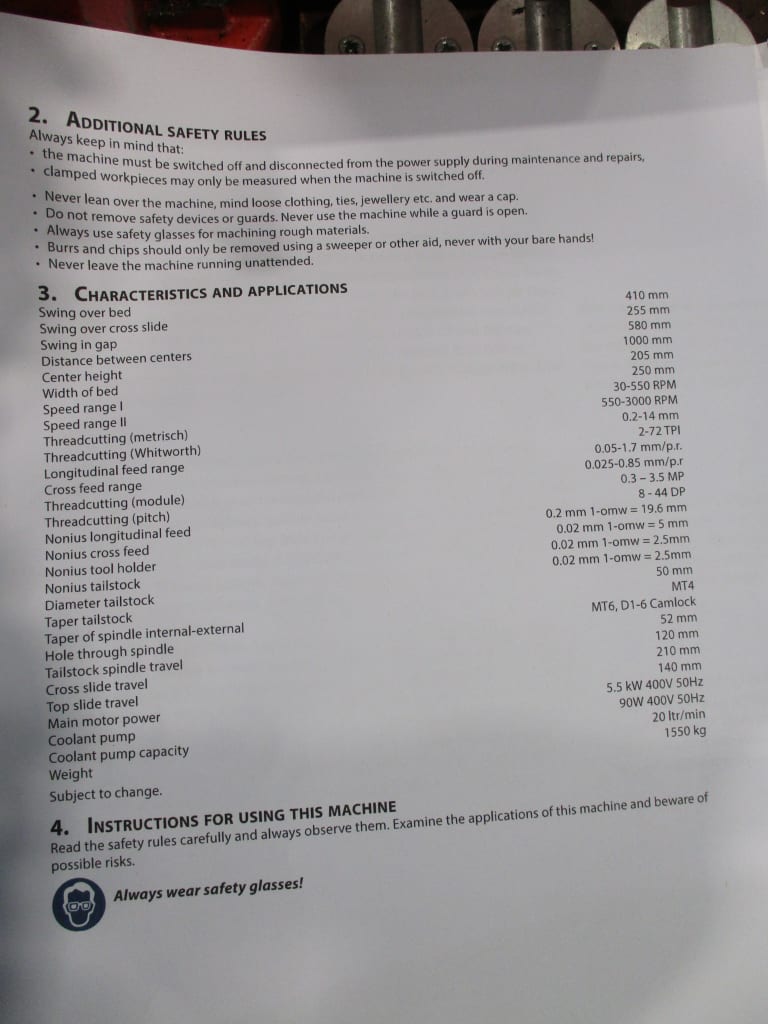

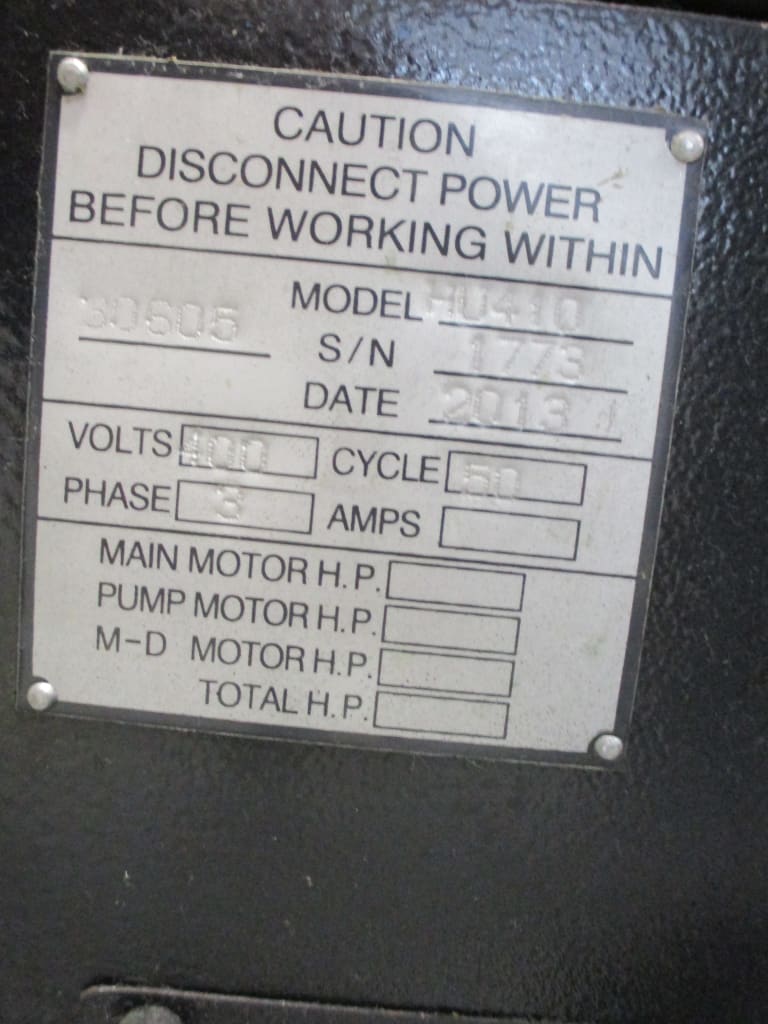

    Swing Over Bed Ø410mm. Swing Over Cross Slide Ø255mm. Swing In Gap Ø580mm. Distance Between Centres 1,000mm. Centre Height 205mm. Spindle Through Bore Ø52mm. Variable Speed Override (Digital Read Out) Speed Range 30-3,000rpm (Motor 5,5kW). Spindle Nose D1-6/CAMLOCK. Main Spindle Taper MT6. Cross Travel 210mm. Top Slide Travel 140mm. Longitudinal Feed 0.05-1.7mm/rev, Cross Feed Range 0.025-0.85mm/rev. Width Of Bed 250mm. Tailstock Quill Travel 120mm, Tailstock Taper MT4, Tailstock Quill 50mm. Threading Metric 0.2-14mm. i Tools Quick Action Toolholder SWBH Set B. JDMS-4X1 Tachometer. Voltage 400V. S/No. 30605 1773 (2013).
    View Item
  • 5-0.jpg
    site

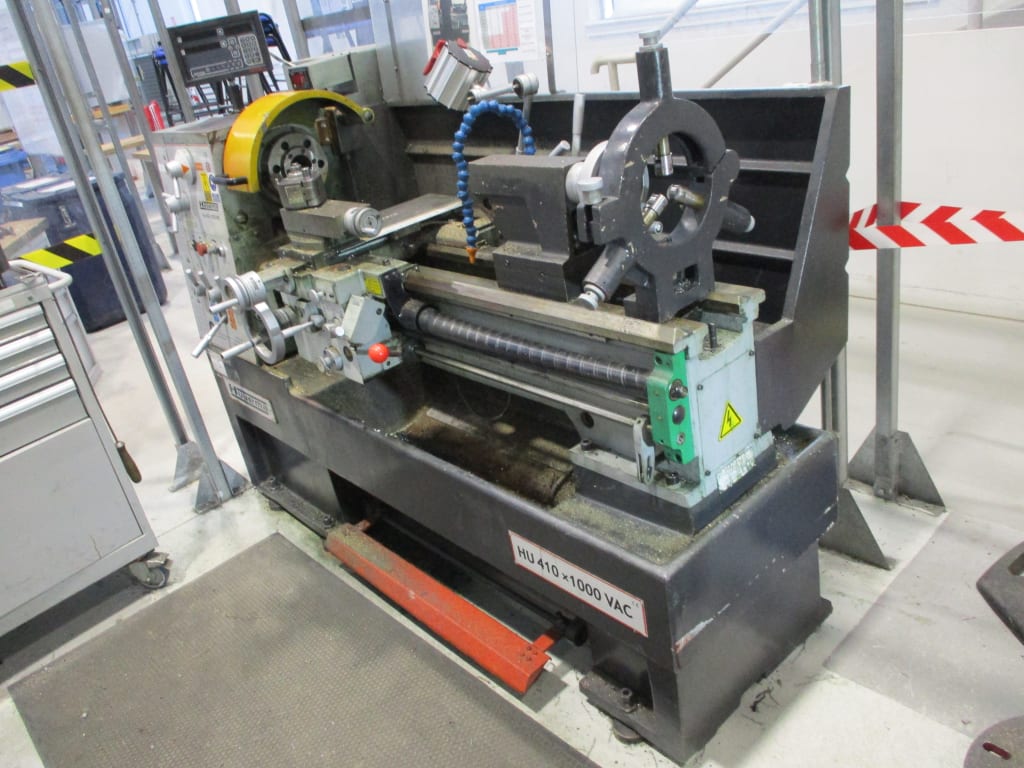

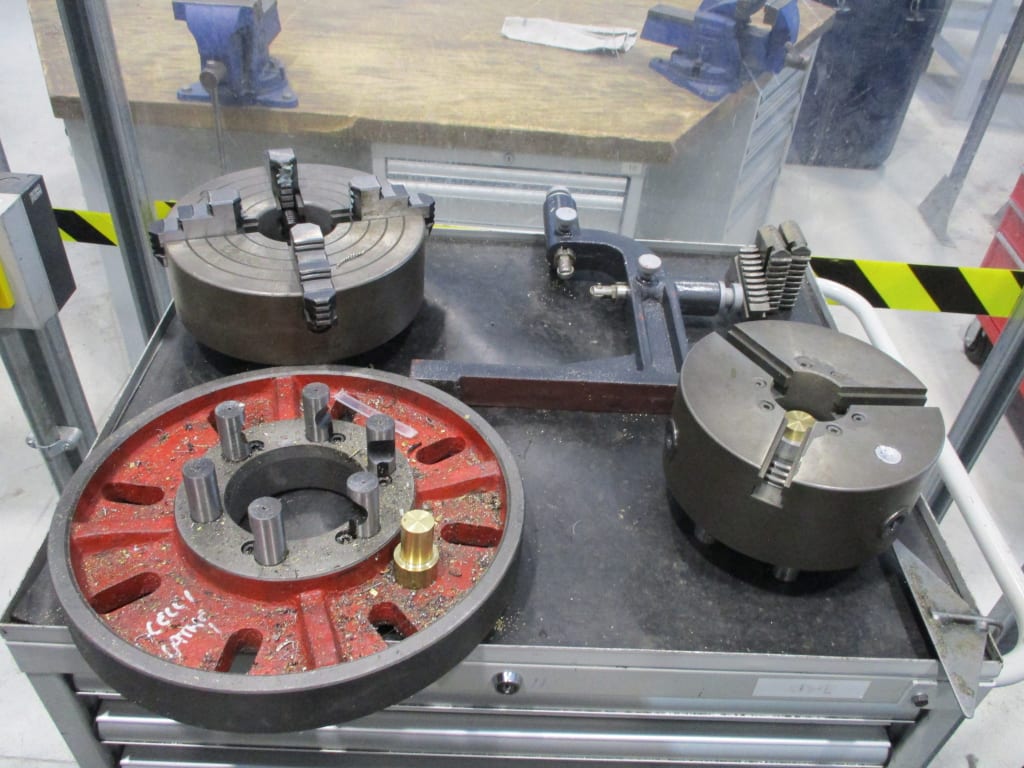

    LOT 5

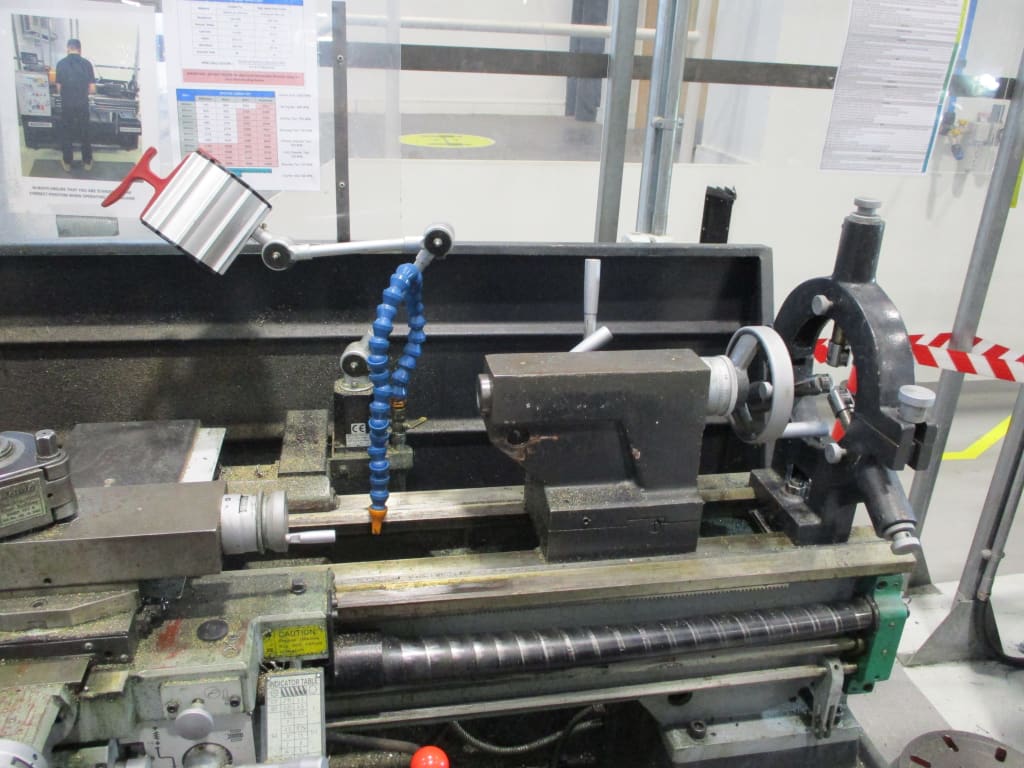

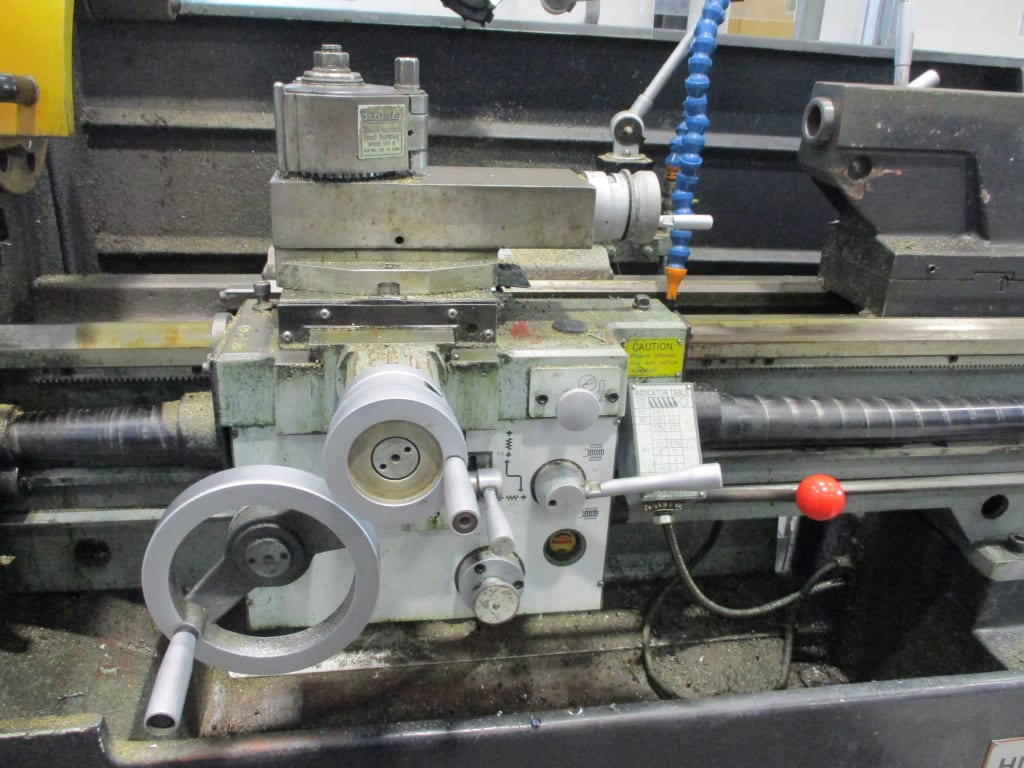

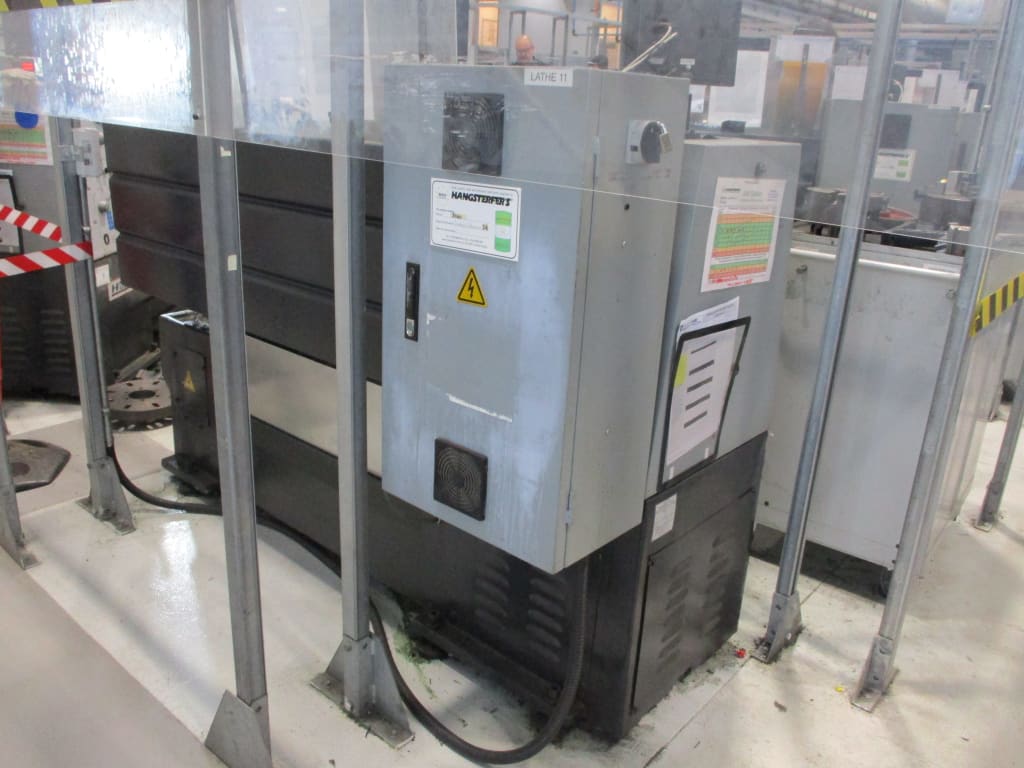

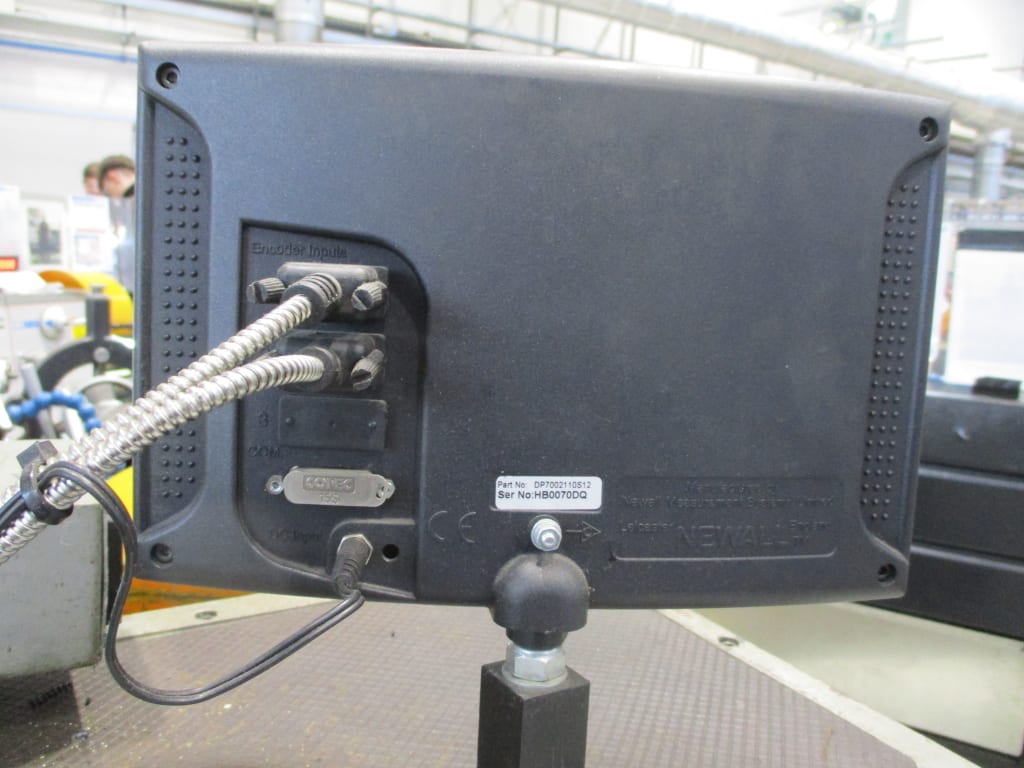

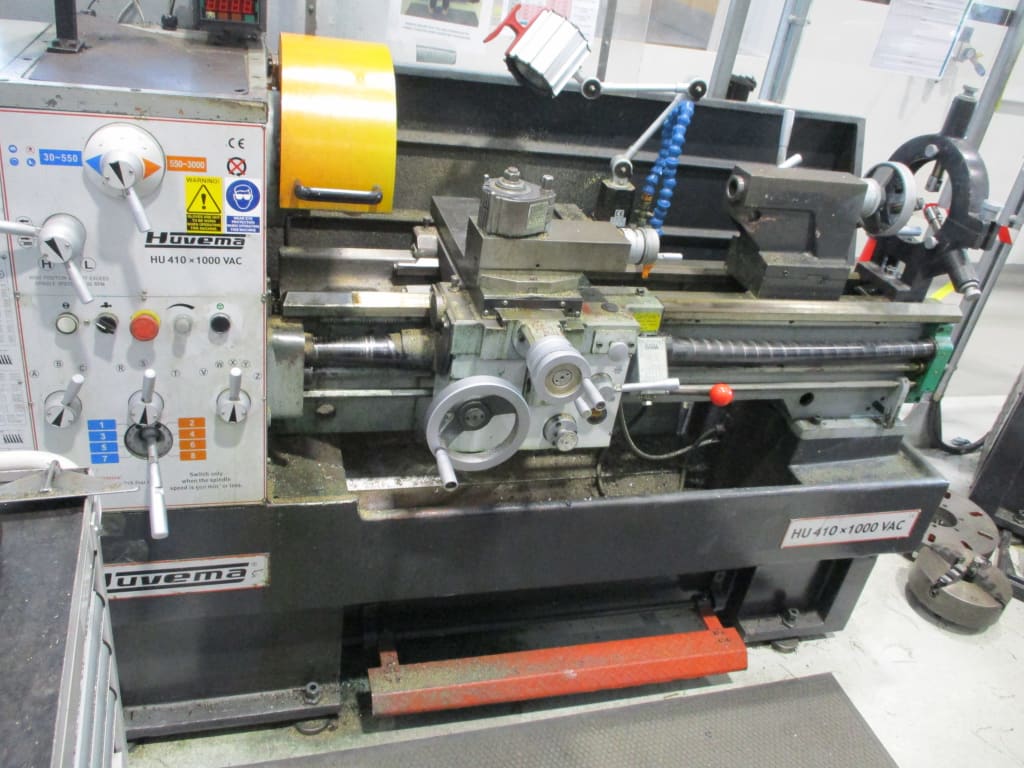

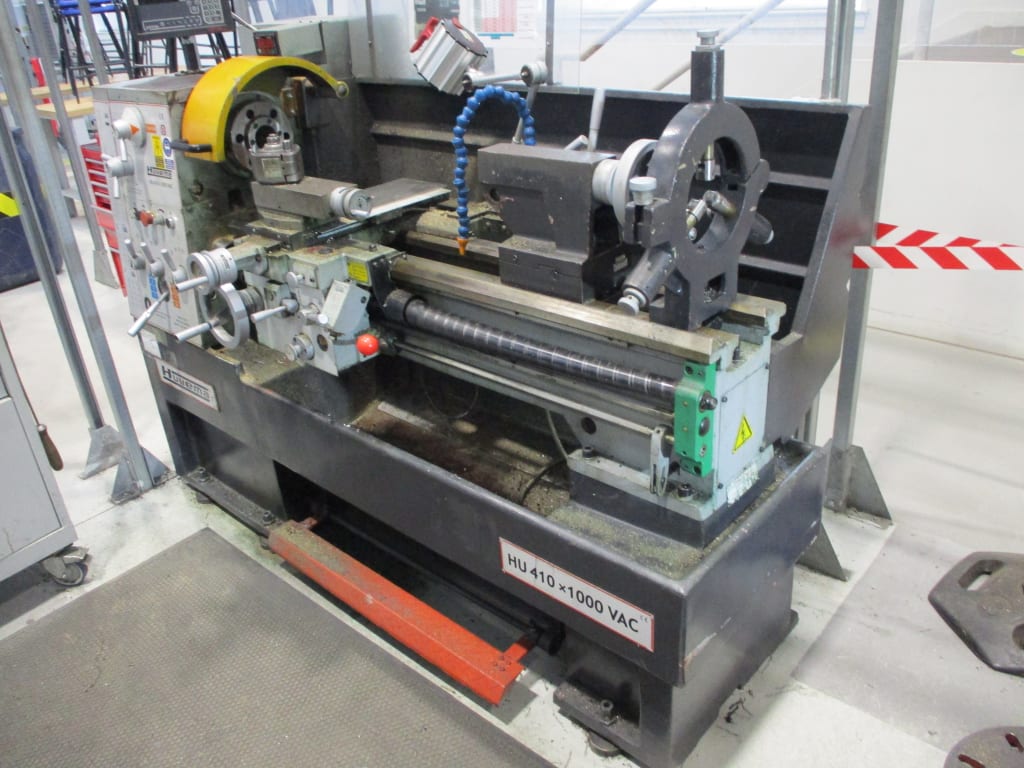

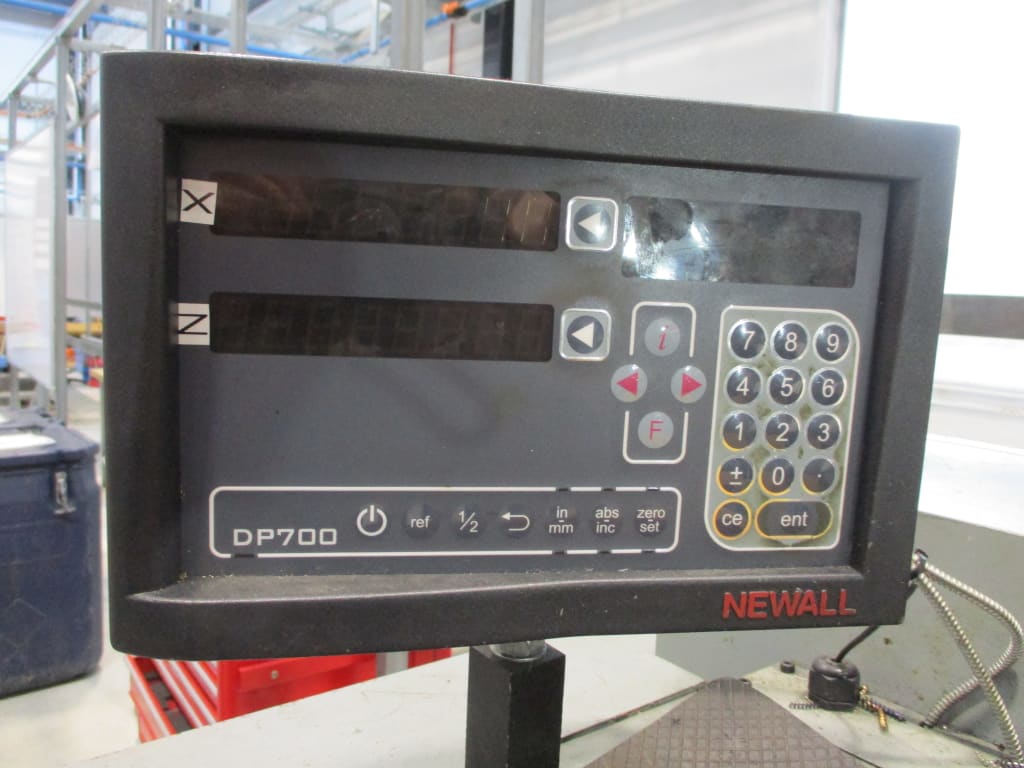

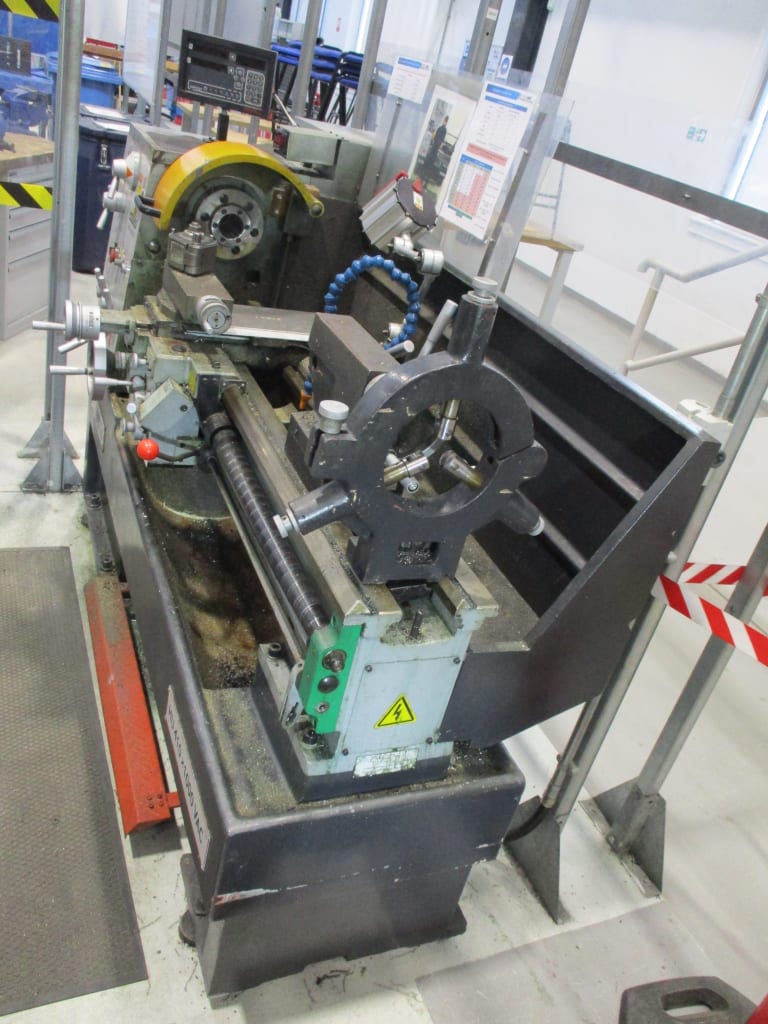

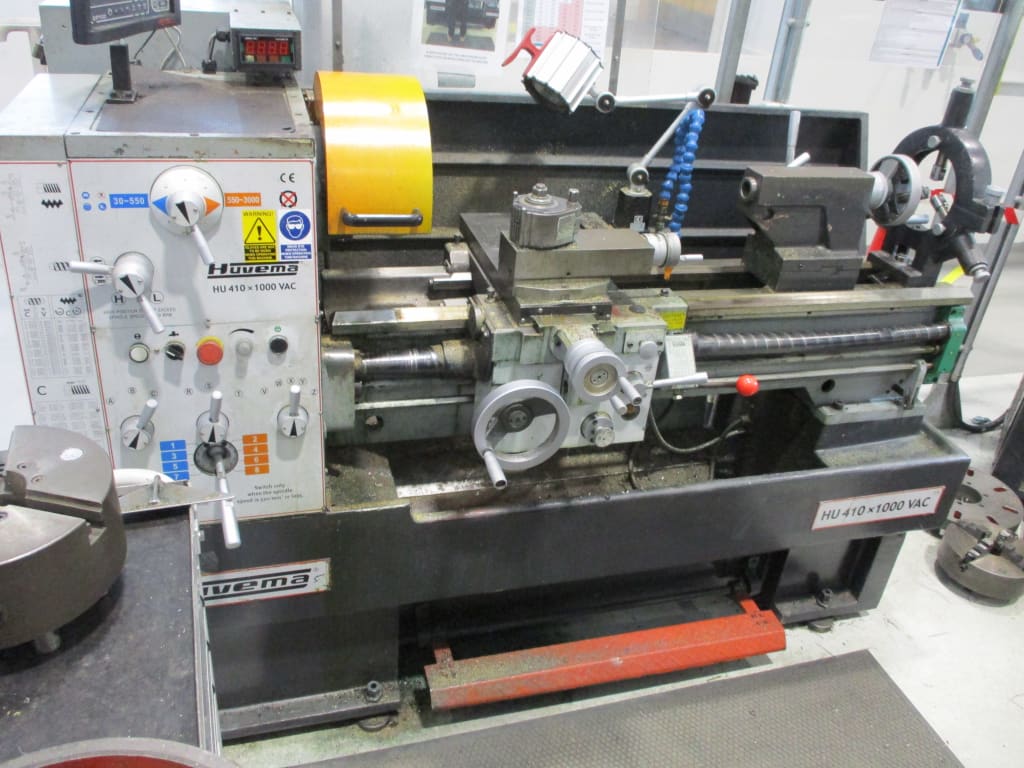

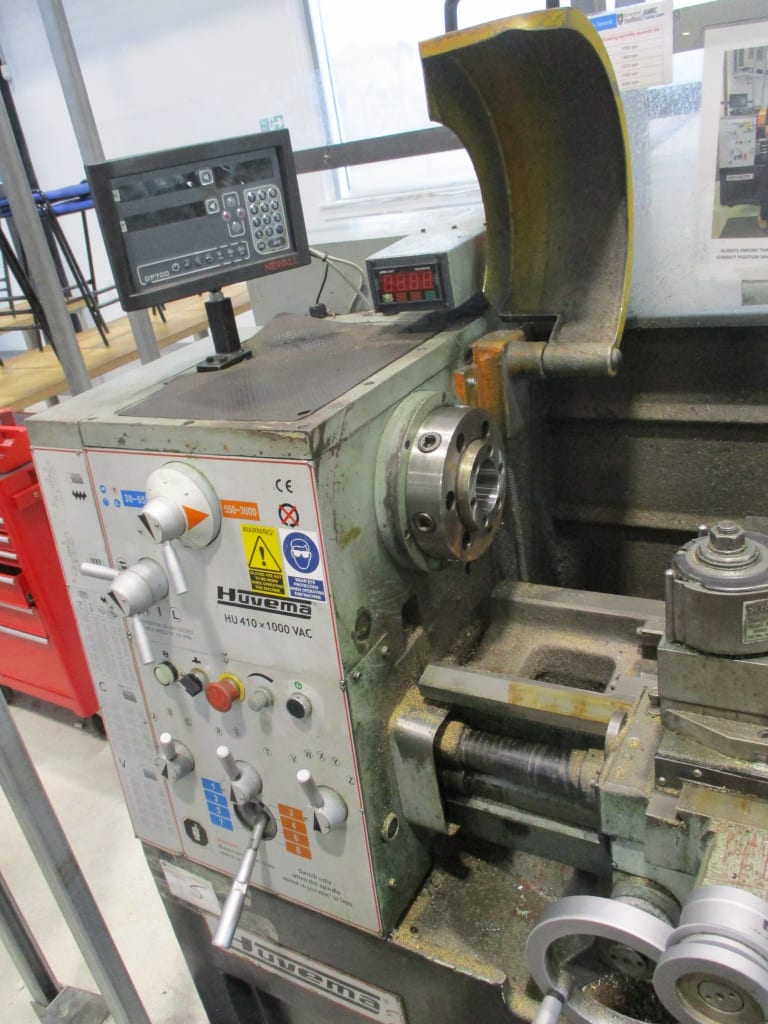

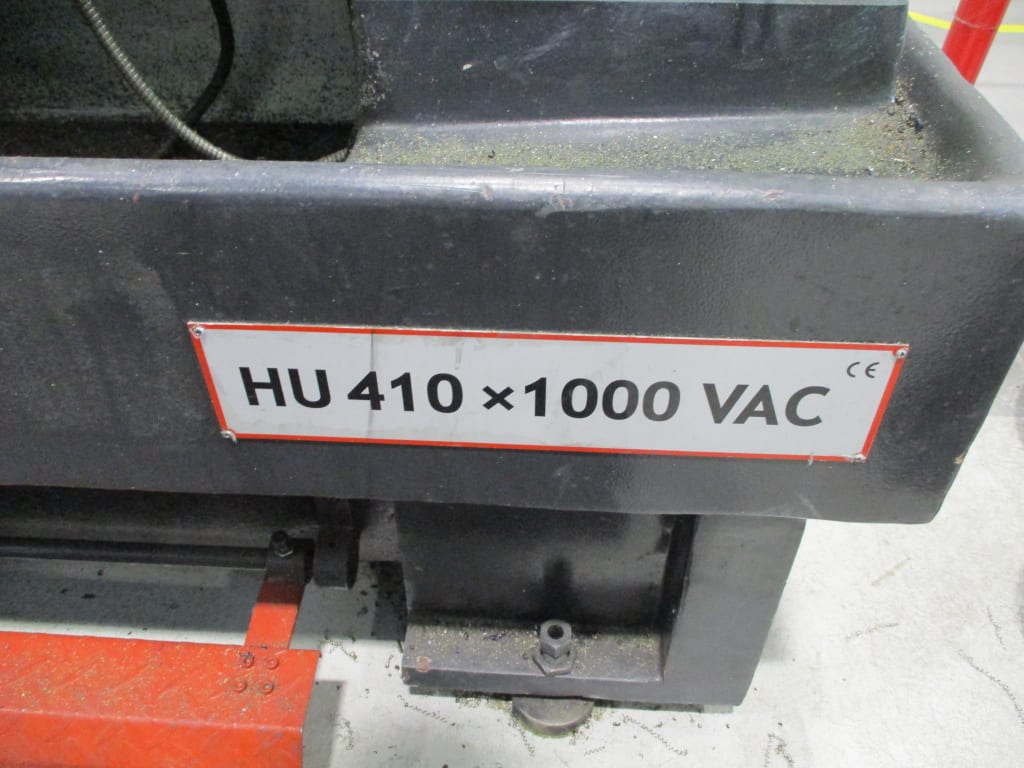

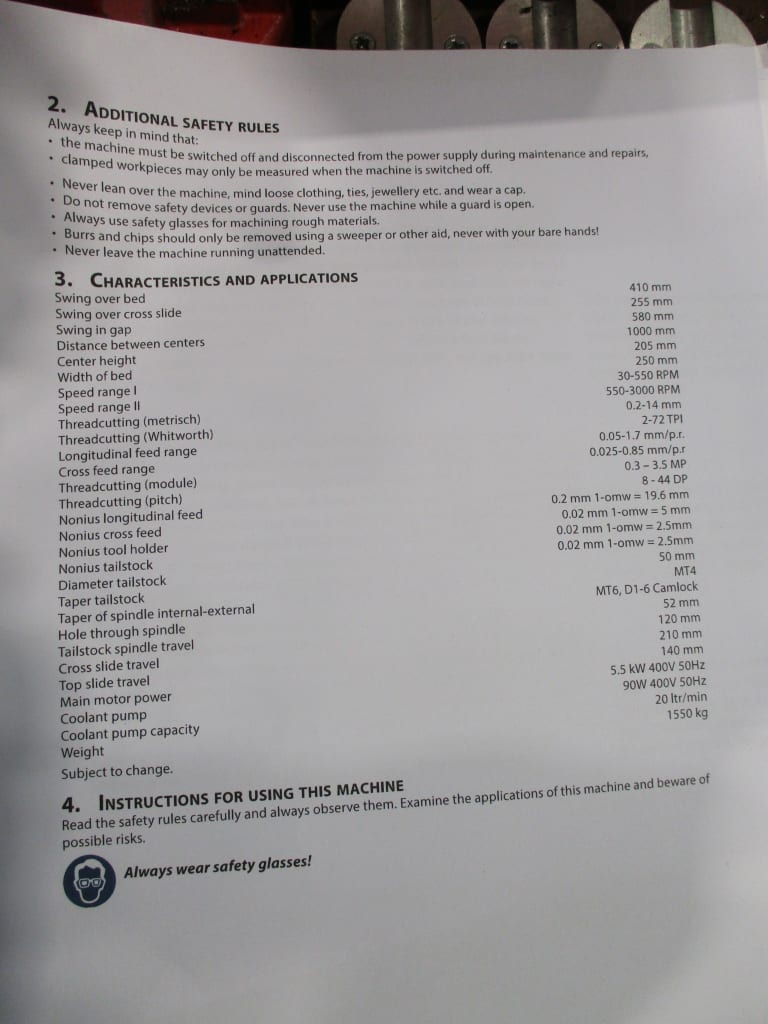

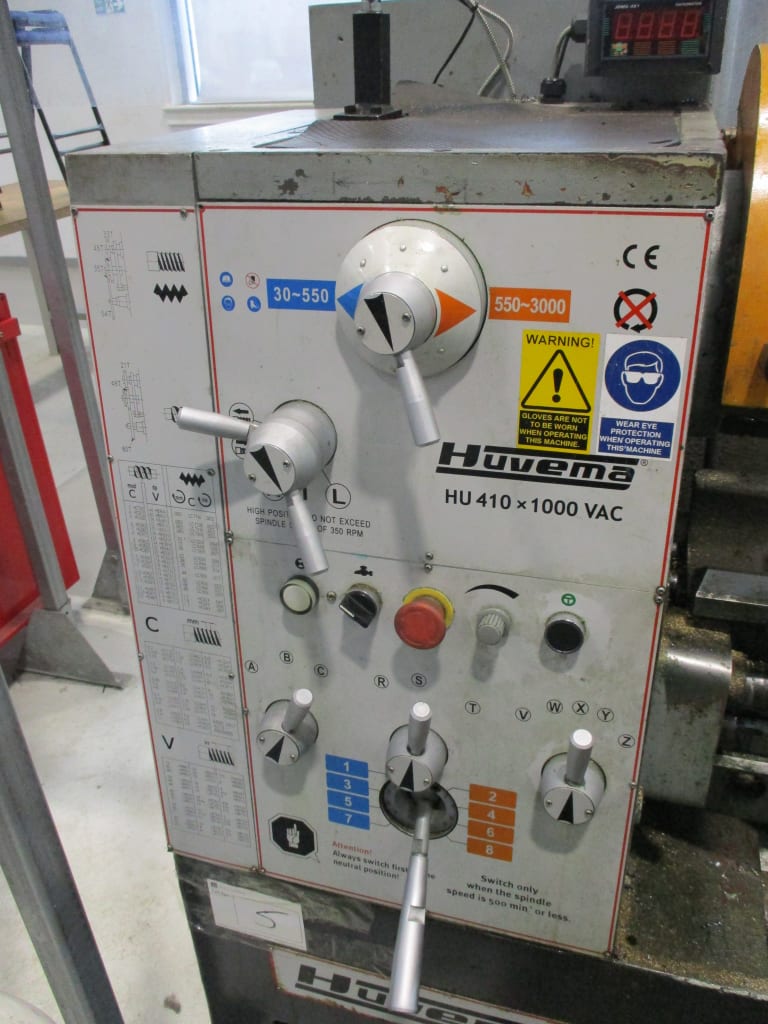

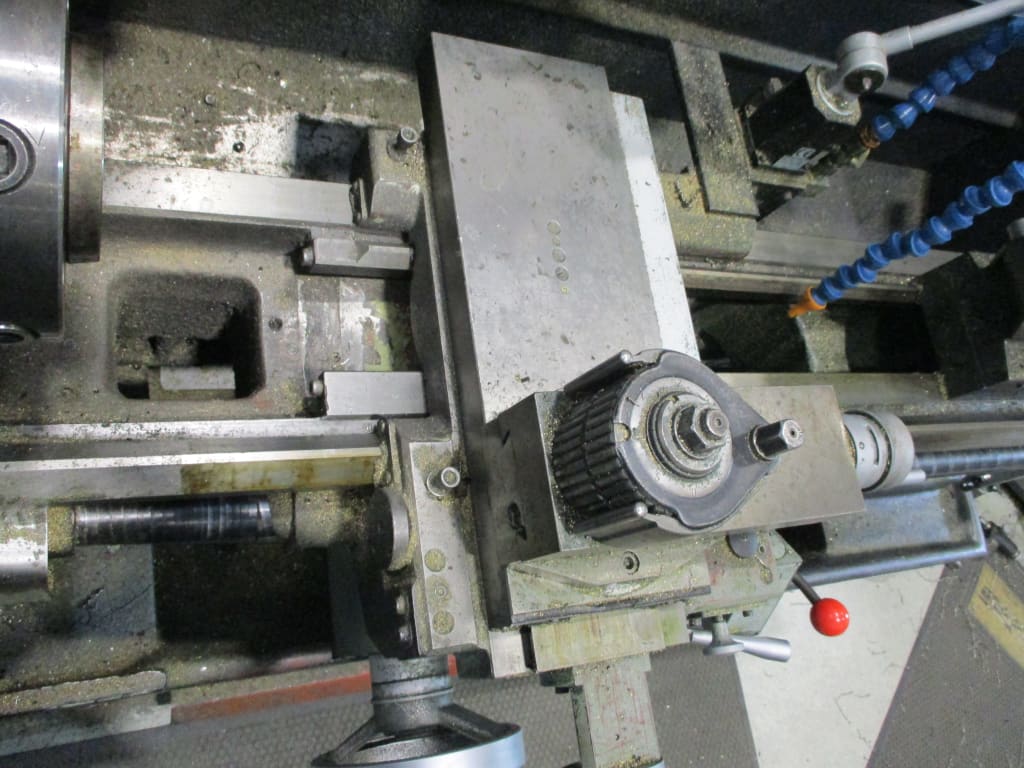

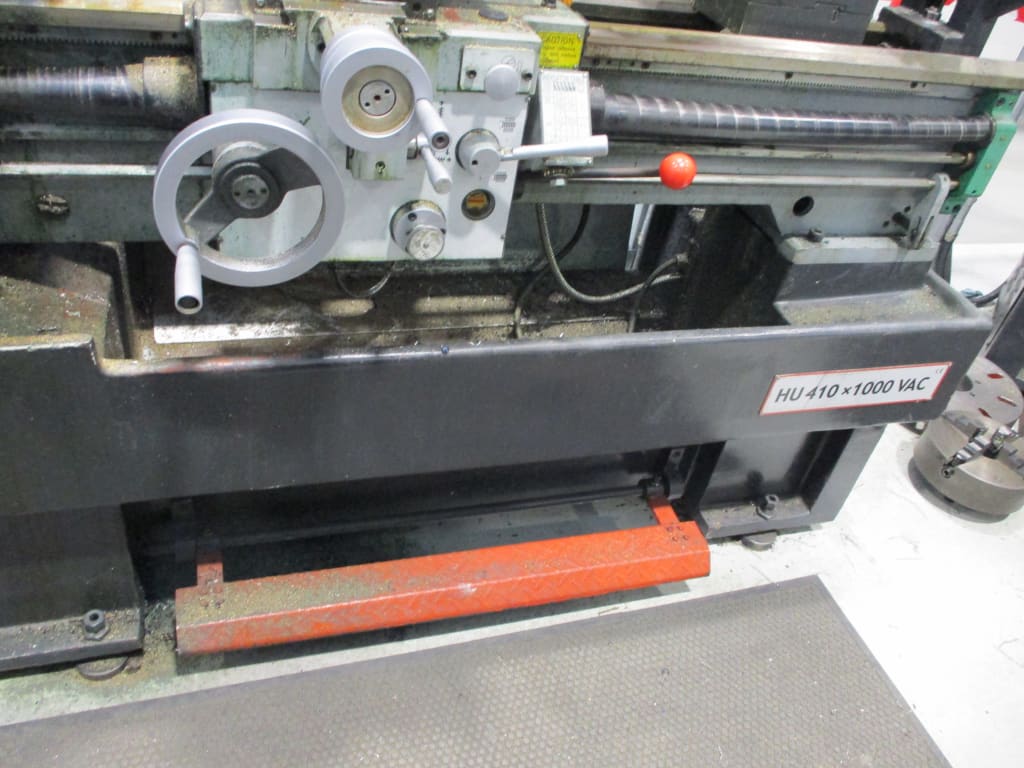

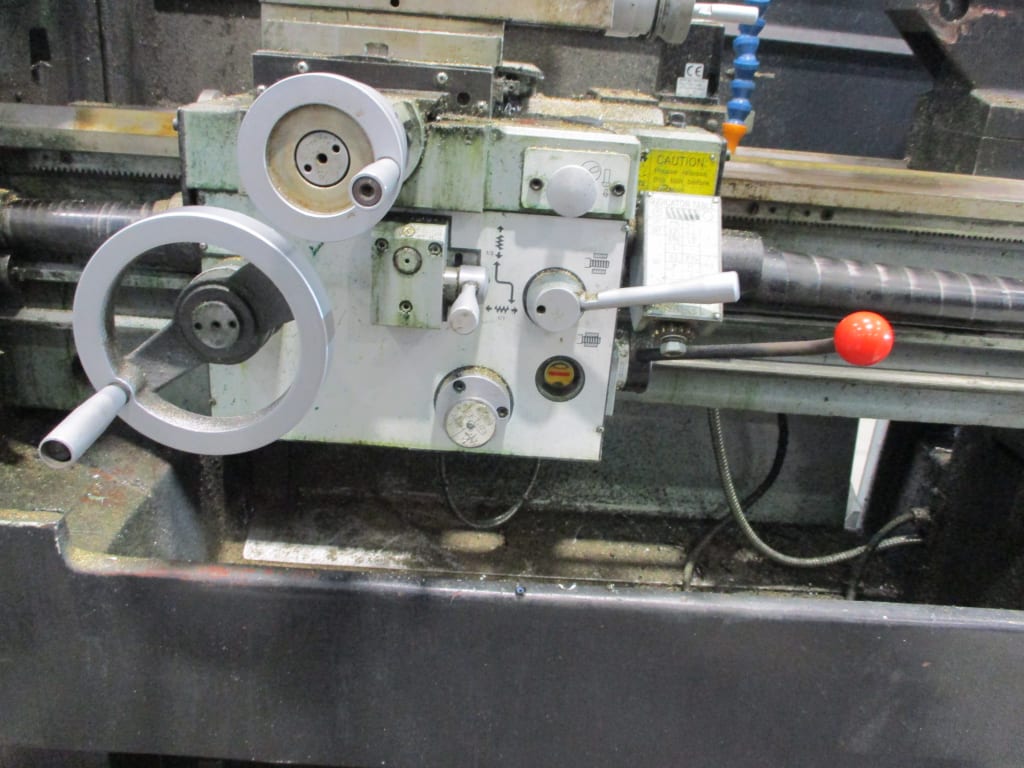

    2013 Huvema HU 410 x 1000 VAC Gap Bed Centre Lathe With Newall DP700 DRO

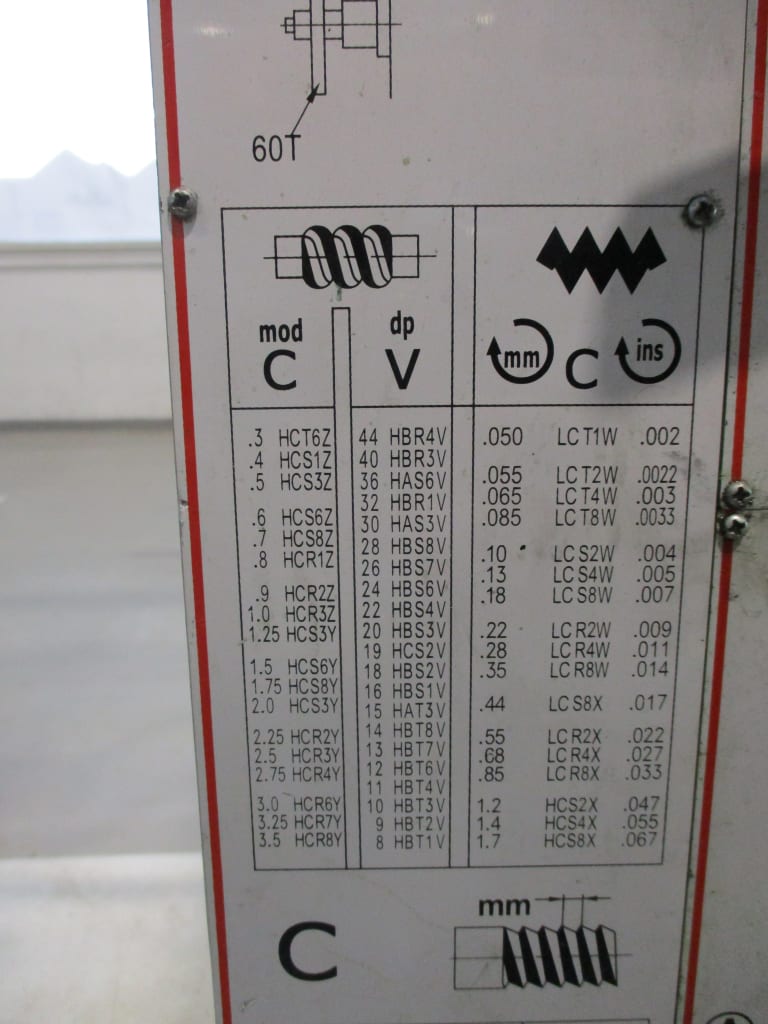

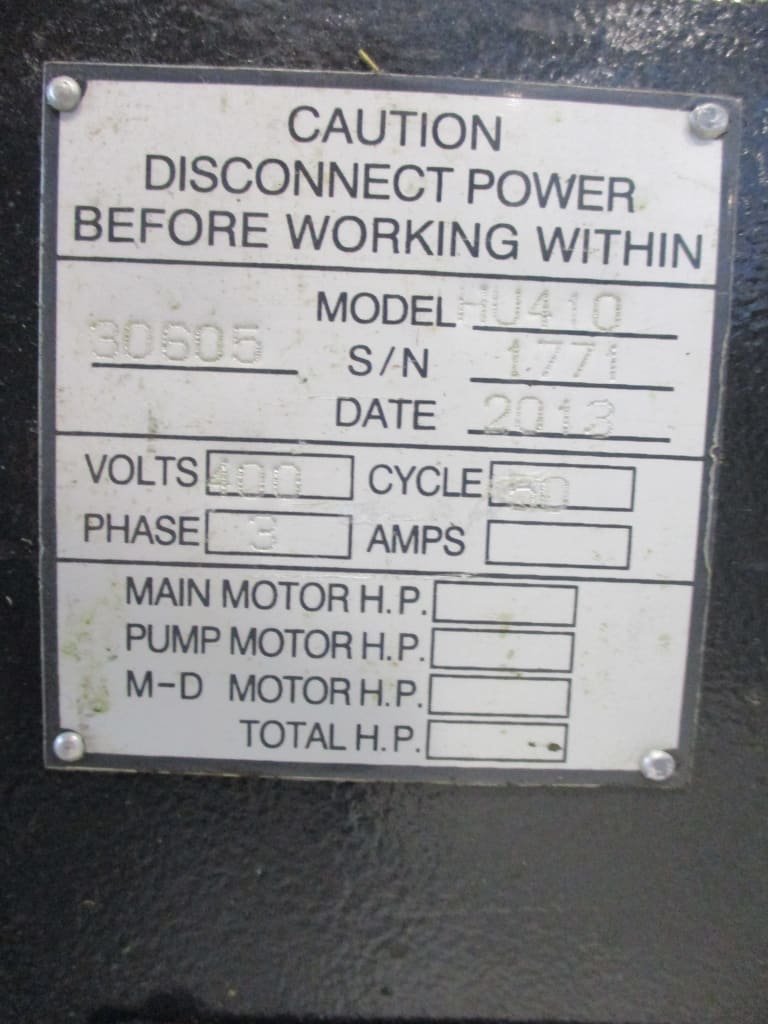

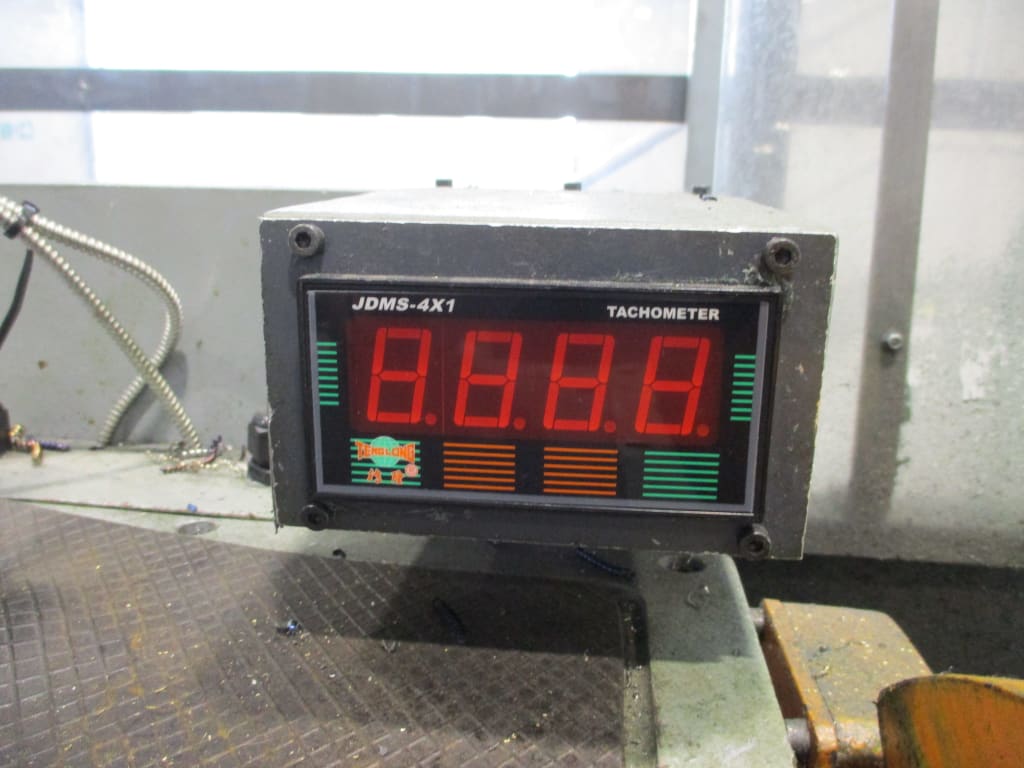

    Swing Over Bed Ø410mm. Swing Over Cross Slide Ø255mm. Swing In Gap Ø580mm. Distance Between Centres 1,000mm. Centre Height 205mm. Spindle Through Bore Ø52mm. Variable Speed Override (Digital Read Out) Speed Range 30-3,000rpm (Motor 5,5kW). Spindle Nose D1-6/CAMLOCK. Main Spindle Taper MT6. Cross Travel 210mm. Top Slide Travel 140mm. Longitudinal Feed 0.05-1.7mm/rev, Cross Feed Range 0.025-0.85mm/rev. Width Of Bed 250mm. Tailstock Quill Travel 120mm, Tailstock Taper MT4, Tailstock Quill 50mm. Threading Metric 0.2-14mm. i Tools Quick Action Toolholder SWBH Set B. JDMS-4X1 Tachometer. Voltage 400V. S/No. 30605 1771 (2013).
    View Item
